High Temperature Controlled Atmosphere Box Furnace Muffle For Alumina Ceramics Sintering
High Temperature Controlled Atmosphere Box Furnace Muffle For Alumina Ceramics Sintering
High Temperature Controlled Atmosphere Box Furnace Muffle For Alumina Ceramics Sintering
High Temperature Controlled Atmosphere Box Furnace Muffle For Alumina Ceramics Sintering
High Temperature Controlled Atmosphere Box Furnace Muffle For Alumina Ceramics Sintering
High Temperature Controlled Atmosphere Box Furnace Muffle For Alumina Ceramics Sintering
High Temperature Controlled Atmosphere Box Furnace Muffle For Alumina Ceramics Sintering
High Temperature Controlled Atmosphere Box Furnace Muffle For Alumina Ceramics Sintering
High Temperature Controlled Atmosphere Box Furnace Muffle For Alumina Ceramics Sintering
High Temperature Controlled Atmosphere Box Furnace Muffle For Alumina Ceramics Sintering
Specifications
Model Number :
HBF125-17
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Atmosphere :
Air
Effective Chamber Dimensions :
500*500*500mm(W*H*D)
Transport Package :
Wooden Packaging
Specification :
1770*2150*1250mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Production Capacity :
50 Sets/Year
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Supply Ability :
Customized
Description

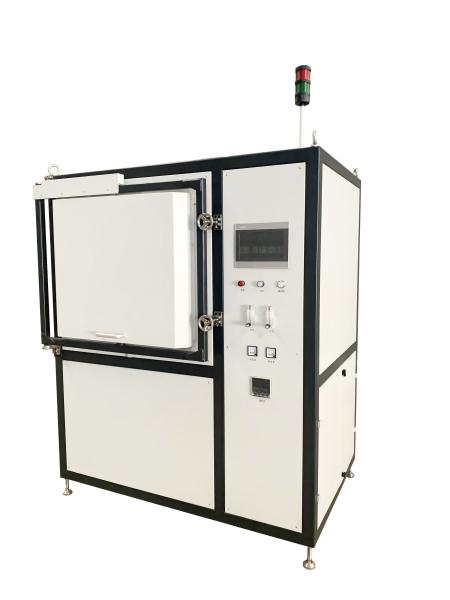

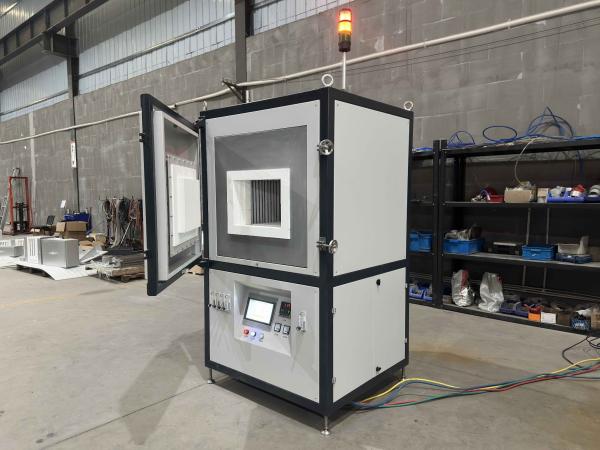

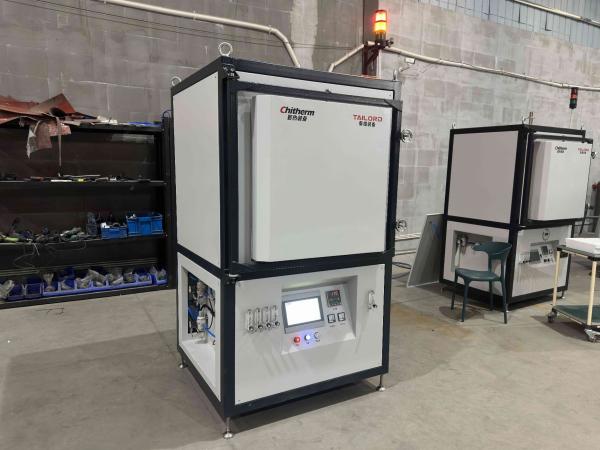

Chitherm Hbf125-17 High Temperature Box Furnace 500*500*500mm W*H*D Effective Chamber Dimensions Air Atmosphere

1. Applications:
Mainly used for zirconia ceramics, alumina ceramics, ferrites, magnetic materials, electronic components, ceramic filters in high temperature binder burn off and sintering process.

2. Mainly Specifics:
  1. Rated Temp.: 1600ºC
  2. Max Temp.: 1700ºC
  3. Effective Dimensions: 500 × 500 × 500mm(W×H×D)

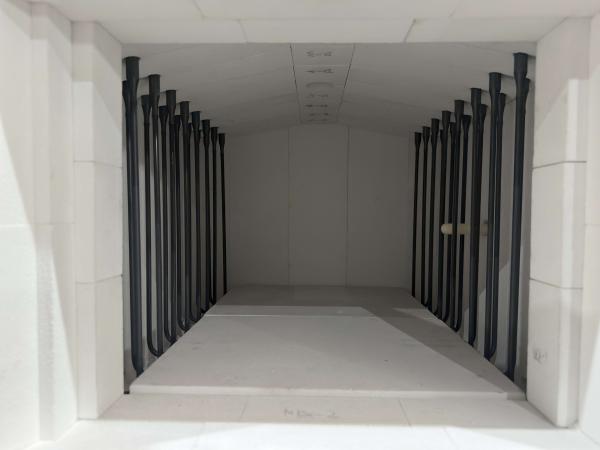

  4. Heating Method: U-shaped MoSi2 Heating Elements
  5. Process Atmosphere: Air
  6. Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
  7. Temperature Uniformity: better than ±5ºC (insulation 2 hours at 1600ºC test)
  8. Thermocouple: B Type
  9. Temperature control points: 1
  10. Temperature measurement points: 1 point
  11. Number of Temp. Profiles: 19×19 (the temperature controller can save 19 profiles, each profile can be set 19 steps)
  12. Exhaust: One exhaust port with auto cover
  13. Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection, over temperature heating power will turn off automatically
  14. Max Heating Power: 45kW
  15. Insulation Power: ≤25kW
  16. Heating Rate: RT - 1200ºC ≤ 5ºC/min, 1200 - 1700ºC ≤ 2ºC/min
  17. Surface Temperature Rise: ≤ 35ºC
  18. Weight: about 1100kg
  19. Furnace Dimensions: about 1770×2150×1250mm (W×H×D);
  20. Appearance Color: light gray
High Temperature Controlled Atmosphere Box Furnace Muffle For Alumina Ceramics Sintering
3. Delivery List
Item Note QTY
Basic Compositions Furnace 1 PC
Certificates of Inspection Furnace and major purchased components 1 Set
Technical Documents Furnace specifications, technical documents of major purchased components, etc 1 Set
Key Parts Heating Elements MoSi2 1 Set
Thermocouple THERMOWAY, B Type 1 PC
Temperature Controller CHINO 1 Set
Monitor Proface 10" touch screen 1 Set
Spares Heating Elements MoSi2 1 PC

4. Facility Requirements
4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Process air conditions: clean, dry, oil-free compressed air, pressure 0.2 - 0.4Mpa, gas consumption 4 - 12m3 /h.
4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 15m3 /h;
4.4 Ground requirements: level, no obvious vibration, bearing capacity > 500Kg/m2 .
4.5 Power conditions: capacity greater than 60kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.6 Installation site: 2500mm×3500mm×2500mm (W×H×D), installation area greater than 7m2.
