Specifications
Model Number :
HRF180-05
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Drying
Fuel :
Electric
Atmosphere :
Air
Effective Chamber Dimensions :
600*500*600mm(W*D*H)
Transport Package :
Wooden Packaging
Specification :
1110*1050*1820mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description
Electric Fuel Drying Curing or Degreasing for Semiconductors Electronic Components or Materials in 600*500*600mm Chamber
1. Overview

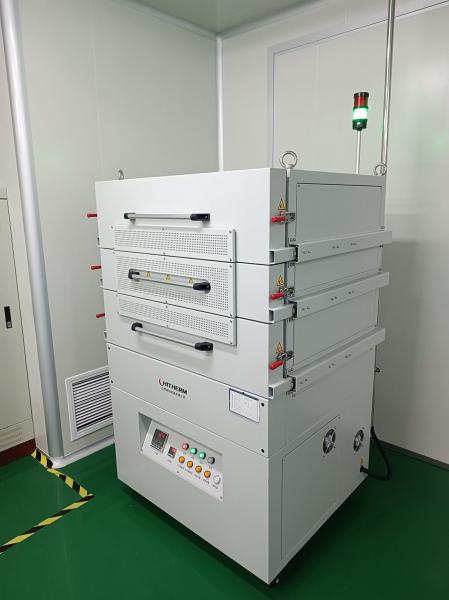

The HRF180-05 Rapid Annealing Furnace is primarily designed for processes such as drying, curing, or degreasing of semiconductors, electronic components, or materials. The equipment features a specially designed cage-type heating element, a centrifugal fan for air circulation, a double-layer stainless steel structure, full fiber insulation, and an imported single-loop intelligent temperature controller.

2. Performance Parameters
Model: HRF180-05
Operating Temperature Range: RT~400ºC
Maximum Temperature: 450ºC
Effective Chamber Size: 600×500×600 (W×D×H) mm
Hot Air Circulation System: Specially designed stainless steel high-pressure multi-wing fan, centrifugal air delivery, horizontal air flow
No-load Heating Rate: ≤5ºC/min
Exhaust Vent: 1
Door Opening Style: Left-opening
Heating Element: Specially designed cage-type heater

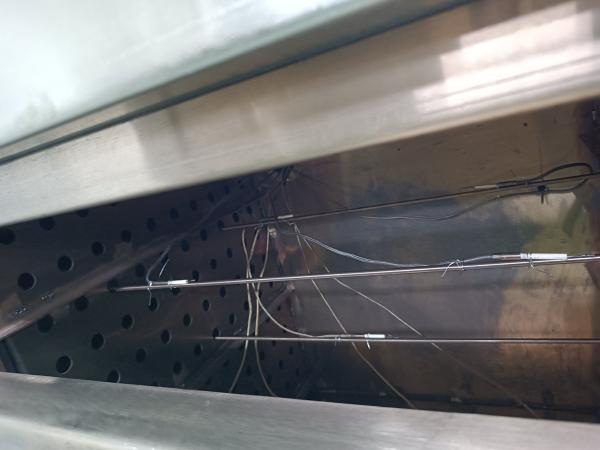

Thermocouple Type: K-type
Control Stability: ±1ºC

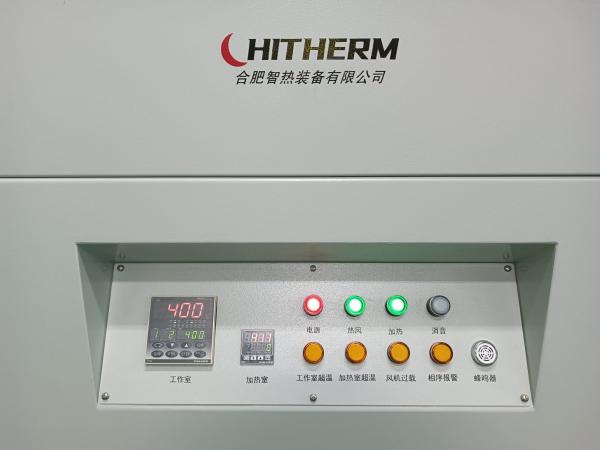

Temperature Control Points: Single point, controlled by a Japanese Shimaden intelligent programmable temperature controller with PID auto-tuning function, 4×10 segment curves
Temperature Uniformity: Better than ±5ºC
Loading Device: 3 stainless steel trays
Alarm and Protection: Over-temperature, thermocouple breakage, and other audible and visual alarms; interlock between heating and fan; independent temperature-sensing over-temperature protection for the heating chamber; motor phase loss protection; over-current protection; dual-color alarm indicator
Ambient Temperature: 0ºC~40ºC
Ambient Humidity: 0~50%RH
Surface Temperature Rise: ≤35ºC
Maximum Heating Power: 12kW
Power Supply: Three-phase, 380VAC, 50Hz
Overall Dimensions: 1110mm×995mm×1818mm (W×D×H)
Small Industrial Atmosphere Furnace For Semiconductors Drying Curing Degreasing
Small Industrial Atmosphere Furnace For Semiconductors Drying Curing Degreasing
Small Industrial Atmosphere Furnace For Semiconductors Drying Curing Degreasing



3. Delivery List
Item Note Qty.
Basic Components Furnace 1 unit
inspection certificate Certificate of major outsourced components 1 SET
Technical Documents Instructions, technical documents of the major outsourced parts, etc 1 SET
Key Components Heating Element 1 SET
Temperature Controller 1 SET
Circulation Fan 1 SET
Spare Parts SSR 1 pcs
Heating wire 1 PC
4. Normal Operating Conditions
1.Environmental Conditions: Temperature 0 to 40°C, humidity ≤80% RH, no corrosive gases, no strong air disturbance;
2. Ventilation System: Non-contact connection to the user's extraction system, with an extraction capacity greater than 5 m³/h;
3. Floor Requirements: Level, no significant vibration, load-bearing capacity >200 Kg/m²;
4. Power Requirements: Capacity greater than 16 kVA, 3-phase 5-wire, voltage 220/380V, frequency 50Hz. Live wires: Yellow, Green, Red; Neutral wire: Blue; Earth wire: Green/Yellow;
5. Installation Site: 2000mm × 1800mm × 3000mm (W × D × H), installation area should be greater than 4m².
