Specifications
Model Number :
HBF105-14
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Steel Molding
Fuel :
Electric
Effective Chamber Dimensions :
400*330*800mm(W*H*D)
Setter Plate :
Corundum-Mullite
Transport Package :
Wooden Package
Specification :
850*900*1200mm (W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description
Overview

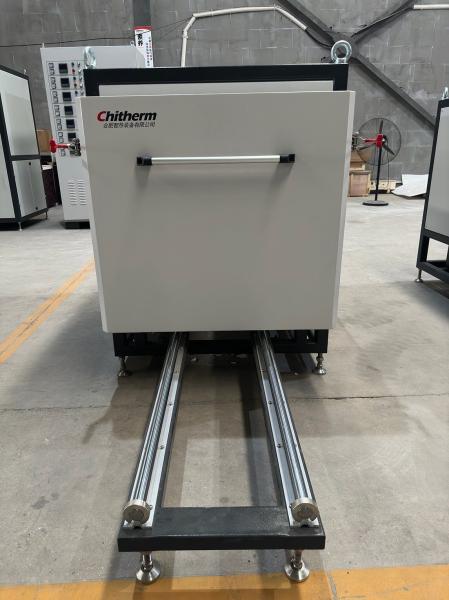

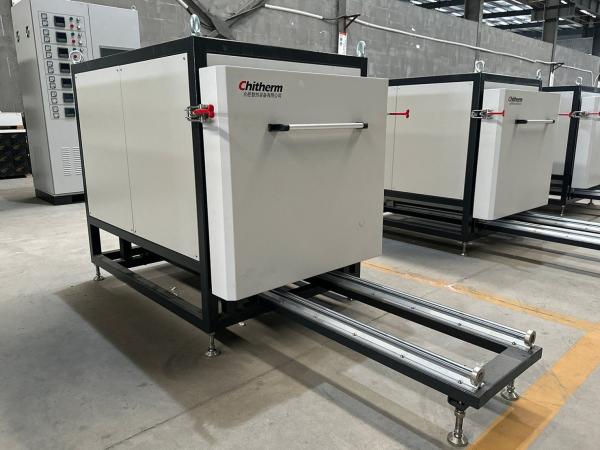

The HBF105-14 Type Sintering Furnace uses silicon molybdenum rods, which are resistant to acids and alkalis, with good uniformity and simple operation. It is suitable for various laboratories and small-batch production processes.
Vacuum Atmosphere High Temperature Box Furnace Sintering Electric Fuel
Main Parameters
Product Model: HBF105-14 Type Sintering Furnace
External Dimensions: 850 * 900 * 1200mm (W×H×D)
Effective Chamber Size: 400 * 330 * 800mm (W×H×D)
Rated Temperature: 1300ºC
Maximum Temperature: 1500ºC
Loading Device: Corundum Mullite Loading Plate
Heating Element: Silicon Molybdenum Rod
Temperature Control Stability: ±1
Chamber Temperature Uniformity: ±5ºC
Number of Temperature Control Segments: 40 segments
Alarm Protection: Interlock between heating and furnace door operation, over-temperature, thermocouple break, and low-pressure audible and visual alarms
Surface Temperature Rise: <35ºC
Number of Temperature Control Points: 1 point
Maximum Heating Power: 23kW
Cooling Method: Natural Cooling with the Furnace
Heating Rate: ≤10ºC/min
Equipment Weight: 500Kg
Installation Dimensions: 800 * 900 * 1200mm (D×W×H)
Power Supply: Capacity greater than 30kVA, three-phase five-wire 220/380V, 50Hz


Vacuum Atmosphere High Temperature Box Furnace Sintering Electric Fuel

Item pecifications Quantity Notes
Kiln Main Unit Primary heating system 1 set Core equipment for thermal process
Setter Plate Material: Corundum-Mullite 1 set High-temperature resistant carrier

Installation and Usage Conditions

  1. The equipment must be installed indoors, with an ambient temperature of -10ºC to 45ºC. The indoor environment should be free of flammable gases, corrosive gases, and steam.
  2. The equipment requires a floor area of no less than 4 square meters, with a working space length of no less than 2 meters, width of no less than 2 meters, and height of no less than 3 meters. The foundation should be sturdy and level, with the furnace weighing approximately 400kg.
  3. The power supply for this furnace must be a three-phase five-wire AC power line, 380±10%V, 50±2%Hz. This power line should be dedicated, and large power conversion equipment such as welding machines, electric furnaces, and metal cutting machines should not be connected to this distribution.
  4. The equipment must be reliably grounded.
