Nitrogen Gas Controlled Atmosphere Heat Treatment Industrial Sintering Furnace
Nitrogen Gas Controlled Atmosphere Heat Treatment Industrial Sintering Furnace
Nitrogen Gas Controlled Atmosphere Heat Treatment Industrial Sintering Furnace
Nitrogen Gas Controlled Atmosphere Heat Treatment Industrial Sintering Furnace
Nitrogen Gas Controlled Atmosphere Heat Treatment Industrial Sintering Furnace
Nitrogen Gas Controlled Atmosphere Heat Treatment Industrial Sintering Furnace
Nitrogen Gas Controlled Atmosphere Heat Treatment Industrial Sintering Furnace
Nitrogen Gas Controlled Atmosphere Heat Treatment Industrial Sintering Furnace
Nitrogen Gas Controlled Atmosphere Heat Treatment Industrial Sintering Furnace
Nitrogen Gas Controlled Atmosphere Heat Treatment Industrial Sintering Furnace
Nitrogen Gas Controlled Atmosphere Heat Treatment Industrial Sintering Furnace
Nitrogen Gas Controlled Atmosphere Heat Treatment Industrial Sintering Furnace
Specifications
Model Number :
BF216-11
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Steel Molding
Fuel :
Electric
Atmosphere :
Air
Effective Chamber Dimensions :
2000×2000×3000 (D×w×h)
Rated Temperature :
1000ºC
Maximum Temperature :
1100°c
Transport Package :
Wooden Packaging
Specification :
1520× 1520× 3000mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description
Electric Chitherm Mbf22-11n Medium-Temperature Atmosphere Box Furnace Maximum Temperature 1100°c Nitrogen/Air Capability
1, Equipment Name and Model:
MBF22-11N Medium-temperature Atmosphere Box Furnace

2,Technical Specifications and Basic Configuration
1. Rated Temperature: 1000°C;
2. Maximum Temperature: 1100°C;
3. Effective Size: 330mm×200mm×330mm (W×H×D);
4. Sagger Specification: 330mm×100mm×330mm (W×H×D), provided by the customer;

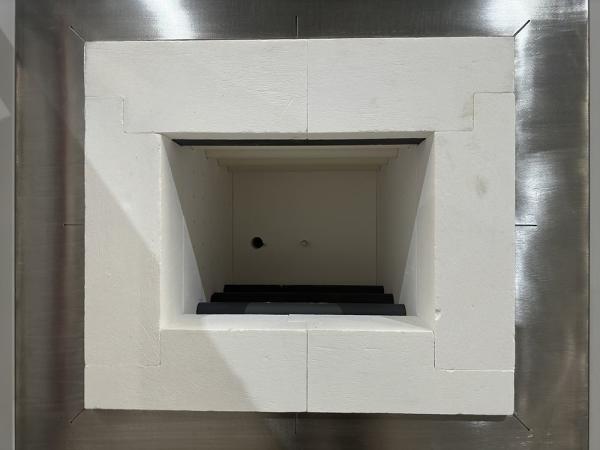

5. Loading Method: The sagger is supported by SiC roller rods and arranged in a double-layer and longitudinal double-row manner;
6. Heating Element: Silicon carbide rod is inserted inside the ceramic tube;
7. Thermocouple Type: N Graduation;
8. Number of Temperature Control Points: 1 point;

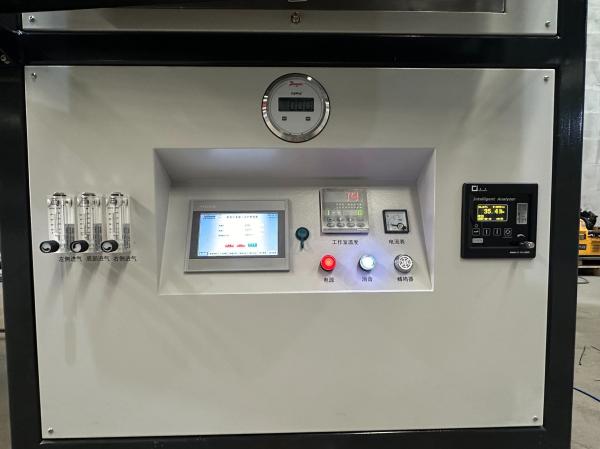

9. Temperature Control Method: Imported temperature control module, with a temperature control accuracy of ±1°C and a PID parameter self-tuning function;
10. Furnace Temperature Uniformity: ±5°C (tested in an empty furnace with saggers at a constant temperature of 1000°C, and a temperature measuring ring is placed at the center of each sagger);
11. Sintering Atmosphere: Nitrogen/Air;
12. Oxygen Content: Better than 10ppm + the oxygen content of the gas source;
13. Oxygen Detection: One micro oxygen analyzer is configured to monitor the oxygen content in the furnace chamber in real time;
14. Pressure Detection: A digital differential pressure gauge displays the pressure in the furnace in real time;
15. Exhaust Method: An exhaust chimney is designed at the top of the furnace chamber, and the exhaust volume can be manually adjusted;
16. Number of Program Steps: 4×16 steps;
17. Maximum Heating Power: 12kW;
18. Heating Rate: ≤5°C/min;
19. Temperature Rise on the Surface of the Furnace Body: ≤40°C;
20. Alarm and Protection: Interlock between the heating and the opening/closing action of the furnace door, audible and visual alarms for over-temperature, thermocouple breakage, and low air pressure;

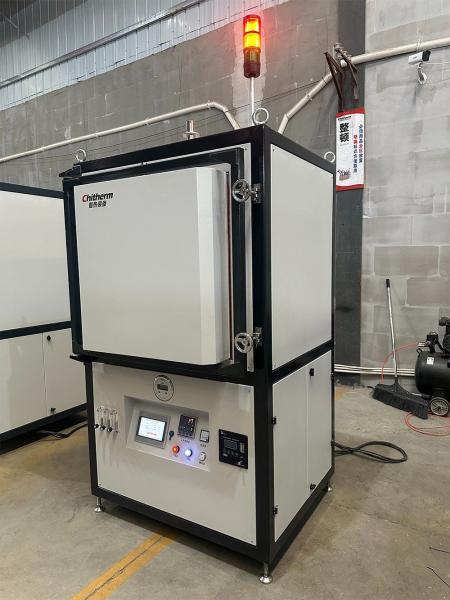

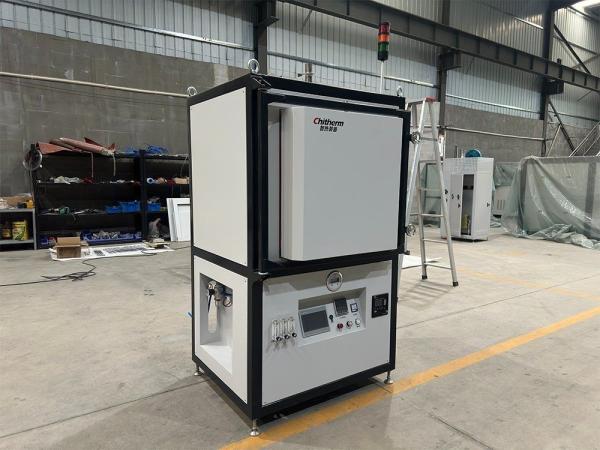

21. Reference Dimensions of the Appearance: 1300mm×1900mm×1160mm (W×H×D, excluding the chimney), and the specific dimensions shall be subject to the actual product.

Nitrogen Gas Controlled Atmosphere Heat Treatment Industrial Sintering Furnace
3. Delivery List
Item Note Qty.
Basic Components Furnace 1 PC
inspection certificate Certificate of major outsourced components 1 SET
Technical Documents Instruction Manual, Random Technical Documents of Each Main Outsourced Component, etc. 1 SET
Key Components Silicon Carbide Rod Inserted in the Ceramic Tube 1 SET
Temperature Control Instrument Shimaden (Japan) 1 PC
Oxygen Analyzer 1 PC
Spare Parts Silicon Carbide Rod 2 PCS
