Specifications
Model Number :
MBF40-10N
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Atmosphere :
Air
Effective Chamber Dimensions :
330*200*660mm(W*H*D)
Transport Package :
Wooden Packaging
Specification :
1150*1970*1460mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description
Electric Holding Furnace for Sintering Magnetic Materials in Mbf40-10n Atmosphere Box at 1000 ordm C from Electric Fuel
1. Applications:
Mainly used for electronic components, ceramic filters in high temperature binder burn off and sintering process.

2. Mainly Specifics:
  1. Rated Temp.: 850ºC
  2. Max Temp.: 1000ºC
  3. Effective Dimensions: 330 × 200 × 660mm(W×H×D)
  4. Heating Method: SiC Rods
  5. Process Atmosphere: Air
  6. Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
  7. Temperature Uniformity: better than ±5ºC (insulation 2 hours at 850ºC test)
  8. Thermocouple: Type N
  9. Heating Method:ceramic tube-encased silicon carbide rod
  10. Temperature control points: 3 points.
  11. Process Steps: 9 steps
  12. Oxygen Content Detection: Configure a micro-oxygen analyzer to monitor the oxygen content inside the furnace chamber in real time.
  13. Exhaust: One exhaust port with manual adjustment
  14. Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection, over temperature heating power will turn off automatically
  15. Max Heating Power: 25kW.
  16. Surface Temperature Rise: ≤ 40ºC.
  17. Furnace Dimensions: about 1150*1970*1460mm (W×H×D);
  18. Appearance Color: light gray

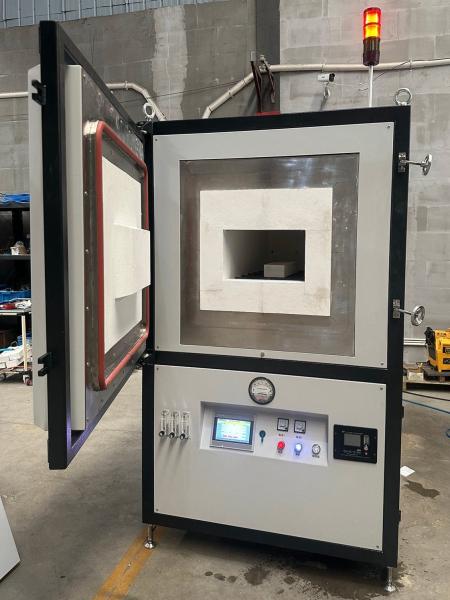

Vertical Industrial Electric Holding High Temperature Box Furnace For Sintering Magnetic Materials

1. - Furnace frame
2. - Chimney
3. - Furnace chamber
4. - Furnace door
5. - Heating element
6. - Sagger (a type of ceramic container used in kilns)
7. - Roller bar (used in kilns for moving ceramics during the firing process)

3. Delivery List
Item Note QTY
Basic Compositions Furnace 1 PC
Certificates of Inspection Furnace and major purchased components 1 Set
Technical Documents Furnace specifications, technical documents of major purchased components, etc 1 Set
Key Parts Heating Elements ceramic tube-encased silicon carbide rod 1 Set
Temperature Controller Azbil 1 Set
touch screen 1 Set
Spares silicon carbide rod 1 PC

4. Facility Requirements
1 .Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
2 .Process air conditions: 99.999% purity nitrogen, pressure 0.2 - 0.4Mpa, gas consumption 4 - 12m3 /h.
3 .Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 15m3 /h;
4 .Power conditions: capacity greater than 35kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
5 .Installation site: 2500mm×2000mm×3000mm (W×H×D), installation area greater than 5m2.
