Specifications
Model Number :
Hbf52-17o
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Fuel :
Electric
Atmosphere :
Air
Effective Chamber Dimensions :
300*200*550mm(W*D*H)
Transport Package :
Wooden Packaging
Specification :
1150*1970*1300mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description
Vertical High Temperature Box Furnace Hbf52-17o for a Wide Range of Industrial Applications and Customization
1. Applications:
Mainly used for zirconia ceramics, alumina ceramics, ferrites, magnetic materials, electronic components, ceramic filters in high temperature binder burn off and sintering process.

2. Mainly Specifics:
  1. Rated Temp.: 1650ºC
  2. Max Temp.: 1700ºC
  3. Effective Dimensions: 350 × 300 × 500mm(W×H×D)

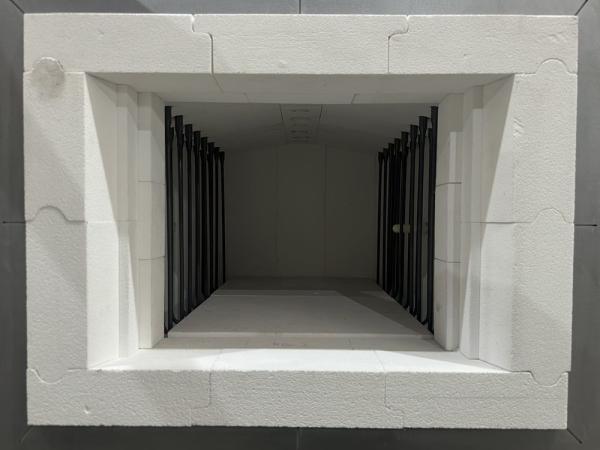

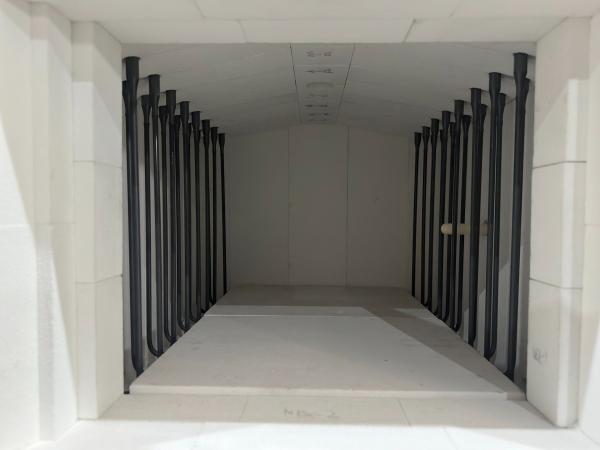

  4. Heating Method: U-shaped MoSi2 Heating Elements
  5. Process Atmosphere: Air/Oxygen
  6. Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
  7. Temperature Uniformity: better than ±5ºC (insulation 2 hours at 1650ºC test)
  8. Thermocouple: B Type
  9. Temperature control points: 1
  10. Temperature measurement points: 1 point
  11. Number of Temp. Profiles: 4×16 steps
  12. Exhaust: One exhaust port with auto cover
  13. Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection, over temperature heating power will turn off automatically
  14. Max Heating Power: 25kW
  15. Insulation Power: ≤ 10kW
  16. Heating Speed: RT~1200ºC≤5ºC/min,1200~1700ºC≤2ºC/min
  17. Surface Temperature Rise: ≤ 35ºC
  18. Weight: about 900kg
  19. Furnace Dimensions: about 1620×1960×1220mm (W×H×D);
  20. Appearance Color: light gray
Vertical Box Inert Atmosphere Oven Nitrogen Furnace For Industrial
3. Delivery List
Item Note QTY
Basic Compositions Furnace 1 PC
Certificates of Inspection Furnace and major purchased components 1 Set
Technical Documents Furnace specifications, technical documents of major purchased components, etc 1 Set
Key Parts Heating Elements MoSi2 1 Set
Thermocouple THERMOWAY, B Type 1 PC
Temperature Controller Azbil/CHINO 1 Set
Monitor Proface touch screen 1 Set
Spares Heating Elements MoSi2 1 PC

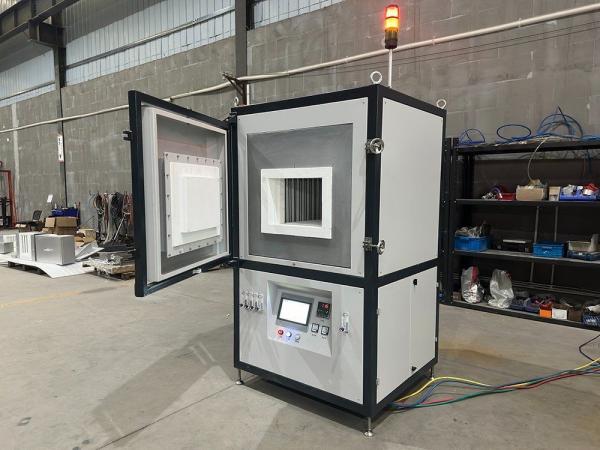

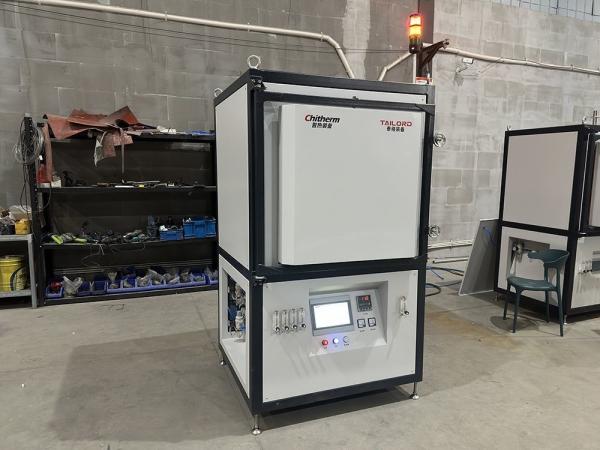

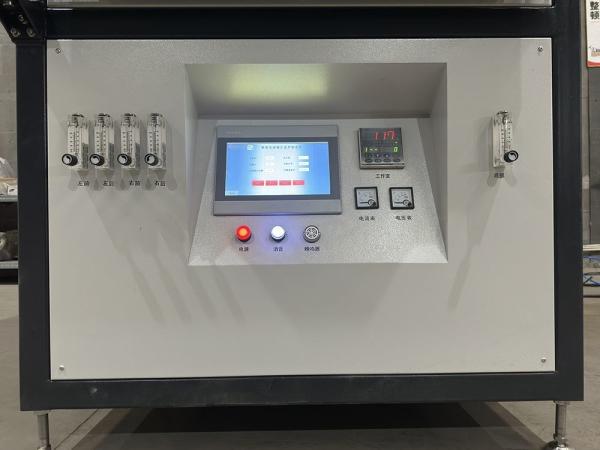

4.Picture Display
Vertical Box Inert Atmosphere Oven Nitrogen Furnace For IndustrialVertical Box Inert Atmosphere Oven Nitrogen Furnace For IndustrialVertical Box Inert Atmosphere Oven Nitrogen Furnace For Industrial
