Specifications
Model Number :
Hrf535-02n
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Drying
Fuel :
Electric
Atmosphere :
Nitrogen
Effective Chamber Dimensions :
850*700*900mm(W*H*D)
Transport Package :
Wooden Packaging
Specification :
1440*1930*1080mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description
Electric Holding Furnace Hrf535-02n Nitrogen Dryer 850*700*900mm W*D*H Drying Oven Hot Air for Industrial
1. Applications:
Application fields: Widely used for drying, curing, and other processes of electronic products and similar items under constant temperature and oxygen-free environments.

2. Mainly Specifics:
  1. Rated Temp.: RT+10 ~200ºC
  2. Effective Dimensions: 850×700×900mm(W×D×H)
  3. Heating Method: Custom-designed squirrel cage heater with built-in imported heating wire.
  4. Process Atmosphere: High-purity nitrogen gas can be introduced into the furnace chamber, with the inlet flow rate controlled by a glass rotameter (range: 24-240 LPM).
  5. Temperature Control Stability: ±1ºC
  6. Temperature Uniformity: better than ±3ºC (insulation 1 hour at 200ºC test)
  7. Thermocouple: Type K
  8. Temperature control points: 1
  9. Temperature monitoring points: 1 point
  10. Process Steps: 20 steps
  11. Exhaust: One exhaust port on top
  12. Alarm System: Audible and visual alarm protection against overtemperature, thermocouple break, motor overload, and other faults.
  13. Max Heating Power: 10kW
  14. Insulation Power: ≤ 5kW
  15. Surface Temperature Rise: <35ºC
  16. Furnace Dimensions: about 1550mm×1630mm×1050mm(W×H×D);
  17. Appearance Color: light gray

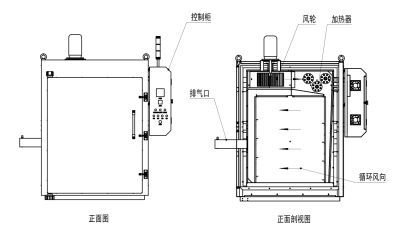

Electric Industrial Vacuum Drying Oven Muffle Furnace With Nitrogen Gas
3. Delivery List
Item Note QTY
Basic Compositions Dryer 1 PC
Certificates of Inspection Dryer and major purchased components 1 Set
Technical Documents Manual instructions, technical documents of major purchased components, etc 1 Set
Key Parts Heating Elements heating wire. 1 Set
Circulating fan 4300m3/h 1 PC
Temperature Controller 1 Set
Blower 5.5m3/min 1 Set
Monitor Touch screen 1 Set
Spares SSR 1 PC

4. Facility Requirements
4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Process air conditions: 99.999% purity nitrogen, pressure 0.2 - 0.4Mpa, gas consumption 5-15m3 /h.
4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 15m3 /h.
4.4 Ground requirements: level, no obvious vibration, bearing capacity >500Kg/m2 .
4.5 Power conditions: capacity greater than14kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.6 Installation site: 2500mm×2100mm×3000mm (W×H×D), installation area greater than 5m2.
