Facility Requirements
1) The equipment must be installed indoors in an environment with a temperature range of 0°C to 40°C and humidity ≤80% RH, free from flammable gases, corrosive gases, or vapors.

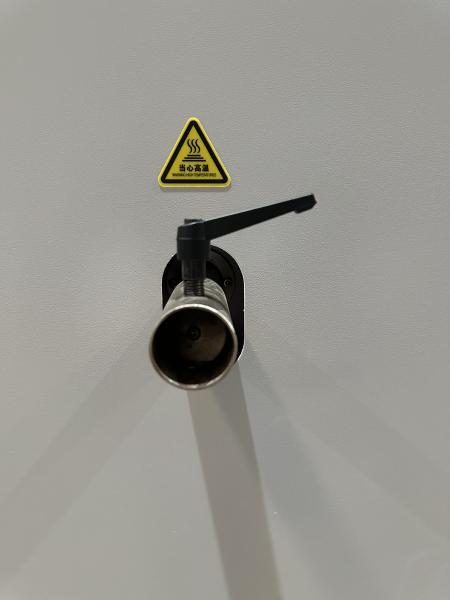

2) Ventilation system: Non-contact connection to the user's exhaust system, with an exhaust capacity greater than 10 m³/h.
3) The furnace must be powered by a three-phase five-wire AC power line, 380±10% V, 50±2% Hz. This power line is dedicated, and high-power conversion equipment such as welding machines, electric furnaces, or metal-cutting machine tools should not be connected to this distribution.
4) The equipment must be reliably grounded.
5) The working pressure of the gas source should be 0.2 to 0.4 MPa.

Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Its product range encompasses bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, which are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics. These furnaces are suitable for thermal treatment processes of materials including ITO targets, MLCC/HTCC/LTCC, ceramic filters, magnetic materials, CIM/MIM, and lithium battery cathodes and anodes, as well as various other new material processes such as pre-sintering, dewaxing, degreasing, sintering, drying, heat treatment, curing, and ceramization.
