Mainly used for zirconia ceramics, alumina ceramics, ferrites, magnetic materials, electronic components, ceramic filters in high temperature binder burn off and sintering process.

2. Mainly Specifics:

1. Rated Temp: 1600ºC
2. Max Temp: 1700ºC
3. Effective Dimensions: 500 × 500 × 500mm(W×H×D)

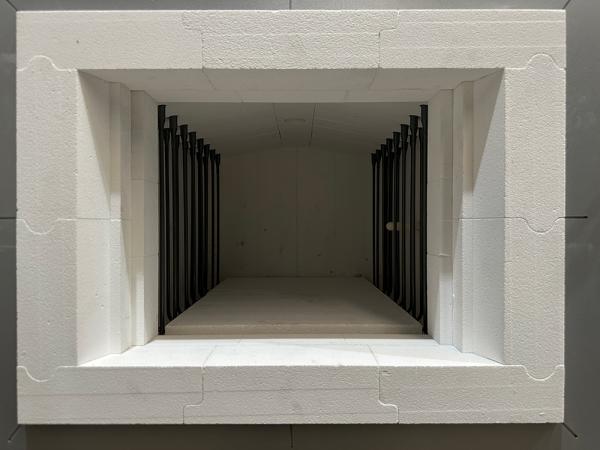

4. Heating Method: U-shaped MoSi₂ Heating Elements
5. Process Atmosphere: Air
6. Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
7. Temperature Uniformity: better than ±5ºC (insulation 2 hours at 1600ºC test)
8. Thermocouple: B Type
9. Temperature control points: 1
10. Temperature measurement points: 1 point
11. Number of Temp. Profiles: 19×19 (the temperature controller can save 19 profiles, each profile can be set 19 steps)
12. Exhaust: One exhaust port with auto cover
13. Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection, over temperature heating power will turn off automatically
14. Max Heating Power: 45kW
15. Insulation Power: ≤25kW
16. Heating Rate: RT - 1200ºC ≤ 5ºC/min, 1200 - 1700ºC ≤ 2ºC/min
17. Surface Temperature Rise: ≤ 35ºC
18. Weight: about 1100kg
19. Furnace Dimensions: about 1770×2150×1250mm (W×H×D);
20. Appearance Color: light gray

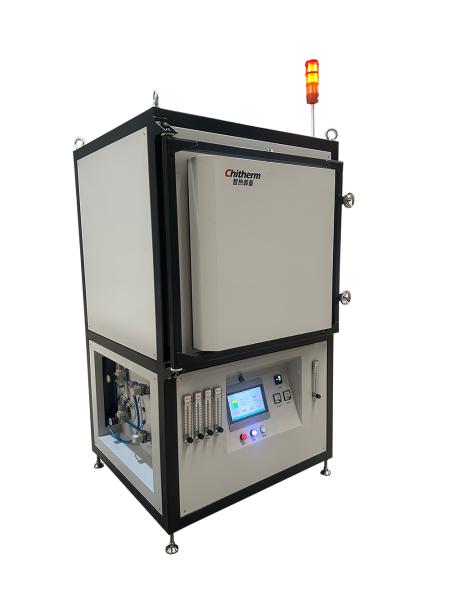

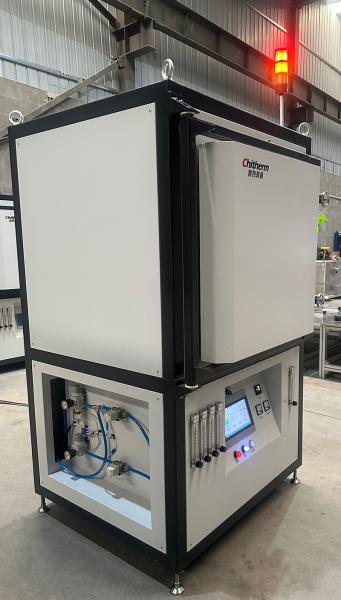

Detailed Photos

4. Facility Requirements
4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.

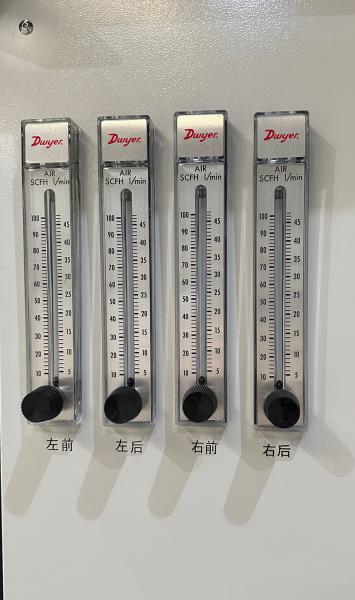

4.2 Process air conditions: clean, dry, oil-free compressed air, pressure 0.2 - 0.4Mpa, gas consumption 4 - 12m³ /h.
4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 15m³ /h;
4.4 Ground requirements: level, no obvious vibration, bearing capacity > 500Kg/m² .
4.5 Power conditions: capacity greater than 60kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.6 Installation site: 2500mm×3500mm×2500mm (W×H×D), installation area greater than 7m².
