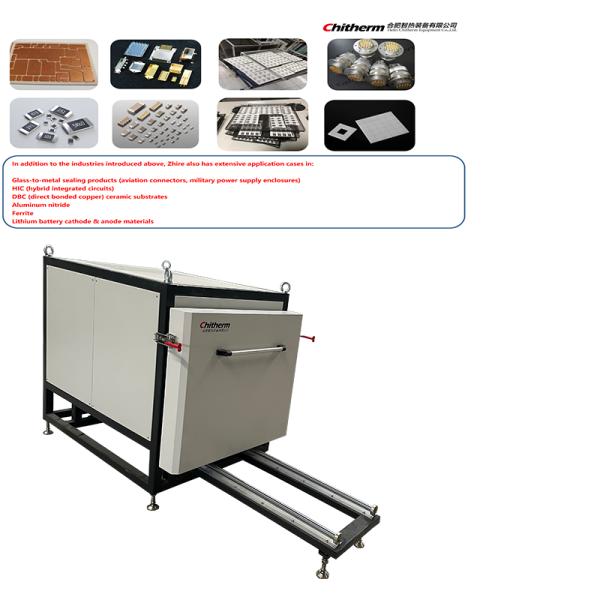

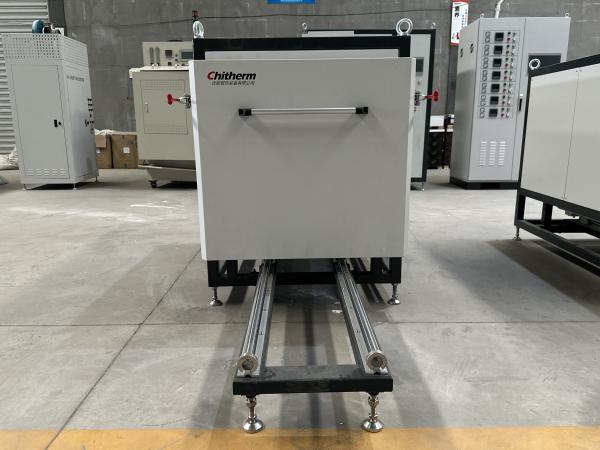

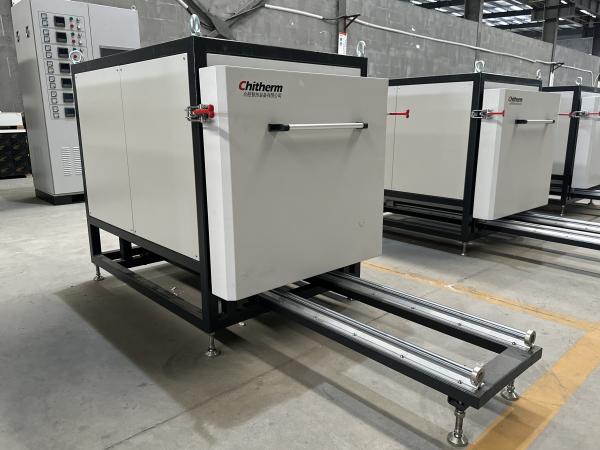

I. Main Parameters of Sintering Furnace
Basic Information
Model: HBF105-14
Application: Laboratory and small-scale production
Refractory Properties: Acid and alkali resistant, excellent temperature uniformity in the furnace chamber

Temperature Performance
Operating Temperature: 1300°C (standard)
Maximum Test Temperature: 1500°C (limit)
Temperature Stability: ±1°C
Furnace Chamber Temperature Uniformity: ±5°C

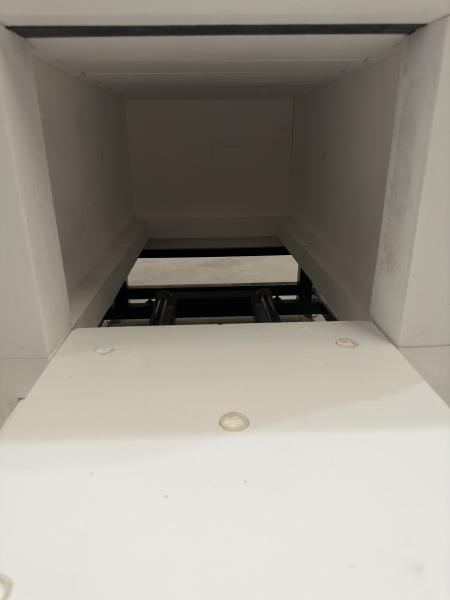

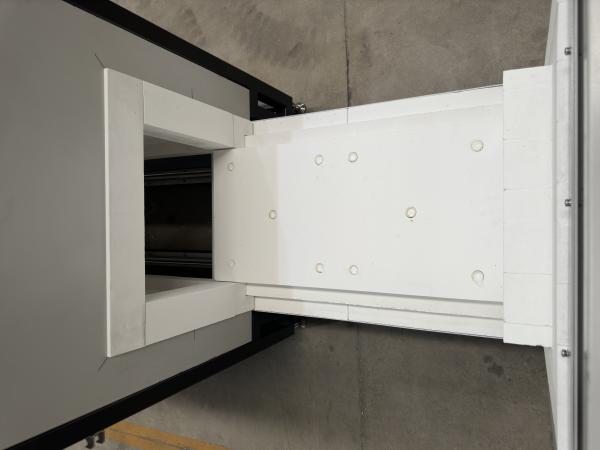

Furnace Chamber & Heating System
Effective Dimensions: 400×330×800mm (W×H×D)
Burning Plate Material: Corundum mullite
Heating Element: Silicon molybdenum rods (high-temperature resistant, oxidation-proof)

Safety & Protection
Alarm Functions: Over-temperature, thermocouple break, low-pressure audible and visual alarms
Interlock Design: Heating and furnace door switch linkage (anti-misoperation)
Surface Temperature Rise: <35°C (safety protection)

Electrical & Mechanical Parameters
Power: Maximum heating power 23kW
Power Supply: Three-phase 380VAC, 50Hz, 30kVA
Weight: 500kg
Installation Dimensions: 800×900×1200mm (D×W×H)

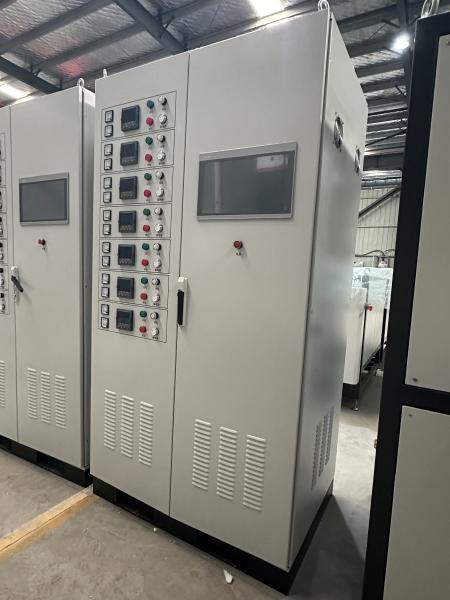

II. Temperature Control Cabinet Configuration
Control Channels
Total Channels: 5+2 (5 channels for sintering furnace, 2 spare channels)

Instrumentation & Control
Temperature Control Instrument: Eurotherm 3504 or imported from Japan (high-precision intelligent regulation)
Number of Instruments: 7 per cabinet (corresponding to 5+2 channels)
Control Method: Power and voltage regulation (precise temperature control)

Safety Features
Alarm Protection: PID auto-tuning, high-temperature upper limit alarm, thermocouple failure indication
Over-temperature Response: Audible and visual alarm + immediate heating cutoff

Physical Parameters
Dimensions: 800×1850×500mm (W×H×D)
Color: Light gray

III. Core Advantages
High Uniformity: ±5°C temperature field uniformity suitable for precision sintering processes.
Multiple Protections: Interlock design + triple alarms (over-temperature, thermocouple break, pressure) ensure safety.
Flexible Expansion: Spare control channels support future upgrades.
