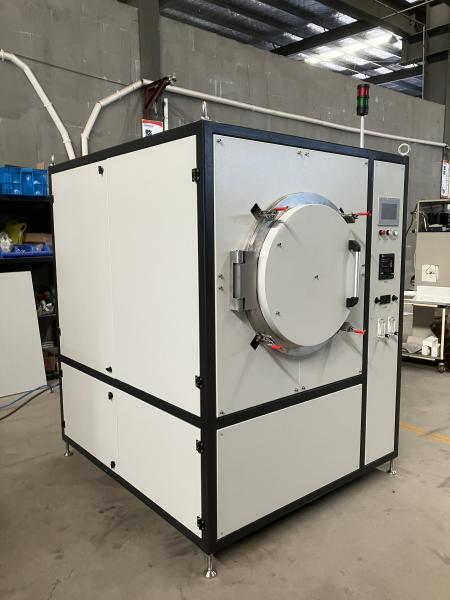

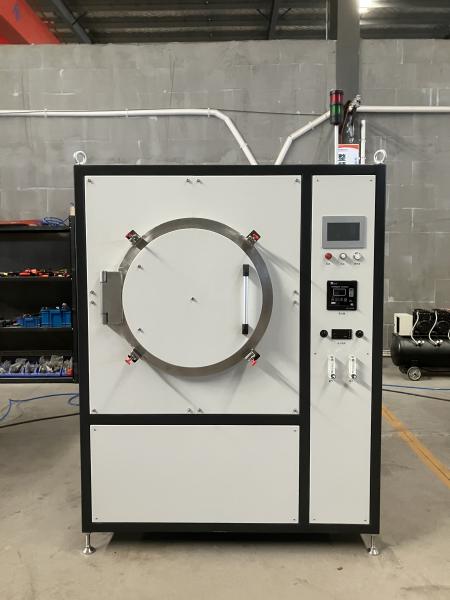

Model Number: HWF100-10NH
The dimensions of the tank are 630 × 900 (d × D).
The effective dimensions of the furnace chamber are 400 × 400 × 650 mm (W × H × D).
Maximum operating temperature: 1000°C
Long-term working temperature: 900°C
Heating method: FEC ceramic fiber heater
Refractory thermal insulation, alumina products
Cooling method: in-furnace cooling
Number of temperature control points: Three independent temperature control points at the front, middle, and rear.

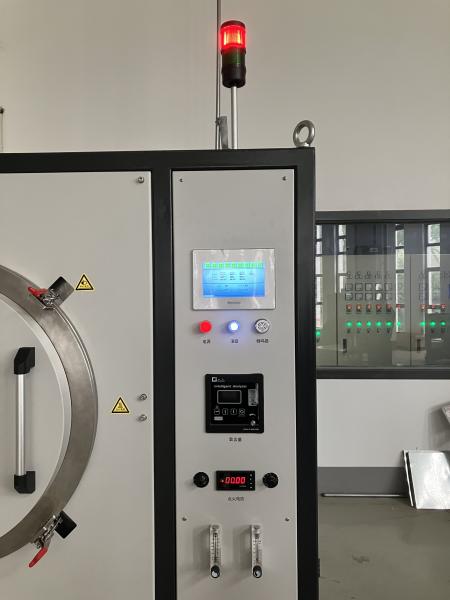

Temperature control instrument: Japanese YAMATA intelligent temperature controller
Number of program segments: 9
Operating power supply: 380±10%V power supply, 3-phase 5-wire, 50Hz
Maximum power: 30kW
Thermal insulation power: ≤15kW

1. Environmental Conditions: temp.: 0~40ºC, humidity ≤ 80%RH, no corrosive gas, no strong airflow disturbance
2. N₂ Conditions: 99.999% purity, working pressure: 0.2-0.4MPa, Max gas consumption 2-6 m³/h
3. H₂ Conditions: working pressure: 0.2-0.4MPa, Max gas consumption 0.2-0.6m³/h
4. Water Conditions: clean, no corrosive water, working pressure 0.1-0.3MPa, 1-3L/min
5. Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 10m³/h
6. Ground Requirements: horizontal, no obvious vibration, load-bearing> 500 kg/m²;
7. Power Condition(TBD): capacity > 40kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
8. Installation Site: 3200mm×2500mm×3000mm(D×W×H), with an installation area greater than 8m².
