Specifications
Brand Name :
Chitherm
Model Number :
Hrf800-06NO
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Customized
Supply Ability :
50 Sets/Year
Delivery Time :
Customized
Packaging Details :
Customized
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Fuel :
Electric
Atmosphere :
Nitrogen
Effective Chamber Dimensions :
800*1000*1000mm(W*H*D)
Transport Package :
Wooden Packaging
Specification :
1500*1630*1350mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Description

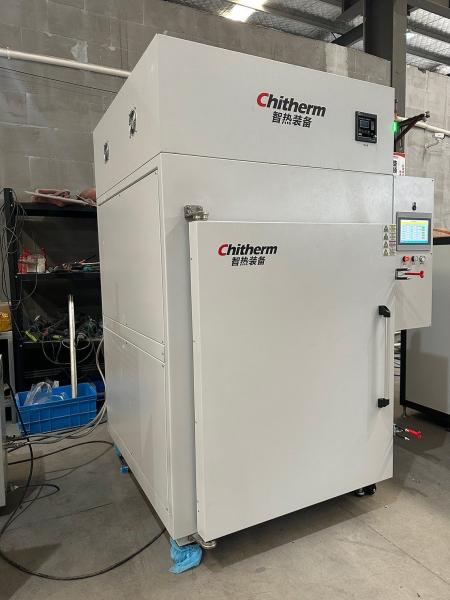

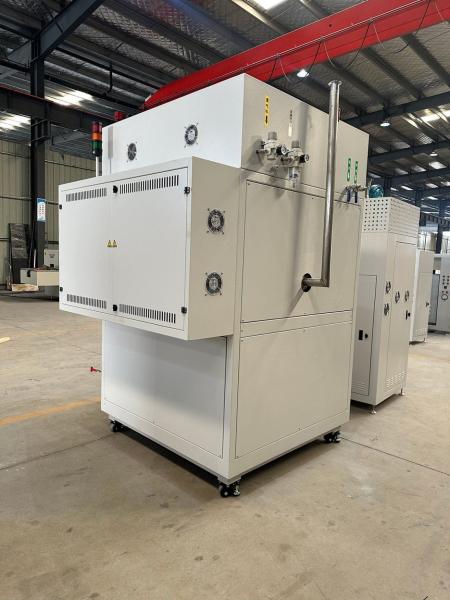

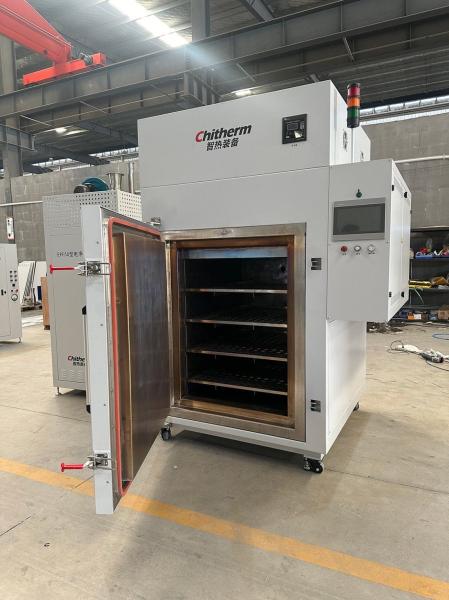

Nitrogen Atmosphere Hot Air Drying Furnace Hrf800-06no for Industrial Range of Applications and Performance


Application Field:
Widely used for debinding processes of ceramic substrates and related materials.

1.Technical Specifications & Basic Configuration

1.1 Rated Temperature: 550ºC.
1.2 Maximum Temperature: 600ºC.

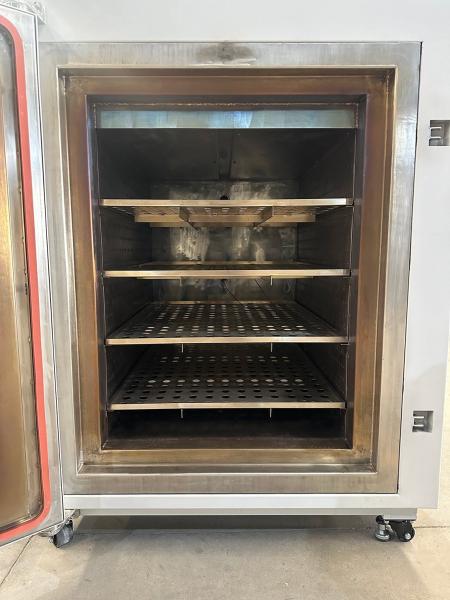

1.3 Chamber Dimensions: 800*1000*1000mm (W*H*D).
1.4 Chamber Load Capacity: 300kg.
1.5 Chamber Material: SUS316L.
1.6 Heating Elements: Customized Squirrel-Cage Heaters.
1.7 Temperature Stability: ±1ºC.
1.8 Temperature Uniformity: ±3ºC (Tested at 550ºC plateau, 1h stabilization under no-load conditions).
1.9 Thermocouple Type: Type K.
1.10 Working Atmosphere: Air/Nitrogen.
1.11 Program Steps: 40.
1.12 Temperature Control Points: 1
1.13 Monitoring Points: 1
1.14 Real-Time Monitoring Points: 5 (for actual chamber temperature tracking).
1.15 Alarm Protections: Audible/visual alarms for over-temperature and thermocouple failure.
1.16 Surface Temperature Rise: <35ºC
1.17 Maximum Heating Power: 24kW
1.18 Heat Preservation Power: ≤12kW
1.19 Overall Dimensions (Reference): 1500mm*1630mm*1350mm (W*H*D), excluding fan and chimney (final dimensions subject to product).
1.20 Equipment Weight: Approx. 1200kg.
1.21 Equipment Color: Light Gray.
Customizable Hot Air Debinding Furnace Industrial Drying And Debinding Hot Air Drying Oven

2.Equipment Delivery Checklist

Table 1: Delivery Summary

Name Key Contents Qty
Basic Components Furnace Main Unit
1 set
Electric Purification Furnace Max. capacity 50m³ 1 set
Inspection Certificate Certificates of major purchased components 1 set
Technical Documentation Manuals, technical files for purchased parts 1 set
Critical Components Heater Squirrel-Cage Type 1 set
Control Thermocouple Type K 1 pc
Measurement Thermocouple Type K 1 pc
Monitoring Thermocouples Type K 5 pcs
Temperature Control Module Japan-sourced 1 set
PLC Siemens 1 set
UPS 1kVA 1 set
Touch Screen 10-inch 1 set
Oxygen Analyzer CI-PC96 1 set
Circulation Fan Max. airflow 5000m³/h 1 set
Chiller Unit 0.5m³/h 1 set
Spare Parts Solid State Relay
1 pc
Heater
1 pc



3. Equipment Operating Conditions
3.1 Environmental Conditions: Temperature 0-40ºC, Humidity ≤80% RH, non-corrosive gases, no strong airflow disturbance.
3.2 Gas Source Requirements: Clean, dry, oil-free compressed air or high-purity nitrogen gas (purity 99.999%), inlet pressure 0.2-0.4 MPa, gas consumption 10-30 m³/h.
3.3 Exhaust System: Non-contact interface with user exhaust system, exhaust capacity >30 m³/h.
3.4 Floor Requirements: Level, free from significant vibrations, load-bearing capacity >600 kg/m².
3.5 Power Supply: Capacity >40 kVA, 3-phase 5-wire system (voltage 220/380V, frequency 50Hz). Phase lines: Yellow, Green, Red; Neutral line: Blue; Ground line: Yellow-Green.
3.6 Installation Space: 2000mm*2600mm*3000mm (W*D*H), installation area exceeding 6 m².
