1. Rated Temp: RT+10 ~200ºC
2. Max Temp: 300ºC
3. Effective Dimensions: 850×700×900mm(W×D×H)
4. Heating Method: Customized Heater
5. Process Atmosphere: Nitrogen
6. Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
7. Temperature Uniformity: better than ±3ºC (insulation 1 hour at 200ºC test)
8. Thermocouple: Type K
9. Temperature control points: 1
10. Temperature monitoring points: 1 point
11. Process Steps: 20 steps
12. Exhaust: One exhaust port on top

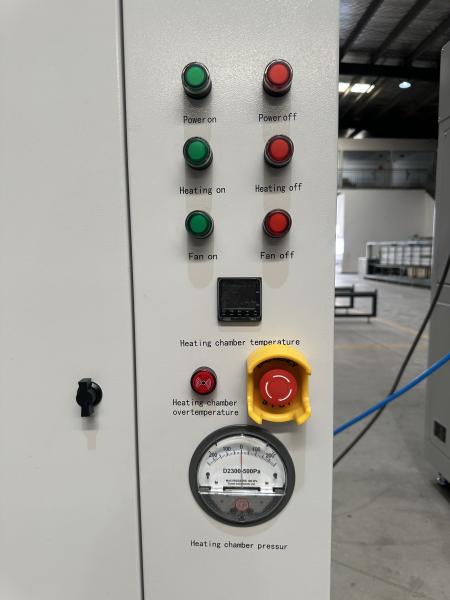

13. Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection
14. Max Heating Power: 10kW
15. Insulation Power: ≤ 5kW
16. Surface Temperature Rise: ≤ 35ºC
17. Weight: about 700kg
18. Furnace Dimensions: about 1400mm×1930mm×1080mm(W×H×D);
19. Appearance Color: light gray

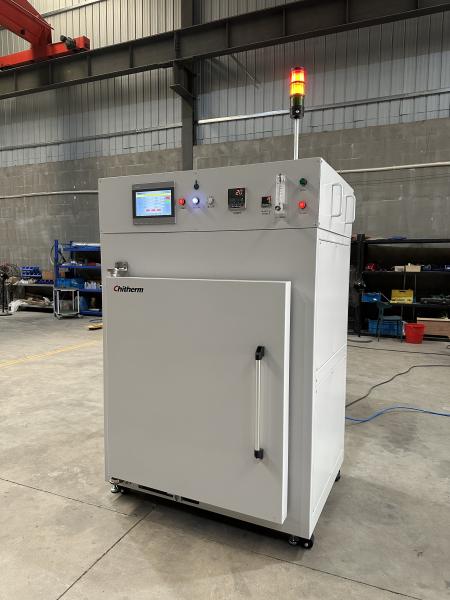

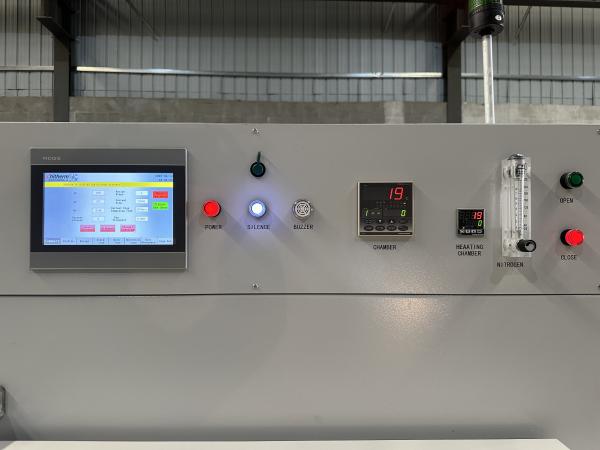

The HRF535-02 type hot air degassing furnace is controlled by a Japanese SHIDO intelligent program temperature controller with 4 × 16 heating curve segments, and the temperature curve adjustment is automatically controlled by setting. The temperature controller receives the signal detected by the thermocouple, triggers the power module through the modulation board, and uses a K-type thermocouple to measure the temperature. This instrument has a PID parameter self-tuning function, and the stability of single-point control can reach ±1°C. It also has multiple alarm protection functions such as high-temperature upper limit alarm and thermocouple failure indication.
