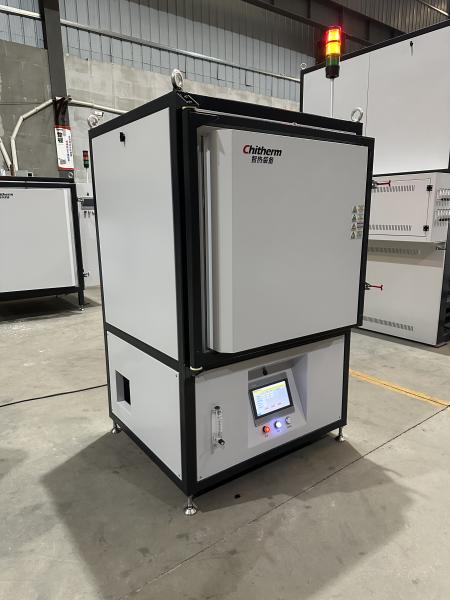

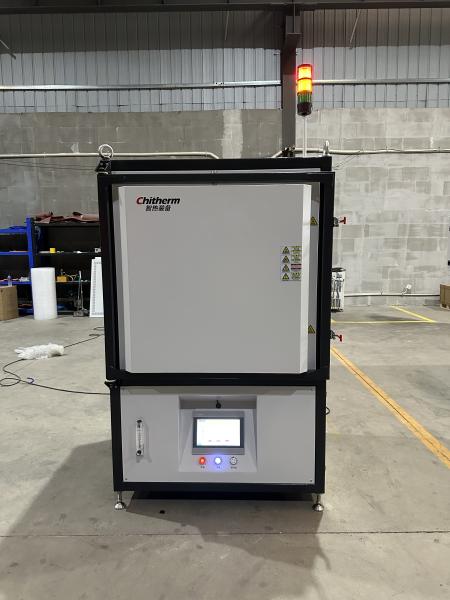

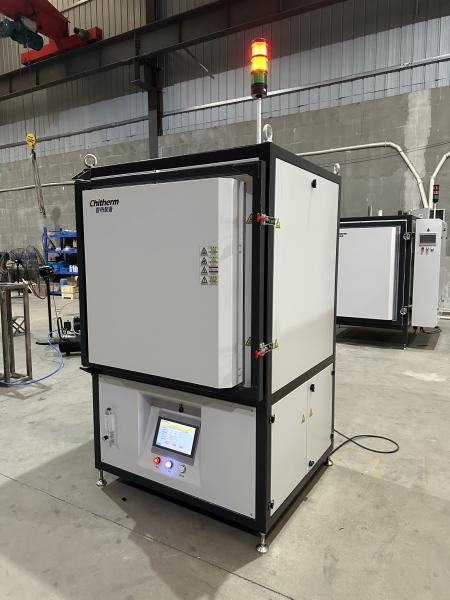

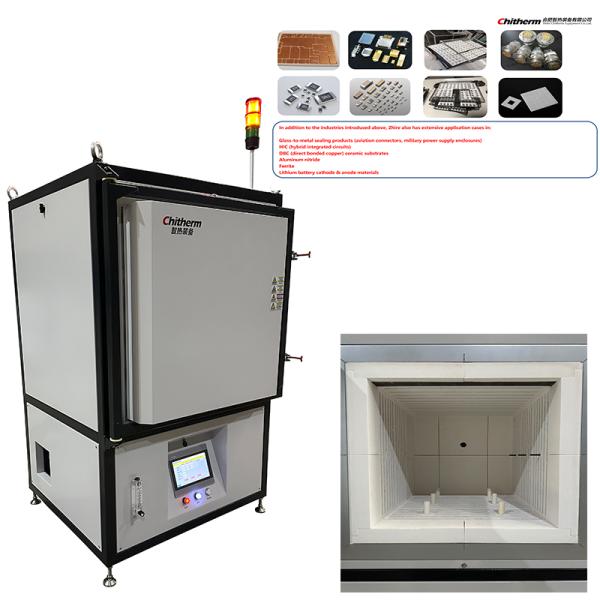

I. Equipment Name & Model: MBF64-11 Medium-Temperature Box Furnace

II. Application Fields: Primarily used for degassing, sintering, and curing processes of LTCC, glass, electronic components, electronic ceramics, and similar products.

Detailed Photos

Product Parameters

III. Technical Specifications & Basic Configuration
3.1 Rated Temperature: 1000°C;
3.2 Maximum Temperature: 1100°C;

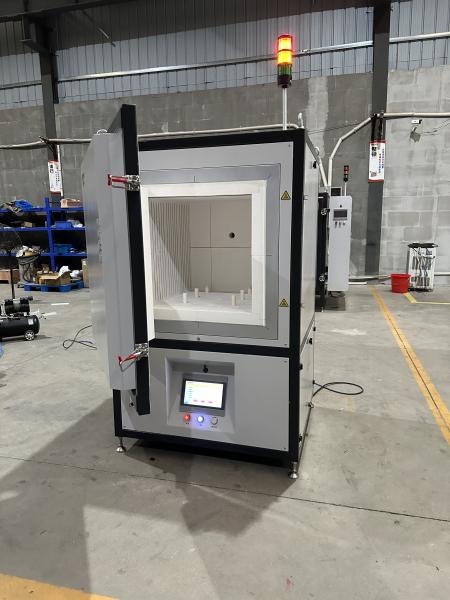

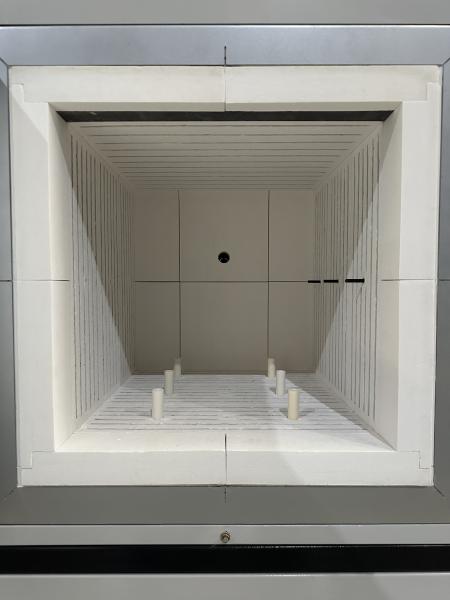

3.3 Furnace Chamber Dimensions: 600×600×600mm (W×H×D);
3.4 Effective Dimensions: 400×400×400mm (W×H×D);
3.5 Heating Elements: FEC ceramic fiber heating plates;
3.6 Maximum Heating Power: 24kW;
3.7 No-Load Holding Power: ≤12kW;
3.8 Heating Rate: ≤6°C/min;
3.9 Heating Layout: Four-sided heating (top, bottom, left, right);
3.10 Temperature Control Points: Three independent control points (front, middle, rear);
3.11 Temperature Control Stability: ±1°C, with PID parameter self-tuning function;
3.12 Temperature Uniformity: ±3°C within the effective area (tested at 1000°C with a crucible under constant temperature);
3.13 Thermocouple Type: K-type;

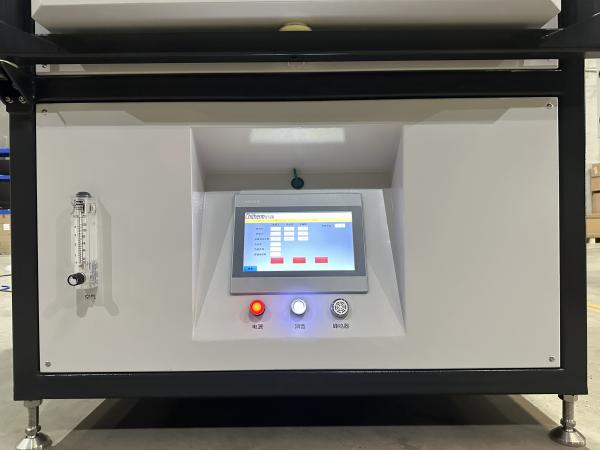

3.14 Temperature Control Instrument: Imported temperature control module with PID self-tuning function;
3.15 Program Steps: 20 steps (can be adjusted according to actual process requirements);

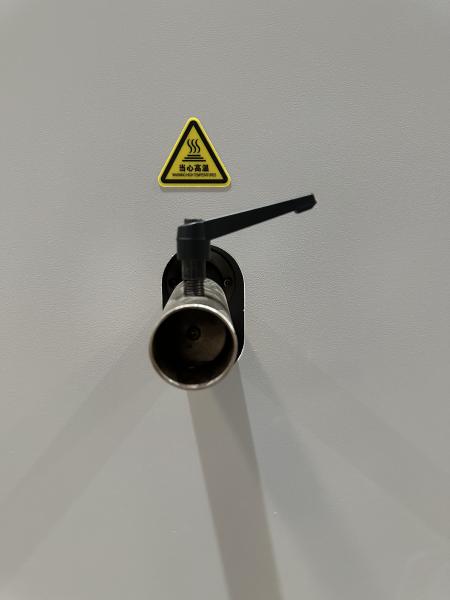

3.16 Exhaust Chimney: Exhaust port at the rear, manually adjustable in size;
3.17 Sintering Atmosphere: Air;
3.18 Alarm Protection: Audible and visual alarms for over-temperature, thermocouple breakage, etc., with power-off protection for over-temperature;
3.19 Surface Temperature Rise: <35°C;
3.20 Equipment Weight: Approximately 600kg;
3.21 Equipment Exterior Color: Light gray;
3.22 External Reference Dimensions: 1090×1790×1095mm (W×H×D).Name & Model: MBF64

Facility Requirements
1. Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.

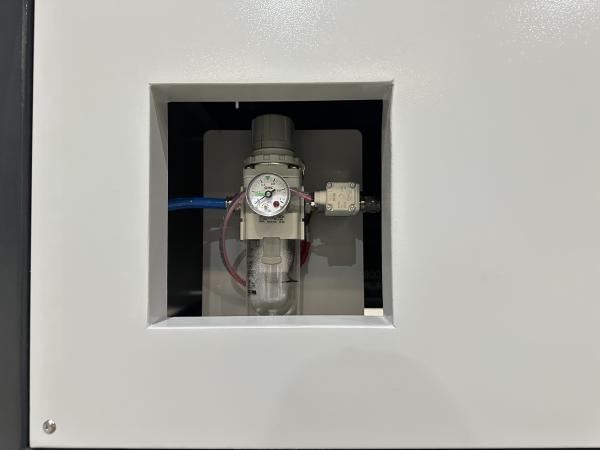

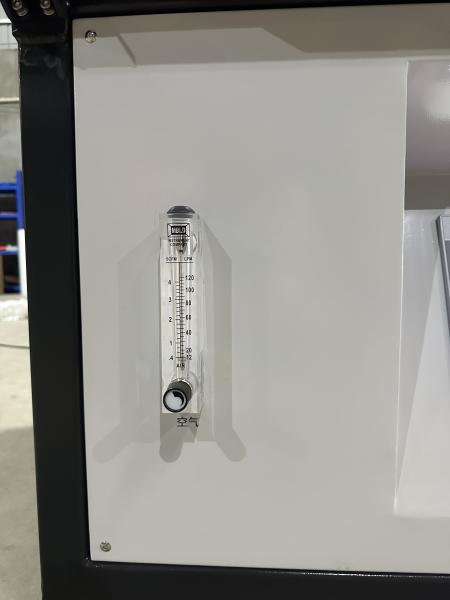

2. Process air conditions: clean, dry, oil-free compressed air, pressure 0.2 - 0.4Mpa, gas consumption 3 - 6m³ /h.
3. Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 10m³ /h;
4. Ground requirements: level, no obvious vibration, bearing capacity > 500Kg/m² .
5. Power conditions: capacity greater than 32kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
6. Installation site: 2200mm×2000mm×2500mm (W×H×D), installation area greater than 4.5m².
