Specifications
Model NO. :
HRF535-02 Type
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Drying
Fuel :
Electric
Atmosphere :
Nitrogen
Effective Chamber Dimensions :
850*700*900mm(W*H*D)
Rated Temperature :
Rt+10~200ºC
Heating Elements :
Custom-Made Squirrel-Cage Heaters
Control Points :
1 Point
Transport Package :
Wooden Packaging
Specification :
1250*1870*1076mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
50 Sets/Year
Package Size :
1600.00cm * 1550.00cm * 2250.00cm
Package Gross Weight :
709.000kg
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Shipping Cost :
Contact the supplier about freight and estimated delivery time.
  :
Support payments in USD
Secure payments :
Every payment you make on Made-in-China.com is protected by the platform.
Refund policy :
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Description
1. Applications:
Widely used in processes such as constant temperature drying, curing, and glue dispensing for electronic ceramics and other products.

2.Overview

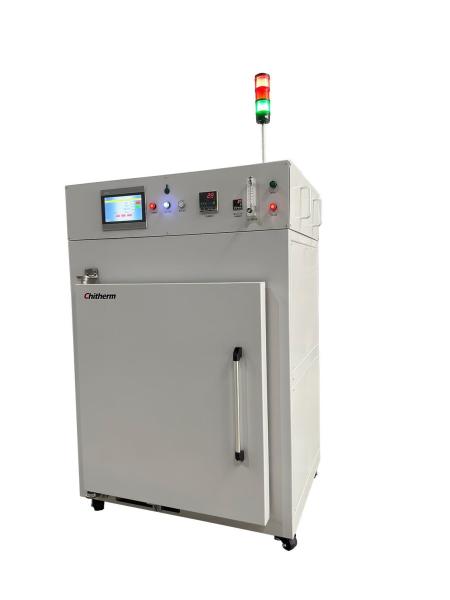

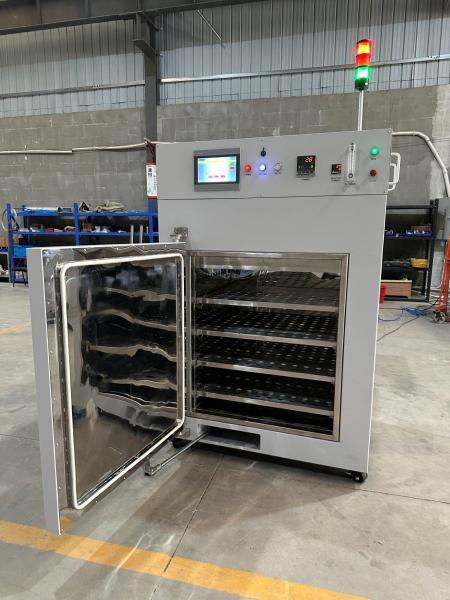

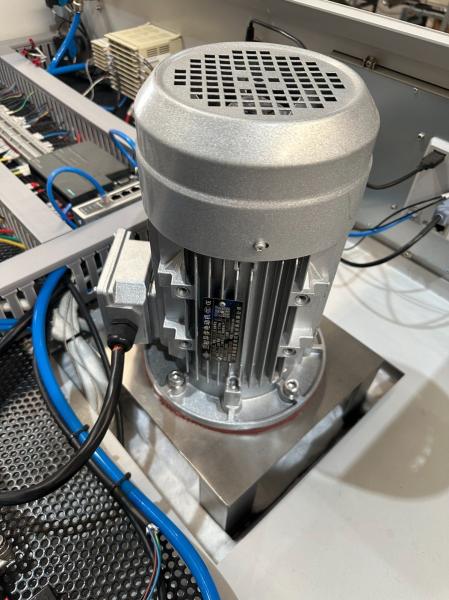

The HRF535-02 Hot Air Exhaust Resin Furnace is mainly designed for processes such as drying, curing, or resin exhaust of semiconductors, electronic components, or materials. The equipment is heated by stainless steel heating tubes, with an centrifugal fan for air supply, a double-layer stainless steel structure, full-fiber material insulation, and controlled by an imported single-loop intelligent temperature controller.

Industrial Hot Air Circulating Furnace with Vertical Place Style and Rated Temperature Rt 10-200 ordm
2. Mainly Specifics:
  1. Rated Temp: RT+10 ~200ºC
  2. Max Temp: 300ºC
  3. Effective Dimensions: 850×700×900mm(W×D×H)
  4. Heating Method: Customized Heater
  5. Process Atmosphere: Nitrogen
  6. Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
  7. Temperature Uniformity: better than ±3ºC (insulation 1 hour at 200ºC test)
  8. Thermocouple: Type K
  9. Temperature control points: 1
  10. Temperature monitoring points: 1 point
  11. Process Steps: 20 steps
  12. Exhaust: One exhaust port on top

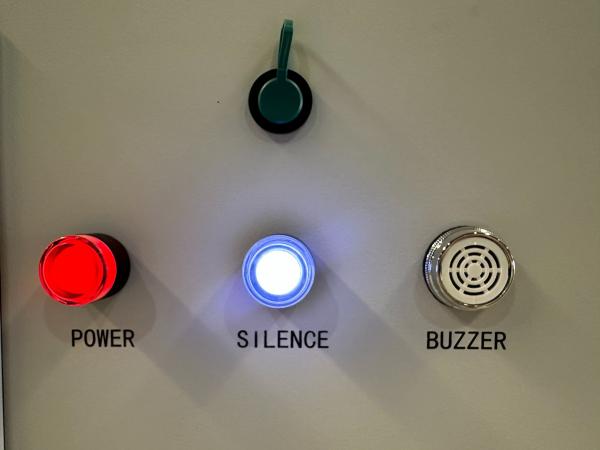

  13. Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection
  14. Max Heating Power: 10kW
  15. Insulation Power: ≤ 5kW
  16. Surface Temperature Rise: ≤ 35ºC
  17. Weight: about 700kg
  18. Furnace Dimensions: about 1400mm×1930mm×1080mm(W×H×D);
  19. Appearance Color: light gray
    Industrial Hot Air Circulating Furnace with Vertical Place Style and Rated Temperature Rt 10-200 ordm
    Industrial Hot Air Circulating Furnace with Vertical Place Style and Rated Temperature Rt 10-200 ordm
3. Delivery List
Item Note QTY
Basic Compositions Dryer 1 PC
Certificates of Inspection Dryer and major purchased components 1 Set
Waste Gas Incinerator 1 PC
Technical Documents Manual instructions, technical documents of major purchased components, etc 1 Set
Key Parts Heating Elements Customized Heater 1 Set
Thermocouple WATLOW/THERMOWAY, Type K 1 PC
Temperature Controller 1 Set
Monitor Touch screen 1 Set
Spares SSR 1 PC

4. Facility Requirements
4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Process air conditions: 99.999% purity nitrogen, pressure 0.2 - 0.4Mpa, gas consumption 5-15m3 /h.
4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 15m3 /h;
4.4 Ground requirements: level, no obvious vibration, bearing capacity >300Kg/m2 .
4.5 Power conditions: capacity greater than14kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.6 Installation site: 2500mm×2100mm×3000mm (W×H×D), installation area greater than 5m2.
