Specifications
Transport Package :
Wooden Packaging
Rated Temperature :
1000ºC
Supply Ability :
50 Sets/Year
Fuel :
Electric
Type :
Electric Holding Furnace
Usage :
Steel Molding
Place Style :
Vertical
Customization :
Available
Atmosphere :
Air
MOQ :
1
Packaging Details :
Customized
Specification :
1520× 1520× 3000mm(W*H*D)
Brand Name :
Chitherm
Effective Chamber Dimensions :
2000×2000×3000 (D×w×h)
Trademark :
Chitherm
Model Number :
MBF22-11N
Range of Applications :
Industrial
Place of Origin :
China
Delivery Time :
Customized
Origin :
China
HS Code :
8514101000
Certification :
ISO
Payment Terms :
Customized
Maximum Temperature :
1100°c
Price :
Negotiable
Description
MBF22-11N Medium Temperature Atmosphere Box Furnace _ 1100℃ Precision Atmosphere Muffle Furnace
Product Description

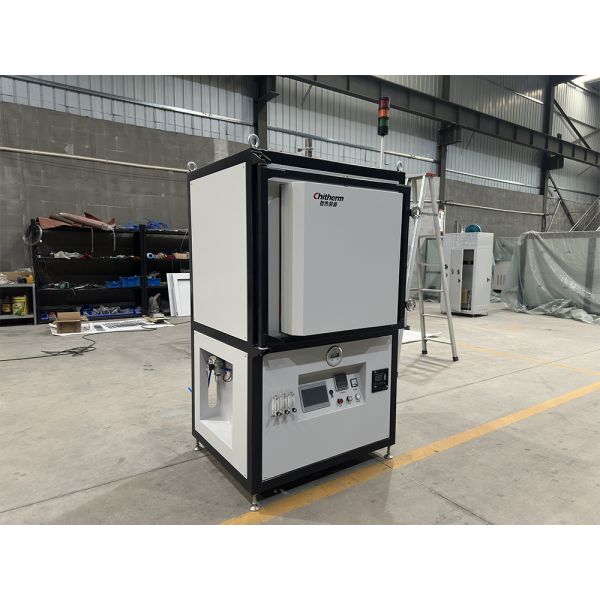

MBF22-11N Medium-temperature Atmosphere Box Furnace

Electric Chitherm MBF22-11N Medium-Temperature Atmosphere Box Furnace with Nitrogen/Air capability, designed for precision industrial heating applications up to 1100°C.

Technical Specifications
  • Rated Temperature: 1000°C
  • Maximum Temperature: 1100°C
  • Effective Size: 330mm×200mm×330mm (W×H×D)
  • Sagger Specification: 330mm×100mm×330mm (W×H×D)
  • Loading Method: SiC roller rods in double-layer, longitudinal double-row arrangement
  • Heating Element: Silicon carbide rod inserted in ceramic tube
  • Temperature Control: ±1°C accuracy with PID self-tuning
  • Furnace Temperature Uniformity: ±5°C
  • Sintering Atmosphere: Nitrogen/Air with oxygen content better than 10ppm
  • Maximum Heating Power: 12kW
  • Heating Rate: ≤5°C/min
MBF22-11N Medium Temperature Atmosphere Box Furnace _ 1100℃ Precision Atmosphere Muffle Furnace
Delivery Contents
Item Note Quantity
Basic Components Furnace 1 PC
Inspection Certificate Certificate of major outsourced components 1 SET
Technical Documents Instruction Manual, Random Technical Documents 1 SET
Key Components Silicon Carbide Rod in Ceramic Tube 1 SET
Temperature Control Instrument Shimaden (Japan) 1 PC
Oxygen Analyzer
1 PC
Spare Parts Silicon Carbide Rod 2 PCS
MBF22-11N Medium Temperature Atmosphere Box Furnace _ 1100℃ Precision Atmosphere Muffle Furnace MBF22-11N Medium Temperature Atmosphere Box Furnace _ 1100℃ Precision Atmosphere Muffle Furnace MBF22-11N Medium Temperature Atmosphere Box Furnace _ 1100℃ Precision Atmosphere Muffle Furnace
Operating Conditions
  • Environment: 0-40°C, ≤80%RH, no corrosive gases
  • Ventilation: Exhaust capacity >10m³/h
  • Gas Source: High-purity nitrogen (99.999%) or clean compressed air
  • Power: >16kVA, 3-phase 5-wire, 220/380V, 50Hz
  • Installation Space: 2000×2000×3000mm (D×W×H)
Frequently Asked Questions
What products does Chitherm offer?

We provide high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.

What pre-sales services does Chitherm provide?

We offer consultation services and highly customizable solutions to meet specific requirements.

What are Chitherm's core strengths?

As a high-tech enterprise, we possess patented technologies and core resources to deliver superior furnace solutions.
