Specifications
Brand Name :
Chitherm
Model Number :
Hrf216-07n
Place of Origin :
China
Description
The HRF216-07N debinding furnace is a hot air circulation box furnace specially designed for degreasing and binder removal of electronic ceramics. It is suitable for debinding processes of various precision components such as dielectric ceramic filters, LTCC, ceramic capacitors, ceramic circuit boards and piezoelectric ceramics. It also meets the requirements of annealing, decarburization and flattening treatment for magnetic materials and powder metallurgy products.

The furnace has a rated temperature of 650℃ and a maximum temperature of 700℃, with an effective working size of 600×600×600mm. It is ideal for small and medium batch production as well as R&D sample making, serving as an essential heat treatment equipment in the electronic ceramic industry chain.







Basic Info.

Model NO.
HRF216-07N
Range of Applications
Industrial
Type
Electric Holding Furnace
Usage
Ceramic Drying
Fuel
Electric
Atmosphere
Air/Nitrogen
Effective Chamber Dimensions
600*600*600mm(W*H*D)
Maximum Temperature
700ºC
Rated Temperature
650ºC
Transport Package
Wooden Packaging
Specification
1300*1710*1800mm(W*H*D)
Trademark
Chitherm
Origin
China
HS Code
8514101000
Production Capacity
50 Sets/Year

Packaging & Delivery

Package Size
131.00cm * 172.00cm * 181.00cm
Package Gross Weight
1000.000kg

Product Description

Product Description

The entire oven is primarily composed of a frame, a furnace chamber, a furnace door, a hot air circulation system, a atmosphere system, a water cooling system, and a temperature control system.

Detailed Photos

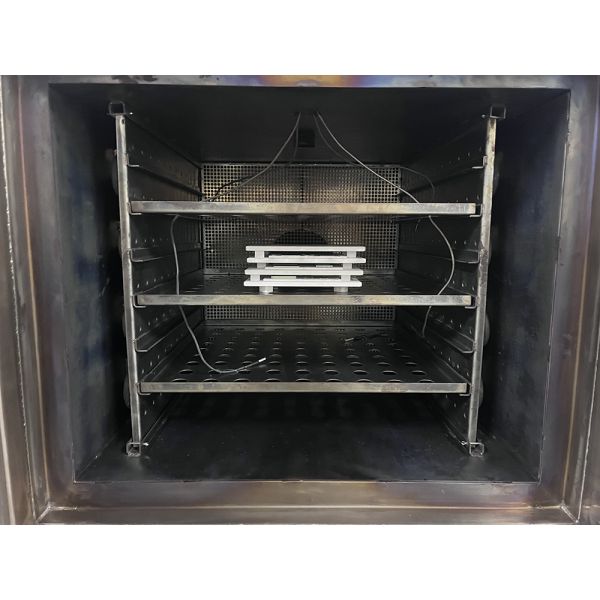

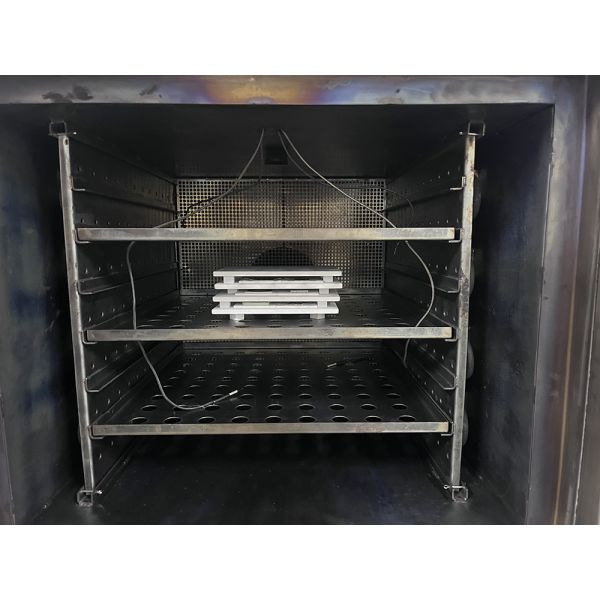

HRF216-07N Precision Debinding Furnace - Energy-saving Box Furnace with ±1℃ Temperature Control

Product Parameters

II. Technical indicators and basic configuration
2.1. Temperature rating: 650 ° C;
2. Maximum temperature: 700 ° C;
2.3. Effective dimensions: 600 x 600 x 600 mm (W x H x D);
2.4. Material handling mode: stainless steel plating;
2.5. Furnace material: SUS310S;
2.6. Heating elements: stainless steel heaters;
2.7. Temperature control degree of stability: ± 1 °C;
2.8 platform temperature uniformity: ± 5C (300-600C platform, constant temperature 1h empty furnace test);
2.9. Thermocouple type: K degree;
2.10. Temperature control instrument: Japan imports smart temperature control instruments;
2.11. Number of stages of control: 4 × 16 stages;
2.12. Control temperature points: 1 point to control the studio temperature;
2.13. Detection points: 1 point to monitor the heating room temperature
2.14. Exhaust chimney: 1 which can be manually adjusted for the size of the exhaust vent;
2.15. Sintering atmosphere: air or nitrogen
2.16. Alarm protection: sound and light alarm protection such as ultra-temperature, deadlock, etc.;
2.17. Motor protection: overcurrent protection of the fan;
2.18. Surface temperature increase: ≤ 35 ° C;
2.19. Maximum heating rate: 5C / min;
2.20. Heating power: 24kW;
2.21. Empty furnace insulation power: ≤ 12kW;
2.22. Equipment colour: light grey;
2.23. Total weight of equipment: about 1000 kg;
2.24. External reference dimensions: 1300 mm × 1710mm × 1800mm (W × D × H, excluding chimneys).
3. Delivery List

Item Note QTY
Basic Compositions Dryer
1 PC
Certificates of Inspection Dryer and major purchased components 1 Set
Technical Documents Manual instructions, technical documents of major purchased components, etc 1 Set
Key Parts Heating Elements Stainless Steel Heater 1 Set
Variable frequency drive
1 Set
Air circulator Water cooling fan 1 Set
Temperature Controller
1 Set
Monitor Touch screen 1 Set
Spares SSR
1 PC
Stainless steel heater
1 Set

4. Facility Requirements
4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Process air conditions: clean compressed air, pressure 0.2 - 0.4Mpa, gas consumption 3-7m3 /h.
4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 10m3 /h;
4.4 Ground requirements: level, no obvious vibration, bearing capacity >300Kg/m2 .
4.5 Power conditions: capacity greater than 32kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.6 Installation site: 2000mm×3000mm×3000mm (W×H×D), installation area greater than 6m2.
