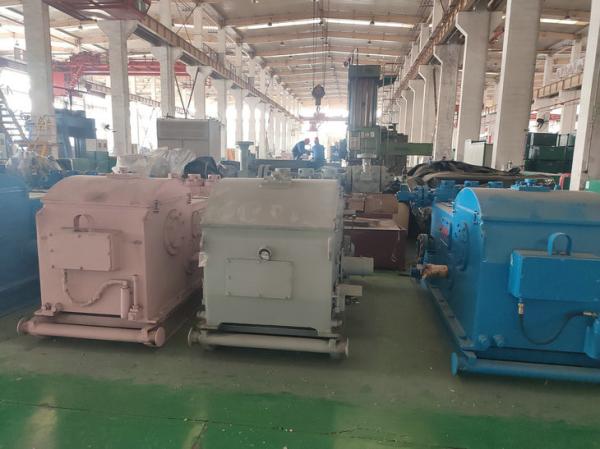

F1000 Oilfield Mud Pump 1000HP ISO Certificate Oilwell Triplex Pumps
F1000 Oilfield Mud Pump 1000HP ISO Certificate Oilwell Triplex Pumps
F1000 Oilfield Mud Pump 1000HP ISO Certificate Oilwell Triplex Pumps
F1000 Oilfield Mud Pump 1000HP ISO Certificate Oilwell Triplex Pumps
Specifications
Brand Name :
Hebei Pantu
Model Number :
F1000
Certification :
API 7K & ISO
Place of Origin :
China
MOQ :
1
Price :
10000USD~50000USD
Payment Terms :
L/C, T/T
Supply Ability :
20sets/month
Delivery Time :
45 days
Packaging Details :
3302mm*1671mm*1412mm(13ft*6.85ft*5.56ft)
Name :
F1000 Oilfield Mud Pump
Rated input Power : :
1000 HP
Stroke Per Minute: :
140 SPM
Stroke Length: :
254 mm (10")
Gear Ratio: :
4.207:1
Max. Working Pressure :
34.5MPa
Max. Working Pressure: :
34.5 MPa (5000 psi)
Other Name :
Oilwell Triplex Pumps
Description

F1000 Oilfield Mud Pump 1000HP Oilwell Triplex Pumps

F series Oilfield Mud Pump is applicable to the requirement of high pump pressure in oilfield and high displacement technology of good drilling with its solid and compact structure, small volume and out-standing operation performance.

F series Oilfield Mud Pump has a longer stroke and can be operated at a lower stroke, thus improving the water supplying performance
effectively and extending the lifetime of expendable parts in the fluid end greatly. The suction pulsation dampener has an advanced structure that is reliable to use and can make the pump realize its best suction performance.

Parameters of F1000 Oilfield Mud Pump

Liner Size in 6 3/4
6 1/2
6 1/4
6
5 1/2
 5 4 1/2
Discharge Pressure Mpa
16.4
17.6
19.1
20.7
24.6
29.8
34.5
psi
2380
2550

2770
3000
3570
4320
5000
Stroke per Minute
(SPM)		 Power
KW(HP)		 Displacement L/s(GPM)
150
799
(1071)
43.92
(696.1)
40.71
(645.2)
37.71
(597.7)
34.71
(550.1)
29.14
(461.8)
24.11
(382.1)
19.50
(309.0)
140
*746
(1000)
41
(649.8)
38
(602.3)
35.2
(557.9)
32.4
(513.5)
27.2
(431.1)
22.5
(356.6)
18.2
(288.4)
130
693
(929)
38.07
(603.4)
35.28
(559.1)
32.68
(517.9)
30.1
(477.0)
25.26
(400.3)
20.89
(331.1)
16.9
(267.8)
120
639
(857)
35.14
(556.9)
32.57
(516.2)
30.12
(477.4)
27.77
(440.1)
23.3
(369.3)
19.28
(305.5)
15.6
(247.2)
110
586
(786)
32.21
(510.5)
29.85
(473.1)
27.66
(438.4)
25.46
(403.5)
21.37
(338.7)
17.68
(280.2)
14.3
(226.6)
110
533
(714)
29.28
(464.0)
27.14
(430.1)
25.14
(398.4)
23.14
(366.7)
19.43
(307.9)
16.07
(254.7)
13
(206.0)
1
5.33
(7.14)
0.293
(4.64)
0.271
(4.29)
0.251
(3.97)
0.231
(3.66)
0.194
(3.07)
0.161
(2.55)
0.130
(2.06)
--Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency.　　　　　　　　
--The * present the recommendatory SPM and input power when the mud pump runs continuously.　　　　　　　　

Specification of F1000 Oilfield Mud Pump


Rated input Power: 746 kW (1000 HP)

Stroke Per Minute: 140 SPM
Stroke Length: 254 mm (10")

Gear Ratio: 4.207:1
Max. Working Pressure: 34.5 MPa (5000 psi)

Valve: API#6
Max.Liner Size : 171.4 mm (6 3/4")
Suction Inlet Flange: 304.8 mm (12") flange
Discharge Outlet Flange: 130.2 mm (5 1/8") flange,34.5 MPa (5000 psi)

Overall Dimension (L×W×H):4267×2350×1862 mm3(14×7.71×6.11 ft3)

Approx Weight: 16542 kg (36469 lb)
