Split Structure Drilling Mud Pump 1193kW F1600FTL Hydraulic Mud Pump
Split Structure Drilling Mud Pump 1193kW F1600FTL Hydraulic Mud Pump
Split Structure Drilling Mud Pump 1193kW F1600FTL Hydraulic Mud Pump
Split Structure Drilling Mud Pump 1193kW F1600FTL Hydraulic Mud Pump
Split Structure Drilling Mud Pump 1193kW F1600FTL Hydraulic Mud Pump
Split Structure Drilling Mud Pump 1193kW F1600FTL Hydraulic Mud Pump
Specifications
Brand Name :
Hebei Pantu
Model Number :
F1600FTL
Certification :
API 7K & ISO
Place of Origin :
China
MOQ :
1
Price :
10000USD~50000USD
Payment Terms :
L/C,T/T
Supply Ability :
20sets/month
Delivery Time :
45 days
Packaging Details :
3302mm*1671mm*1412mm(13ft*6.85ft*5.56ft)
Name :
Rig Mud Pump
Rated input Power: :
1193kW
stroke Per Minutes :
120 SPM
Stroke Length: :
12"
Gear Ratio: :
4.206:1
Valve :
API #7
Max. Working Pressure :
7500 psi
Overall Dimension (L×W×H) :
16.27×8.18×6.40 ft3
Description

F1600FTL Rig Mud Pump 1193 KW Hydraulic Mud Pump

Product Overview

  1. The frame of the F1600FTL Rig Mud Pump is a split structure. The maximum weight of a single module of the split pump is not more than 8818.5lb(4000kg). F1600FTL Rig Mud Pump can be transported by aircraft. lt meets the drilling needs of the jungle and other places where the traffic is inconvenient. The L-shaped liquid cylinder is adopted on the fluid end. The maximum working pressure can reach 51.7MPa(7500 psi).

Key Features

  1. Durable Construction – Fabricated with high-strength alloy steel for longer service life under harsh drilling conditions.
  2. High Pumping Efficiency – Optimized fluid end design ensures steady displacement and minimal pulsation.
  3. Flexible Power Options – Compatible with both electric motor and diesel engine drives.
  4. Easy Maintenance – Modular design allows quick replacement of fluid end parts, reducing downtime.
  5. Enhanced Lubrication System – Combination of splash and forced lubrication for extended bearing life.
  6. API & ISO Compliance – Designed and manufactured according to API Spec 7K and ISO 9001 standards.

Technical Specifications

Liner Size in
7 1/4
 7 6 3/4
6 1/2
6 1/4
6
5 1/2
 5
4 1/2
Discharge Pressure Mpa
22.0
23.6
25.4
27.4
29.7
32.2
38.3
46.3
51.7
psi
3190
3422
3683

3973

4307
4669
5555
6715
7500
Stroke per Minute
(SPM)		 Power
KW(HP)		 Displacement L/s(GPM)
120
1193
(1600)
48.71
(772.0)
45.41
(719.7)
41
(649.8)
39.15
(620.5)
36.20
(573.7)
33.36
(528.7)
28.03
(444.2)
23.17
(367.2)
18.77
(281.7)
110
1093
(1466)
44.65
(707.7)
41.63
(659.8)
38.07
(603.4)
35.89
(568.8)
33.18
(525.9)
30.58
(484.7)
25.69
(407.1)
21.24
(336.6)
17.20
(272.6)
100
994
(1333)
40.59
(643.3)
37.84
(599.7)
35.18
(557.6)
32.63
(517.1)
30.17
(478.2)
27.8
(440.6)
23.36
(370.2)
19.31
(306.0)
15.64
(248.1)
90
895
(1200)
36.53
(579.0)
34.06
(539.8)
31.67
(501.9)
29.36
(465.3)
27.15
(430.3)
25.02
(396.5)
21.02
(333.1)
13.38
(212.0)
14.08
(223.2)
50
497
(666)
20.29
(321.6)
18.92
(299.8)
17.59
(278.8)
16.31
(258.5)
15.08
(239.0)
13.9
(220.3)
11.68
(185.1)
9.65
(152.9)
7.82
(123.9)
1
9.94
(13.3)
0.406
(6.43)
0.3784
(6.00)
0.3518
(5.57)
0.3518
(5.57)
0.3263
(5.17)
0.278
(4.40)
0.2336
(3.70)
0.1931
(3.06)
0.1564
(2.48)
--Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency.　　　　　　　　
--The * present the recommendatory SPM and input power when the mud pump runs continuously.　　　　　　　　


F1600FTL Rig Mud Pump Specification :


Rated Input Power: 1193 kW(1600HP)

Stroke Per Minute: 120 SPM
Stroke Length: 304.8 mm (12")

Gear Ratio: 4.206:1
Max. Working Pressure: 52 MPa (7500 psi)

Valve: API#7
Max.Liner Size : 184 mm (7 1/4")
Suction Inlet Flange: 304.8 mm (12") flange
Discharge Outlet Flange: 103 mm (4 1/16") flange, 70 MPa (10000 psi)

Overall Dimension (L×WxH):4959×2493×1951 mm3(16.27×8.18×6.40 ft3)

Approx Weight: 26190 kg (57739 lb)

Applications

  1. Onshore and offshore oil drilling rigs
  2. Geothermal drilling projects
  3. Coalbed methane drilling
  4. Large-diameter water well drilling

Why Choose Our Mud Pump?

  1. Proven track record in Middle East, North America, Russia, and Africa oilfields.
  2. Global spare parts supply and after-sales service network.

Product photos

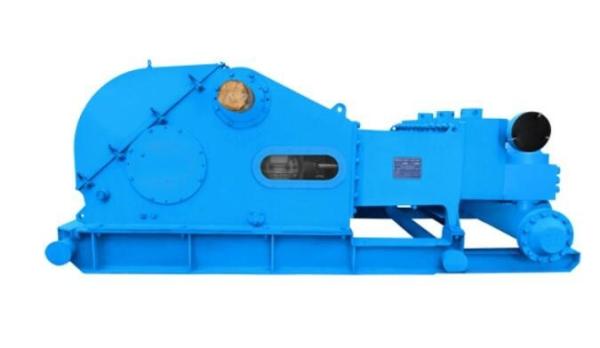

Split Structure Drilling Mud Pump 1193kW F1600FTL Hydraulic Mud Pump
