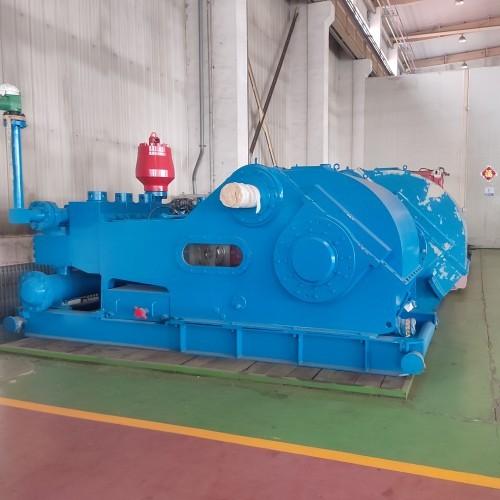

Mud Pump Triplex With Herringbone Gear
Mud Pump Triplex With Herringbone Gear
Specifications
Brand Name :
Hebei Pantu
Model Number :
Triplex Mud Pump
Certification :
API 7K & ISO
Place of Origin :
China
MOQ :
1
Price :
10000USD~50000USD
Payment Terms :
L/C, T/T
Supply Ability :
20sets/month
Delivery Time :
45 days
Packaging Details :
3302mm*1671mm*1412mm(13ft*6.85ft*5.56ft)
Name :
Triplex Mud Pump
Model :
F-800
Strokes per minute :
150
Stroke Length :
229mm(9")
Gear Ratio :
4.185:1
Max. Working Pressure :
34.5MPa
Gear Type :
Herringbone Gear
G.W. :
14000kgs
Description

F800 Single Acting Drilling Mud Pump Compact Structure High Pressure

Introduction

Drilling Mud Pump is manufactured under the standard of API Spec 7k, mud pump parts at the fluid end are interchangeable with the parts that are in conformity with API Spec.

Forced lubrication of the Drilling Mud Pump combined with splash lubrication to make the lubrication effect perfect;

The performance of the Drilling Mud Pump was greatly improved by the durable fluid end; and examination, mud pump repair, and mud pump maintenance are easier to make due to their independent structure.

Drilling Mud Pump Specs.

Liner Size in 6 1/2 6 1/4 6 5 1/2 5 4 1/2 4
Discharge Pressure Mpa 14.6 15.8 17.2 20.4 24.7 30.5 34.5
psi 2118 2290 2495 2915 3582 4424 5000
Stroke per Minute
(SPM)		 Power
KW(HP)		 Displacement L/s(GPM)
160 636
(853)		 39.21
(621.4)		 36.26
(574.7)		 33.41
(529.5)		 28.07
(444.9)		 23.2
(367.7)		 18.79
(297.8)		 14.85
(235.2)
*150 *597
(800)		 36.76
(582.6)		 34
(538.9)		 31.32
(496.4)		 26.32
(417.1)		 21.75
(344.7)		 17.62
(279.2)		 13.92
(220.6)
140 557.2
(693.3)		 34.3
(543.6)		 31.73
(502.9)		 29.23
(463.3)		 24.57
(389.4)		 20.3
(321.7)		 16.45
(260.7)		 12.99
(205.8)
130 517.4
(693.3)		 31.85
(504.8)		 29.47
(467.1)		 27.14
(430.1)		 22.81
(361.5)		 18.85
(298.7)		 15.27
(242.0)		 12.06
(191.1)
120 477.6
(640)		 29.4
(465.9)		 27.2
(431.1)		 25.06
(397.2)		 21.06
(333.8)		 17.4
(275.7)		 14.1
(223.4)		 11.14
(176.5)
110 437.8
(587.7)		 26.95
(427.1)		 24.93
(395.1)		 22.97
(364.0)		 19.3
(305.9)		 15.95
(252.8)		 12.92
(204.7)		 10.21
(161.8)
1 3.98
(5.33)		 0.245
(3.88)		 0.227
(3.59)		 0.209
(3.31)		 0.175
(2.77)		 0.145
(2.29)		 0.117
(1.85)		 0.093
(1.47)
--Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency.　　　　　　　　
--The * present the recommendatory SPM and input power when mud pump runs continuously.　　　　　　　　

Details of Drilling Mud Pump

Strokes per minute: 150
Stroke Length(mm/in); 229/9"
Max. Liner Dia(mm/in): 170/6 3/4"
Gear Type; Herringbone Gear
Valve Pot :API-6#
Gear Ratio :4.185:1
Dia of Suction Inlet(mm/in): 254/10"
Dia of Discharge Outlet; 5 1/8"flange 5000psi
Dia. of Pinion Shaft(mm/in): 177.8(7)
Max Pressure(Mpa/psi) : 34.5/5000
