F1300 Gas Powered Mud Pump Easy Repair 970 KW High Pressure Mud Pumps
F1300 Gas Powered Mud Pump Easy Repair 970 KW High Pressure Mud Pumps
F1300 Gas Powered Mud Pump Easy Repair 970 KW High Pressure Mud Pumps
F1300 Gas Powered Mud Pump Easy Repair 970 KW High Pressure Mud Pumps
Specifications
Brand Name :
Hebei Pantu
Model Number :
F1300
Certification :
API 7K & ISO
Place of Origin :
China
MOQ :
1
Price :
10000USD~50000USD
Payment Terms :
L/C, T/T
Supply Ability :
20sets/month
Delivery Time :
45 days
Packaging Details :
3302mm*1671mm*1412mm(13ft*6.85ft*5.56ft)
Name :
Mud Pump Oil And Gas
Rated input Power : :
970 kW (1300 HP)
series :
F series
Stroke Length: :
304.8 mm (12")
Gear Ratio: :
4.206:1
Max. Working Pressure: :
34.5 MPa
Max. Working Pressure :
5000 psi
Other Name :
Triplex Mud Pump
Description

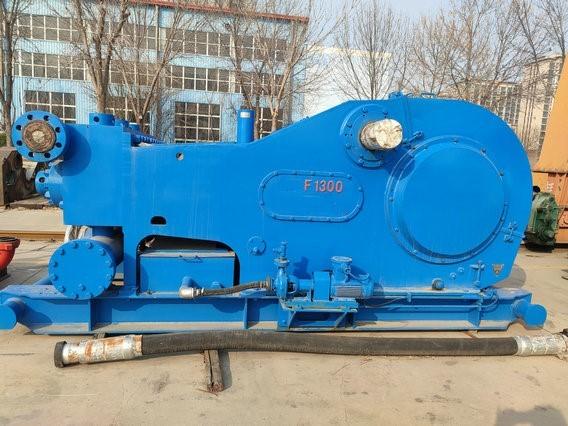

F1300 Oilfield Mud Pump Oil And Gas Field Triplex Mud Pump

Our F series Oilfield Mud Pump is designed and manufactured on the basis of the American F series mud pump strictly according to America Petroleum Institution API 7K Standard. All of its expendable parts are interchangeable with any other spare parts produced according to API standards. Therefore Oilfield Mud Pump is easy to repair and maintain internationally.

Parameters of F1300 Oilfield Mud Pump

Liner Size in 7 6 3/4
6 1/2
6 1/4
6
5 1/2
 5
Discharge Pressure Mpa
19.2
20.6
22.3
24.1
26.1
31.1
34.5
psi
2785
2988

3234

3495
3785
4510
5000
Stroke per Minute
(SPM)		 Power
KW(HP)		 Displacement L/s(GPM)
130
1050
(1408)
49.19
(779.6)
45.74
(725.0)
42.41
(672.2)
39.22
(621.6)
36.14
(572.8)
30.36
(481.2)
25.10
(397.8)
120
*970
(1300)
45.41
(719.7)
41
(649.8)
39.15
(620.5)
36.20
(573.7)
33.36
(528.7)
28.03
(444.2)
23.17
(367.2)
110
889
(1192)
41.63
(659.8)
38.07
(603.4)
35.89
(568.8)
33.18
(525.9)
30.58
(484.7)
25.69
(407.1)
21.24
(336.6)
100
808
(1083)
37.84
(599.7)
35.18
(557.6)
32.63
(517.1)
30.17
(478.2)
27.8
(440.6)
23.36
(370.2)
19.31
(306.0)
90
727
(975)
34.06
(539.8)
31.67
(501.9)
29.36
(465.3)
27.15
(430.3)
25.02
(396.5)
21.02
(333.1)
13.38
(212.0)
50
404
(541)
18.92
(299.8)
17.59
(278.8)
16.31
(258.5)
15.08
(239.0)
13.9
(220.3)
11.68
(185.1)
9.65
(152.9)
1
8.08
(10.8)
0.3784
(6.00)
0.3518
(5.57)
0.3518
(5.57)
0.3263
(5.17)
0.278
(4.40)
0.2336
(3.70)
0.1931
(3.06)
--Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency.　　　　　　　　
--The * present the recommendatory SPM and input power when the mud pump runs continuously.　　　　　　　　

F1300 Oilfield Mud Pump Specification :

Rated input Power : 1300 HP
Stroke Per Minute: 120 SPM
Stroke Length: 304.8 mm (12")
Gear Ratio: 4.206:1
Max. Working Pressure: 34.5 MPa (5000 psi)
Valve: API#7
Max.Liner Size : 180 mm(7")
suction Inlet Flange: 304.8 mm (12") flange
Discharge Outlet Flange: 130.2 mm (5 1/8") flange,34.5 MPa (5000 psi)
Overall Dimension (LxW×H):4685×2414×2003 mm3(15.37×7.92×6.57 ft3)
Approx Weight: 24572 kg (54172 lb)
