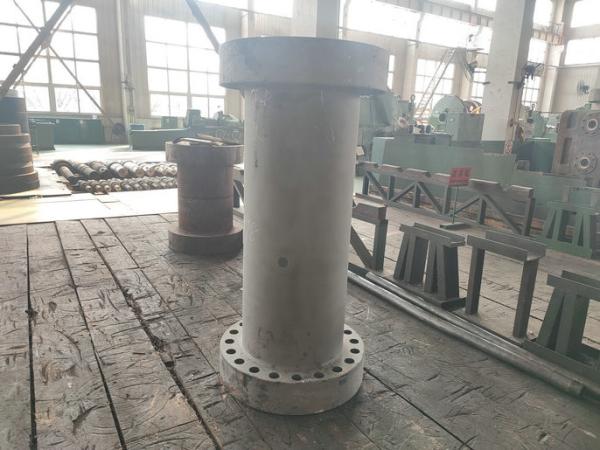

Medium Speed Electric Mud Pump Piston Mud Motor Pump In The Oil Field
Medium Speed Electric Mud Pump Piston Mud Motor Pump In The Oil Field
Medium Speed Electric Mud Pump Piston Mud Motor Pump In The Oil Field
Medium Speed Electric Mud Pump Piston Mud Motor Pump In The Oil Field
Medium Speed Electric Mud Pump Piston Mud Motor Pump In The Oil Field
Medium Speed Electric Mud Pump Piston Mud Motor Pump In The Oil Field
Specifications
Brand Name :
Hebei Pantu
Model Number :
F1300
Certification :
API 7K & ISO
Place of Origin :
China
MOQ :
1
Price :
10000USD~50000USD
Payment Terms :
L/C, T/T
Supply Ability :
20sets/month
Delivery Time :
45 days
Packaging Details :
3302mm*1671mm*1412mm(13ft*6.85ft*5.56ft)
Name :
Oilfield Mud Pump
Rated input Power : :
1300 HP
Stroke Per Minute: :
120 SPM
Stroke Length: :
304.8 mm (12")
Gear Ratio: :
4.206:1
Max. Working Pressure: :
34.5 MPa
Max. Working Pressure :
5000 psi
Other Name :
Pumping Unit
Description

F1300 970 kW Oilfield Mud Pump Pumping Unit

F-1300 Oilfield Mud Pump can be used to circulate the drilling fluids, clean the bottom of the hole, carry the drill cuttings out of the hole, cool, clean and lubricate the drill bit, and support the well in drilling operation in the oil and gas field, F-1300 Oilfield Mud Pump is a kind of horizontal medium-speed triplex single acting piston pump. F-1300 Oilfield Mud Pump mainly suits Rig 32-45 with drilling depths of 3200m to 4500m.

Parameters of F-1300 Oilfield Mud Pump

Liner Size in 7 6 3/4
6 1/2
6 1/4
6
5 1/2
 5
Discharge Pressure Mpa
19.2
20.6
22.3
24.1
26.1
31.1
34.5
psi
2785
2988

3234

3495
3785
4510
5000
Stroke per Minute
(SPM)		 Power
KW(HP)		 Displacement L/s(GPM)
130
1050
(1408)
49.19
(779.6)
45.74
(725.0)
42.41
(672.2)
39.22
(621.6)
36.14
(572.8)
30.36
(481.2)
25.10
(397.8)
120
*970
(1300)
45.41
(719.7)
41
(649.8)
39.15
(620.5)
36.20
(573.7)
33.36
(528.7)
28.03
(444.2)
23.17
(367.2)
110
889
(1192)
41.63
(659.8)
38.07
(603.4)
35.89
(568.8)
33.18
(525.9)
30.58
(484.7)
25.69
(407.1)
21.24
(336.6)
100
808
(1083)
37.84
(599.7)
35.18
(557.6)
32.63
(517.1)
30.17
(478.2)
27.8
(440.6)
23.36
(370.2)
19.31
(306.0)
90
727
(975)
34.06
(539.8)
31.67
(501.9)
29.36
(465.3)
27.15
(430.3)
25.02
(396.5)
21.02
(333.1)
13.38
(212.0)
50
404
(541)
18.92
(299.8)
17.59
(278.8)
16.31
(258.5)
15.08
(239.0)
13.9
(220.3)
11.68
(185.1)
9.65
(152.9)
1
8.08
(10.8)
0.3784
(6.00)
0.3518
(5.57)
0.3518
(5.57)
0.3263
(5.17)
0.278
(4.40)
0.2336
(3.70)
0.1931
(3.06)
--Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency.　　　　　　　　
--The * present the recommendatory SPM and input power when the mud pump runs continuously.　　　　　　　　

F-1300 Oilfield Mud Pump Specification :

Rated input Power : 970 kW (1300 HP)
Stroke Per Minute: 120 SPM
Stroke Length: 304.8 mm (12")
Gear Ratio: 4.206:1
Max. Working Pressure: 34.5 MPa (5000 psi)
Valve: API#7
Max.Liner Size : 180 mm(7")
suction Inlet Flange: 304.8 mm (12") flange
Discharge Outlet Flange: 130.2 mm (5 1/8") flange,34.5 MPa (5000 psi)
Overall Dimension (LxW×H):4685×2414×2003 mm3(15.37×7.92×6.57 ft3)
Approx Weight: 24572 kg (54172 lb)
