Compact Structure Drilling Mud Pump 970 KW Electric Mud Pump
Compact Structure Drilling Mud Pump 970 KW Electric Mud Pump
Compact Structure Drilling Mud Pump 970 KW Electric Mud Pump
Compact Structure Drilling Mud Pump 970 KW Electric Mud Pump
Compact Structure Drilling Mud Pump 970 KW Electric Mud Pump
Compact Structure Drilling Mud Pump 970 KW Electric Mud Pump
Specifications
Brand Name :
Hebei Pantu
Model Number :
F1300
Certification :
API 7K & ISO
Place of Origin :
China
MOQ :
1
Price :
10000USD~50000USD
Payment Terms :
L/C, T/T
Supply Ability :
20sets/month
Delivery Time :
45 days
Packaging Details :
3302mm*1671mm*1412mm(13ft*6.85ft*5.56ft)
Name :
Mud Pump Well Drilling
Rated input Power : :
970 kW (1300 HP)
Stroke Per Minute: :
120 SPM
Stroke Length: :
304.8 mm (12")
Gear Ratio: :
4.206:1
Max. Working Pressure: :
34.5 MPa
Max. Working Pressure :
5000 psi
Valve :
API#6
Description

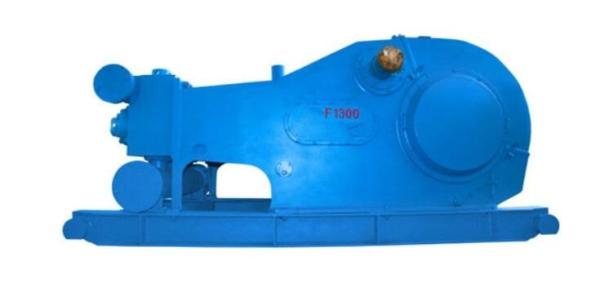

F1300 Mud Pump Well Drilling Compact Structure

F1300 Mud Pump Well Drilling has features of solid and compact structure, small volume, and good and reliable performance. F1300 Mud Pump Well Drilling can meet the drilling requirements such as high pressure and big displacements whether in land drilling or off-shore drilling.

F1300 Mud Pump Well Drilling has a longer stroke and can be operated at a lower stroke, thus improving the water-supplying performance effectively and extending the lifetime of mud pump fluid end parts greatly.

Parameters of F1300 Mud Pump Well Drilling

Liner Size in 7 6 3/4
6 1/2
6 1/4
6
5 1/2
 5
Discharge Pressure Mpa
19.2
20.6
22.3
24.1
26.1
31.1
34.5
psi
2785
2988

3234

3495
3785
4510
5000
Stroke per Minute
(SPM)		 Power
KW(HP)		 Displacement L/s(GPM)
130
1050
(1408)
49.19
(779.6)
45.74
(725.0)
42.41
(672.2)
39.22
(621.6)
36.14
(572.8)
30.36
(481.2)
25.10
(397.8)
120
*970
(1300)
45.41
(719.7)
41
(649.8)
39.15
(620.5)
36.20
(573.7)
33.36
(528.7)
28.03
(444.2)
23.17
(367.2)
110
889
(1192)
41.63
(659.8)
38.07
(603.4)
35.89
(568.8)
33.18
(525.9)
30.58
(484.7)
25.69
(407.1)
21.24
(336.6)
100
808
(1083)
37.84
(599.7)
35.18
(557.6)
32.63
(517.1)
30.17
(478.2)
27.8
(440.6)
23.36
(370.2)
19.31
(306.0)
90
727
(975)
34.06
(539.8)
31.67
(501.9)
29.36
(465.3)
27.15
(430.3)
25.02
(396.5)
21.02
(333.1)
13.38
(212.0)
50
404
(541)
18.92
(299.8)
17.59
(278.8)
16.31
(258.5)
15.08
(239.0)
13.9
(220.3)
11.68
(185.1)
9.65
(152.9)
1
8.08
(10.8)
0.3784
(6.00)
0.3518
(5.57)
0.3518
(5.57)
0.3263
(5.17)
0.278
(4.40)
0.2336
(3.70)
0.1931
(3.06)
--Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency.　　　　　　　　
--The * present the recommendatory SPM and input power when the mud pump runs continuously.　　　　　　　　

F1300 Mud Pump Well Drilling Specification :

Rated input Power : 970 kW (1300 HP)
Stroke Per Minute: 120 SPM
Stroke Length: 304.8 mm (12")
Gear Ratio: 4.206:1
Max. Working Pressure: 34.5 MPa (5000 psi)
Valve: API#7
Max.Liner Size : 180 mm(7")
suction Inlet Flange: 304.8 mm (12") flange
Discharge Outlet Flange: 130.2 mm (5 1/8") flange,34.5 MPa (5000 psi)
Overall Dimension (LxW×H):4685×2414×2003 mm3(15.37×7.92×6.57 ft3)
Approx Weight: 24572 kg (54172 lb)
