F500 Oilwell Triplex Pumps 5000 Psi Api Mud Pump For Oil Well Drilling
F500 Oilwell Triplex Pumps 5000 Psi Api Mud Pump For Oil Well Drilling
F500 Oilwell Triplex Pumps 5000 Psi Api Mud Pump For Oil Well Drilling
F500 Oilwell Triplex Pumps 5000 Psi Api Mud Pump For Oil Well Drilling
F500 Oilwell Triplex Pumps 5000 Psi Api Mud Pump For Oil Well Drilling
F500 Oilwell Triplex Pumps 5000 Psi Api Mud Pump For Oil Well Drilling
Specifications
Brand Name :
Hebei Pantu
Model Number :
F500 Oilwell Triplex Pumps
Certification :
API 7K & ISO
Place of Origin :
China
MOQ :
1
Price :
10000USD~50000USD
Payment Terms :
L/C,T/T
Supply Ability :
20sets/month
Delivery Time :
45 days
Packaging Details :
3302mm*1671mm*1412mm(13ft*6.85ft*5.56ft)
Stroke Length: :
190.5 mm (7 1/2")
Stroke Length :
229mm(9")
Gear Ratio: :
4.286:1
Name :
Oilwell Triplex Pumps
Max. Working Pressure :
34.5MPa
Rated input Power : :
373 kW(500 HP)
Suction Inlet Flange :
254mm(10") flange
Valve :
API#5
Description

F500 Oilwell Triplex Pumps 5000 Psi Pressure


Product Overview

  1. The Triplex Pump (sometimes referred to as a mud drilling pump or drilling mud pump), is a reciprocating piston/plunger pump designed to circulate drilling fluid under high pressure down the drill string and back up the annulus. A Triplex Pump is an important part of the equipment used for oil well drilling.

Key Features

  1. Durable Construction – Fabricated with high-strength alloy steel for longer service life under harsh drilling conditions.
  2. High Pumping Efficiency – Optimized fluid end design ensures steady displacement and minimal pulsation.
  3. Flexible Power Options – Compatible with both electric motor and diesel engine drives.
  4. Easy Maintenance – Modular design allows quick replacement of fluid end parts, reducing downtime.
  5. Enhanced Lubrication System – Combination of splash and forced lubrication for extended bearing life.
  6. API & ISO Compliance – Designed and manufactured according to API Spec 7K and ISO 9001 standards.

Technical Specifications

Parameters of Oilwell Triplex Pumps

Liner Size in 6 3/4
6 1/2
 6 5 1/2 5 4 1/2 4
3 1/2
Discharge Pressure Mpa
9.2
10
11.7
13.9
16.8
20.8
26.3
34.5
psi
1334
1450
1670
2016
2400
3016
3814
5000
Stroke per Minute
(SPM)		 Power
KW(HP)		 Displacement L/s(GPM)
170
384
(515)
37.29
(591.0)
34.62
(548.7)
29.46
(466.9)
24.72
(391.8)
20.50
(324.9)
16.59
(262.9)
13.08
(207.3)
10.05
(159.2)
*165
*373
(500)
36.2
(573.7)
33.6
(532.5)
28.6
(453.3)
24
(380.4)
19.9
(315.4)
16.1
(255.)
12.7
(201.2)
9.75
(154.5)
150
339.4
(455)
32.9
(521.4)
30.55
(484.2)
26
(412.1)
21.8
(345.5)
18.1
(286.8)
14.64
(232.0)
11.55
(183.0)
8.86
(140.4)
140
316.5
(424)
30.72
(486.9)
28.51
(451.8)
24.27
(384.6)
20.36
(322.7)
16.88
(267.5)
13.66
(216.5)
10.78
(170.8)
8.27
(131.0)
130
293.9
(394)
28.52
(452.0)
26.47
(419.5)
22.53
(357.1)
18.91
(299.7)
15.68
(248.5)
12.68
(200.9)
10.01
(158.6)
8.27
(131.0)
120
271.2
(364)
26.33
(417.3)
24.44
(387.3)
20.8
(329.6)
17.45
(276.5)
14.47
(229.3)
11.71
(185.6)
9.24
(146.4)
7.09
(112.3)
110
248.7
(333)
24.1
(381.9)
22.4
(355.0)
19.07
(302.2)
16
(253.6)
13.27
(210.3)
10.73
(170.0)
8.46
(134.0)
6.5
(103.0)
1
2.261
(3.03)
0.219
(3.47)
0.204
(3.23)
0.173
(2.74)
0.145
(2.29)
0.121
(1.91)
0.098
(1.55)
0.077
(1.22)
0.059
(0.93)
--Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency.　　　　　　　　
--The * present the recommendatory SPM and input power when the mud pump runs continuously.　　　　　　　　


Oilwell Triplex Pumps Specification :

Rated input Power : 373 kW(500 HP)

Stroke Per Minute : 165 SPM
Stroke Length: 190.5 mm (7 1/2")

Gear Ratio: 4.286:1
Max. Working Pressure : 34.5 MPa (5000 psi)

Valve : API#5
Max.Liner Size : 170 mm (6 3/4")
Suction Inlet Flange : 203.2 mm (8") flange
Discharge Outlet Flange : 101.6 mm (4") flange,34.5 MPa (5000 psi)
Overall Dimension (L×W×H):3639×2369×2315 mm3(11.94×7.77×7.6 ft3)Approx Weight : 9543 kg (21039 lb)

Applications

  1. Onshore and offshore oil drilling rigs
  2. Geothermal drilling projects
  3. Coalbed methane drilling
  4. Large-diameter water well drilling

Why Choose Our Mud Pump?

  1. Proven track record in Middle East, North America, Russia, and Africa oilfields.
  2. Global spare parts supply and after-sales service network.

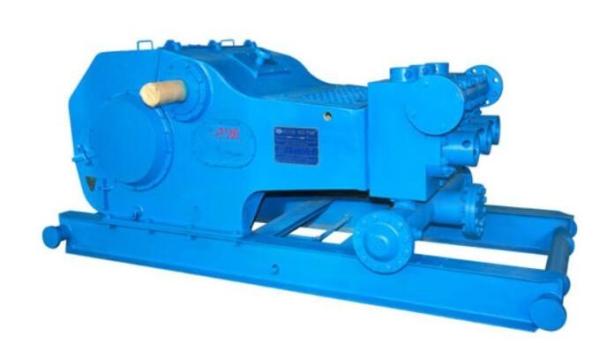

Product photos

F500 Oilwell Triplex Pumps 5000 Psi Api Mud Pump For Oil Well Drilling
