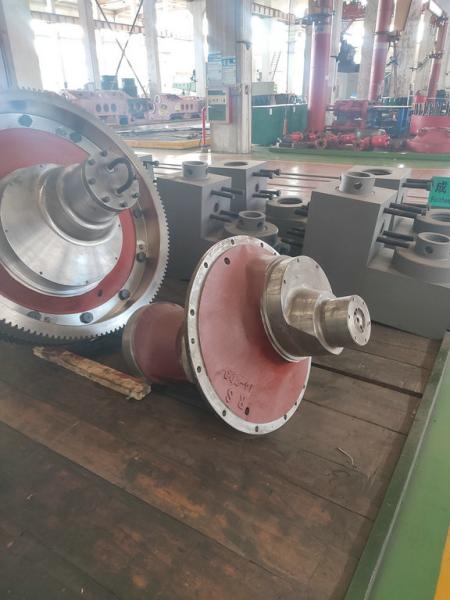

QF800 Electric Slurry Pump For Drilling Rig 800HP With Herringbone Gear
QF800 Electric Slurry Pump For Drilling Rig 800HP With Herringbone Gear
QF800 Electric Slurry Pump For Drilling Rig 800HP With Herringbone Gear
QF800 Electric Slurry Pump For Drilling Rig 800HP With Herringbone Gear
QF800 Electric Slurry Pump For Drilling Rig 800HP With Herringbone Gear
QF800 Electric Slurry Pump For Drilling Rig 800HP With Herringbone Gear
Specifications
Brand Name :
Hebei Pantu
Model Number :
QF800
Certification :
API 7K & ISO
Place of Origin :
China
MOQ :
1
Price :
10000USD~50000USD
Payment Terms :
L/C,T/T
Supply Ability :
20sets/month
Delivery Time :
45 days
Packaging Details :
3302mm*1671mm*1412mm(13ft*6.85ft*5.56ft)
Name :
QF800 Slurry Pump
Model :
QF800
Rated Input Power: :
597 kW
Stroke Per Minute: :
155 SPM
Gear Ratio: :
4.038:1
Max.Liner Size : :
170 mm(6 1/2")
Gear Type :
Herringbone Gear
Srandard :
API 7K
Description

QF800 Slurry Pump For Drilling Rig 800HP


Product Overview

  1. The RS-QF800 Slurry Pump is lighter than the RS-F800 mud pump by 1/3. its crankshaft is forged and fully balanced. The main wearing parts are the same as the RS-F800 mud pump.

Key Features

  1. Durable Construction – Fabricated with high-strength alloy steel for longer service life under harsh drilling conditions.
  2. High Pumping Efficiency – Optimized fluid end design ensures steady displacement and minimal pulsation.
  3. Flexible Power Options – Compatible with both electric motor and diesel engine drives.
  4. Easy Maintenance – Modular design allows quick replacement of fluid end parts, reducing downtime.
  5. Enhanced Lubrication System – Combination of splash and forced lubrication for extended bearing life.
  6. API & ISO Compliance – Designed and manufactured according to API Spec 7K and ISO 9001 standards.

Technical Specifications

Liner Size in 170 160 150 140 130 120 110 110
Discharge Pressure Mpa 13.88 15.67 17.83 20.47 23.74 27.86 33.16 34.5
psi
2011
2271
2584
2966
3440
4037
4805
5000
Stroke per Minute
(SPM)		 Power
KW(HP)		 Displacement L/s(GPM)
160
616
(825)
39.96
(633.38)
35.38
(560.78)
31.11
(493.10)
27.08
(429.23)
23.36
(370.26)
19.90
(315.42)
16.72
(265.02)
13.82
(219.05)
*155
*597
(800)
38.71
(613.57)
34.28
(543.35)
30.13
(477.57)
26.24
(415.91)
22.63
(358.69)
19.28
(305.59)
16.20
(256.78)
13.39
(212.24)
150
577
(774)
37.45
(593.59)
33.18
(525.91)
29.16
(462.20)
25.39
(402.44)
21.90
(347.12)
18.66
(295.77)
15.67
(248.37)
12.96
(205.42)
140
539
(722)
34.95
(553.97)
30.97
(490.88)
27.21
(431.29)
23.71
(375.81)
20.44
(323.98)
17.41
(275.95)
14.63
(231.89)
12.09
(191.63)
130
500
(670)
32.46
(514.50)
28.75
(455.70)
25.27
(400.54)
22.01
(348.87)
18.98
(300.84)
16.17
(256.30)
13.58
(215.25)
11.23
(178.00)
120
462
(619)
29.96
(474.88)
26.54
(420.67)
23.32
(369.63)
20.31
(321.92)
17.52
(277.70)
14.93
(236.65)
12.54
(198.76)
10.37
(164.37)
110
423
(567)
27.46
(435.25)
24.33
(385.64)
21.38
(338.88)
18.62
(295.13)
16.06
(254.56)
13.68
(216.83)
11.49
(182.12)
9.503
(150.63)
1
3.85
(5.16)
0.2497
(3.9578)
0.2212
(3.5061)
0.1944
(3.0813)
0.1693
(2.6835)
0.1460
(2.3141)
0.1244
(1.9718)
0.1045
(1.6564)
0.08639
(1.36931)
--Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency.　　　　　　　　
--The * present the recommendatory SPM and input power when the mud pump runs continuously.　　　　　　　　



Slurry Pump Specification :

Rated Input Power: 597 kW (800 HP)Stroke Per Minute: 155 SPM
Stroke Length: 220 mm (8.66")

Gear Ratio: 4.038:1
Max.Working Pressure: 34.5 MPa (5000 psi)

Valve: API#6
Max.Liner Size : 170 mm(6 1/2")
Suction Inlet Flange: 203 mm (8") flange
Discharge Outlet Flange: 103 mm (4 1/16") flange, 34.5 MPa (5000 psi)Overall Dimension (L×WxH): 3583×1960×1534 mm3(11.76×6.43×5.03 ft3)Approx Weight: 11171 kg (24628 lb)

Applications

  1. Onshore and offshore oil drilling rigs
  2. Geothermal drilling projects
  3. Coalbed methane drilling
  4. Large-diameter water well drilling

Why Choose Our Mud Pump?

  1. Proven track record in Middle East, North America, Russia, and Africa oilfields.
  2. Global spare parts supply and after-sales service network.
