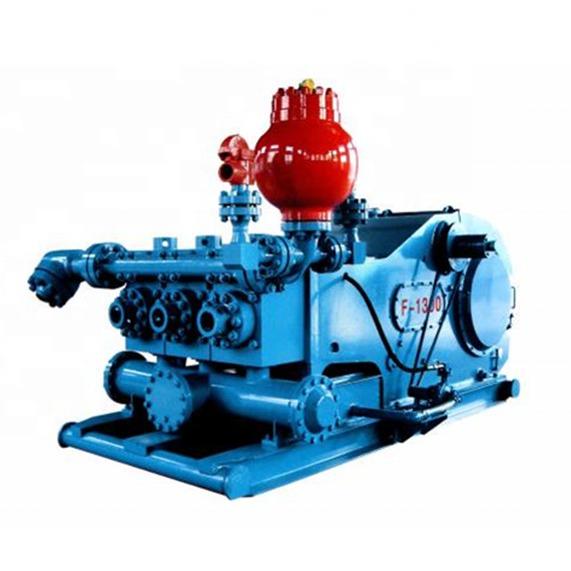

800HP Drilling Mud Pump F800 Mud Pump For Water Well Drilling
800HP Drilling Mud Pump F800 Mud Pump For Water Well Drilling
800HP Drilling Mud Pump F800 Mud Pump For Water Well Drilling
800HP Drilling Mud Pump F800 Mud Pump For Water Well Drilling
800HP Drilling Mud Pump F800 Mud Pump For Water Well Drilling
800HP Drilling Mud Pump F800 Mud Pump For Water Well Drilling
Specifications
Brand Name :
Hebei Pantu
Model Number :
F800FT
Certification :
API 7K & ISO
Place of Origin :
China
MOQ :
1
Price :
10000USD~50000USD
Payment Terms :
L/C,T/T
Supply Ability :
20sets/month
Delivery Time :
45 days
Packaging Details :
3302mm*1671mm*1412mm(13ft*6.85ft*5.56ft)
Name :
Drilling Mud Pump 800HP
Model :
F800FT
Strokes per minute :
150
Stroke Length :
229mm(9")
Gear Ratio :
4.185:1
Application :
Water Well Drilling
Gear Type :
Herringbone Gear
Srandard :
API 7K
Description

F800FT Drilling Mud Pump 800HP For Water Well Drilling

Product Overview

  1. The fission frame of the F800FT Drilling Mud Pump is designed based on the frame of the RS-F800 mud pump. The single module of the mud pump is no more than 2.5t and can be transported by helicopter. So the mud pump can meet the needs of drilling in jungles.

Key Features

  1. Durable Construction – Fabricated with high-strength alloy steel for longer service life under harsh drilling conditions.
  2. High Pumping Efficiency – Optimized fluid end design ensures steady displacement and minimal pulsation.
  3. Flexible Power Options – Compatible with both electric motor and diesel engine drives.
  4. Easy Maintenance – Modular design allows quick replacement of fluid end parts, reducing downtime.
  5. Enhanced Lubrication System – Combination of splash and forced lubrication for extended bearing life.
  6. API & ISO Compliance – Designed and manufactured according to API Spec 7K and ISO 9001 standards.

Technical Specifications


Liner Size in 6 1/2 6 1/4 6 5 1/2 5 4 1/2 4
Discharge Pressure Mpa 14.6 15.8 17.2 20.4 24.7 30.5 34.5
psi 2118 2290 2495 2915 3582 4424 5000
Stroke per Minute
(SPM)		 Power
KW(HP)		 Displacement L/s(GPM)
160 636
(853)		 39.21
(621.4)		 36.26
(574.7)		 33.41
(529.5)		 28.07
(444.9)		 23.2
(367.7)		 18.79
(297.8)		 14.85
(235.2)
*150 *597
(800)		 36.76
(582.6)		 34
(538.9)		 31.32
(496.4)		 26.32
(417.1)		 21.75
(344.7)		 17.62
(279.2)		 13.92
(220.6)
140 557.2
(693.3)		 34.3
(543.6)		 31.73
(502.9)		 29.23
(463.3)		 24.57
(389.4)		 20.3
(321.7)		 16.45
(260.7)		 12.99
(205.8)
130 517.4
(693.3)		 31.85
(504.8)		 29.47
(467.1)		 27.14
(430.1)		 22.81
(361.5)		 18.85
(298.7)		 15.27
(242.0)		 12.06
(191.1)
120 477.6
(640)		 29.4
(465.9)		 27.2
(431.1)		 25.06
(397.2)		 21.06
(333.8)		 17.4
(275.7)		 14.1
(223.4)		 11.14
(176.5)
110 437.8
(587.7)		 26.95
(427.1)		 24.93
(395.1)		 22.97
(364.0)		 19.3
(305.9)		 15.95
(252.8)		 12.92
(204.7)		 10.21
(161.8)
1 3.98
(5.33)		 0.245
(3.88)		 0.227
(3.59)		 0.209
(3.31)		 0.175
(2.77)		 0.145
(2.29)		 0.117
(1.85)		 0.093
(1.47)
--Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency.　　　　　　　　
--The * present the recommendatory SPM and input power when the mud pump runs continuously.　　　　　　　　


F800FT Drilling Mud Pump​ Quick Details

Rated input Power: 597 kW(800 HP)
Stroke Per Minute: 150 SPM
Stroke Length : 229 mm(9")Gear Ratio : 4.185:1
Max. working Pressure: 34.5 MPa (5000 psi)Valve: API#6
Max.Liner Size : 170 mm (6 1/2")
Suction inlet Flange : 254 mm (10") flange
Discharge Outlet Flange : 130.2 mm (5 1/8") flangep,34.5 MPa (5000 psi)Overall Dimension (L×WxH):3302×1671×1412 mm3(13×6.58×5.56 ft3)Approx Weight : 14000 kg (30865 lb)

Applications

  1. Onshore and offshore oil drilling rigs
  2. Geothermal drilling projects
  3. Coalbed methane drilling
  4. Large-diameter water well drilling

Why Choose Our Mud Pump?

  1. Proven track record in Middle East, North America, Russia, and Africa oilfields.
  2. Global spare parts supply and after-sales service network.
