4000W Rated Power Electric Dirt Bike with 72V40Ah LG Cells and Adjustable Suspension for High Torque Off-Road Performance
4000W Rated Power Electric Dirt Bike with 72V40Ah LG Cells and Adjustable Suspension for High Torque Off-Road Performance
4000W Rated Power Electric Dirt Bike with 72V40Ah LG Cells and Adjustable Suspension for High Torque Off-Road Performance
4000W Rated Power Electric Dirt Bike with 72V40Ah LG Cells and Adjustable Suspension for High Torque Off-Road Performance
4000W Rated Power Electric Dirt Bike with 72V40Ah LG Cells and Adjustable Suspension for High Torque Off-Road Performance
4000W Rated Power Electric Dirt Bike with 72V40Ah LG Cells and Adjustable Suspension for High Torque Off-Road Performance
4000W Rated Power Electric Dirt Bike with 72V40Ah LG Cells and Adjustable Suspension for High Torque Off-Road Performance
4000W Rated Power Electric Dirt Bike with 72V40Ah LG Cells and Adjustable Suspension for High Torque Off-Road Performance
4000W Rated Power Electric Dirt Bike with 72V40Ah LG Cells and Adjustable Suspension for High Torque Off-Road Performance
4000W Rated Power Electric Dirt Bike with 72V40Ah LG Cells and Adjustable Suspension for High Torque Off-Road Performance
Specifications
Supply Ability :
1000Unit/Month
Delivery Time :
5-16 weeks
Model Number :
SKYLEAP
Price :
Price negotiable
Packaging Details :
CKD,SKD,CBU
Payment Terms :
L/C,T/T
Place of Origin :
CHINA
MOQ :
10 Unit
Brand Name :
YIPOWER
Description

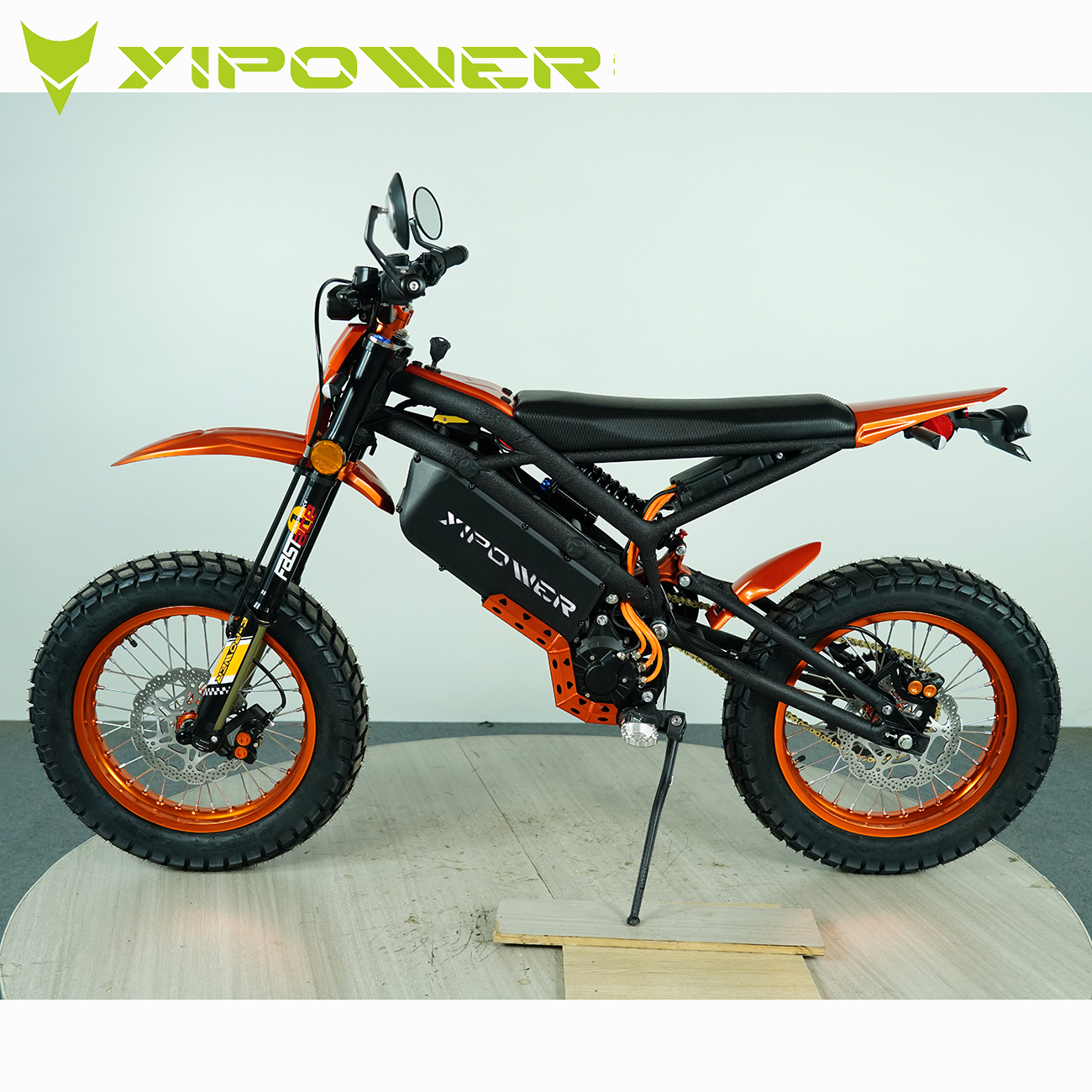

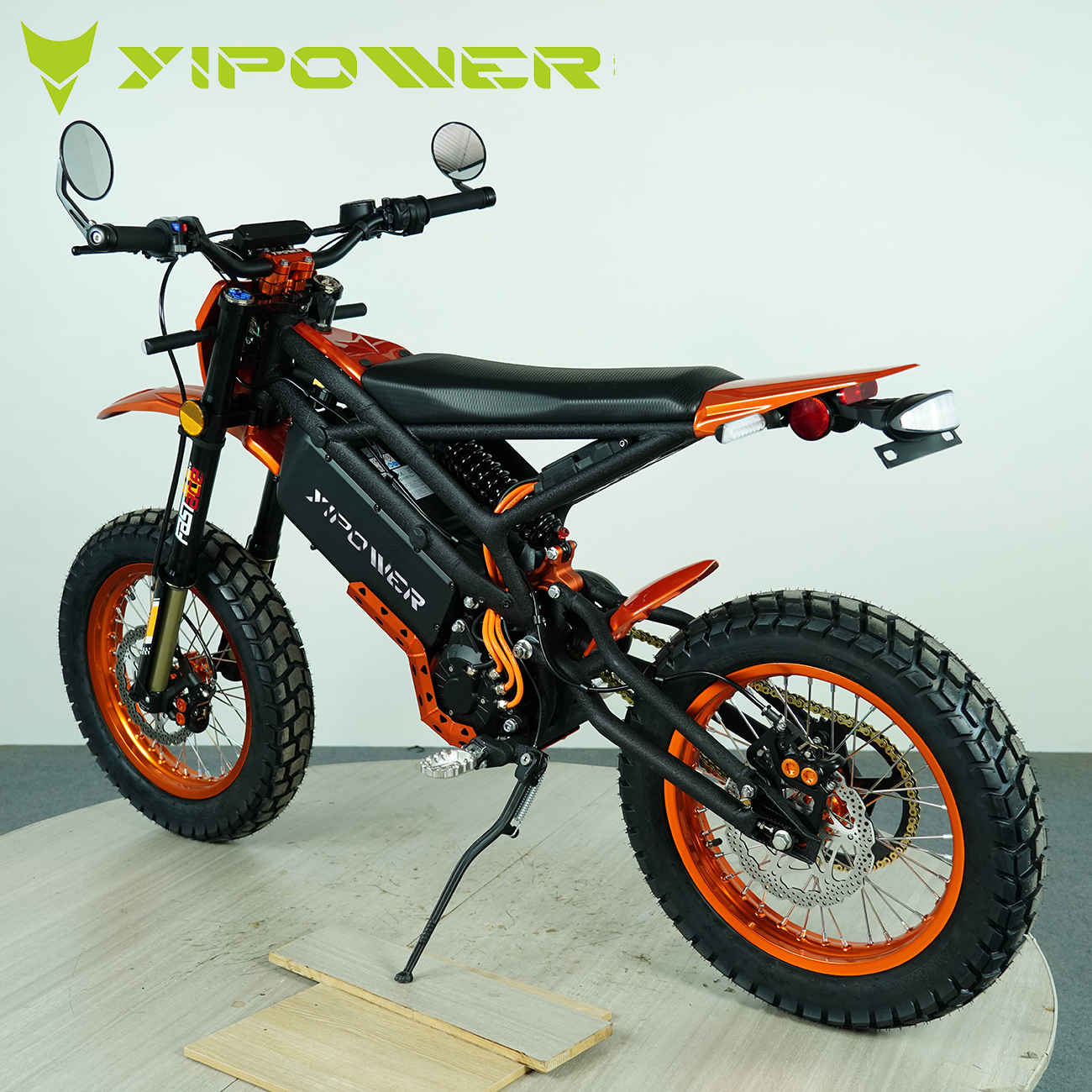

Hardcore off-road electric motorcycle equipped with air-cooled permanent magnet synchronous motor. Rated power 4000W and peak power up to 15KW, delivering massive torque of 378N·m to climb slopes over 45°. Adopting FOC vector controller for smooth and controllable power output. Built with 72V40Ah LG 21700 battery cells, it achieves 100km range at constant speed of 45km/h with limited top speed of 100km/h. It features adjustable front and rear racing suspension: customized inverted front suspension with 180mm travel and rear gas-assisted spring suspension with 76mm travel. Supported by optional belt & chain dual transmission, CST professional off-road tires and front & rear dual piston disc brakes. Constructed with high-strength carbon steel frame, it owns outstanding trafficability to conquer mountains, wilderness and all kinds of rough terrain.

Frame Material: High-strength Carbon Steel Motor lype:AIF-cooled Permanent Magnet synchronous Motor
Controller Type:FOCVector Control Rated Voltage:72V(DC)
Rated Power:4000w Peak Power:15KW
Max Torque:378N·m Gear Ratio:1:8.68
1ST Transmission Mode:Belt 2ND Transmission Mode: Chain
Battery Specifications:72V/40Ah BatteryCells: LG 21700
Front Suspension: Custom/Inverted/Compression Adjustment/Rebound Adjustment/Travel180mm
RearSuspension: Spring with Gas CylinderAssist/Compression Adjustment/Rebound Adjustment/Travel76mm
Tire Specifications & Brand:CST FR80/100-19 RR80//100-18(other sizes optional)
Top Speed:100km/h(limited) Range:100km(45km/h)
Max Climbing Angle:≥45° Brakes: Fr.&Rr.,Dual Piston Disc Brake
Net Weight(kg):79(including battery) Max Load Capacity(kg):150
Vehicle Dimensions(mm):1850×780×1090 Wheelbase(mm):1225
Minimum Ground Clearance(mm):290 Seat Height(mm):870

Custom motorcycle orders accepted
