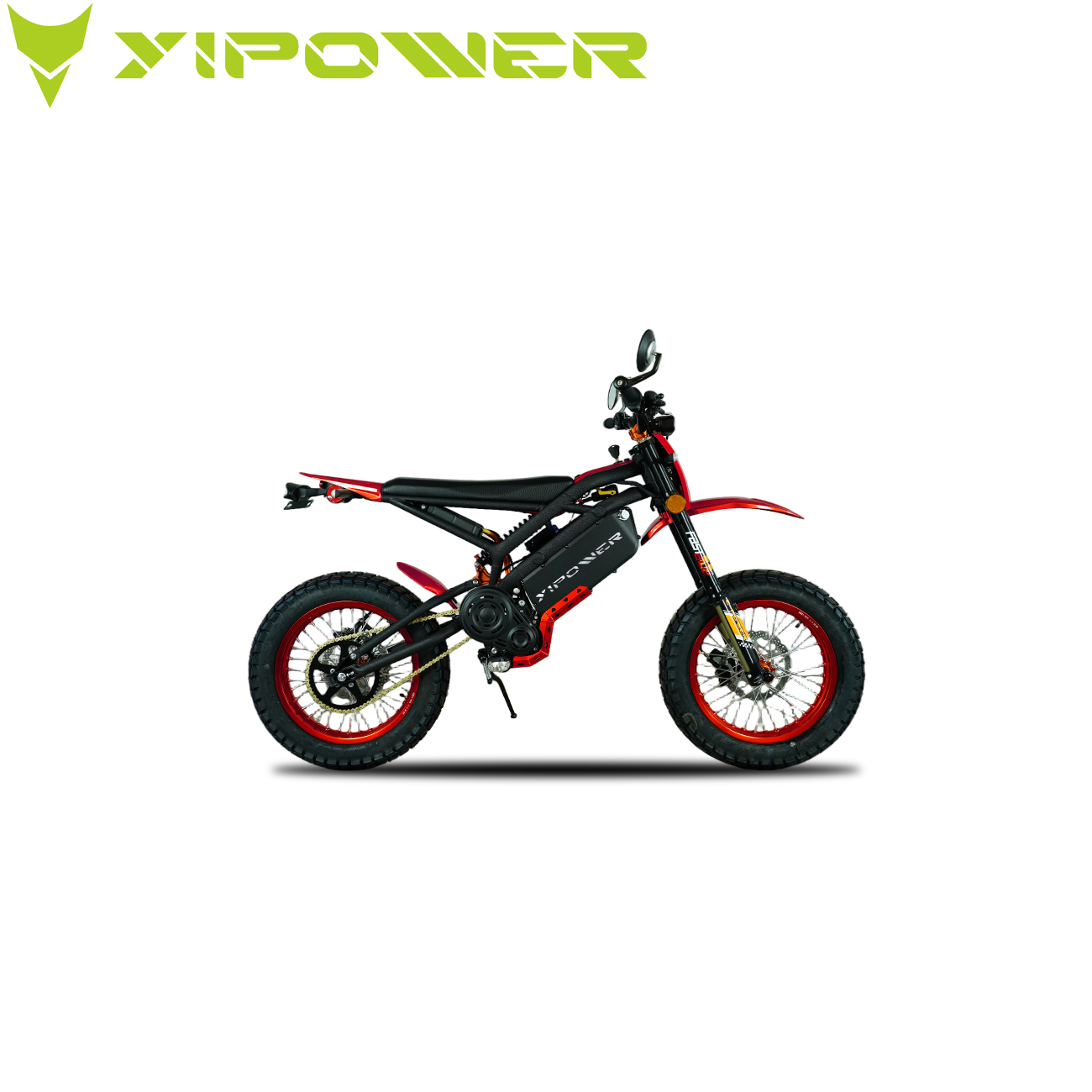

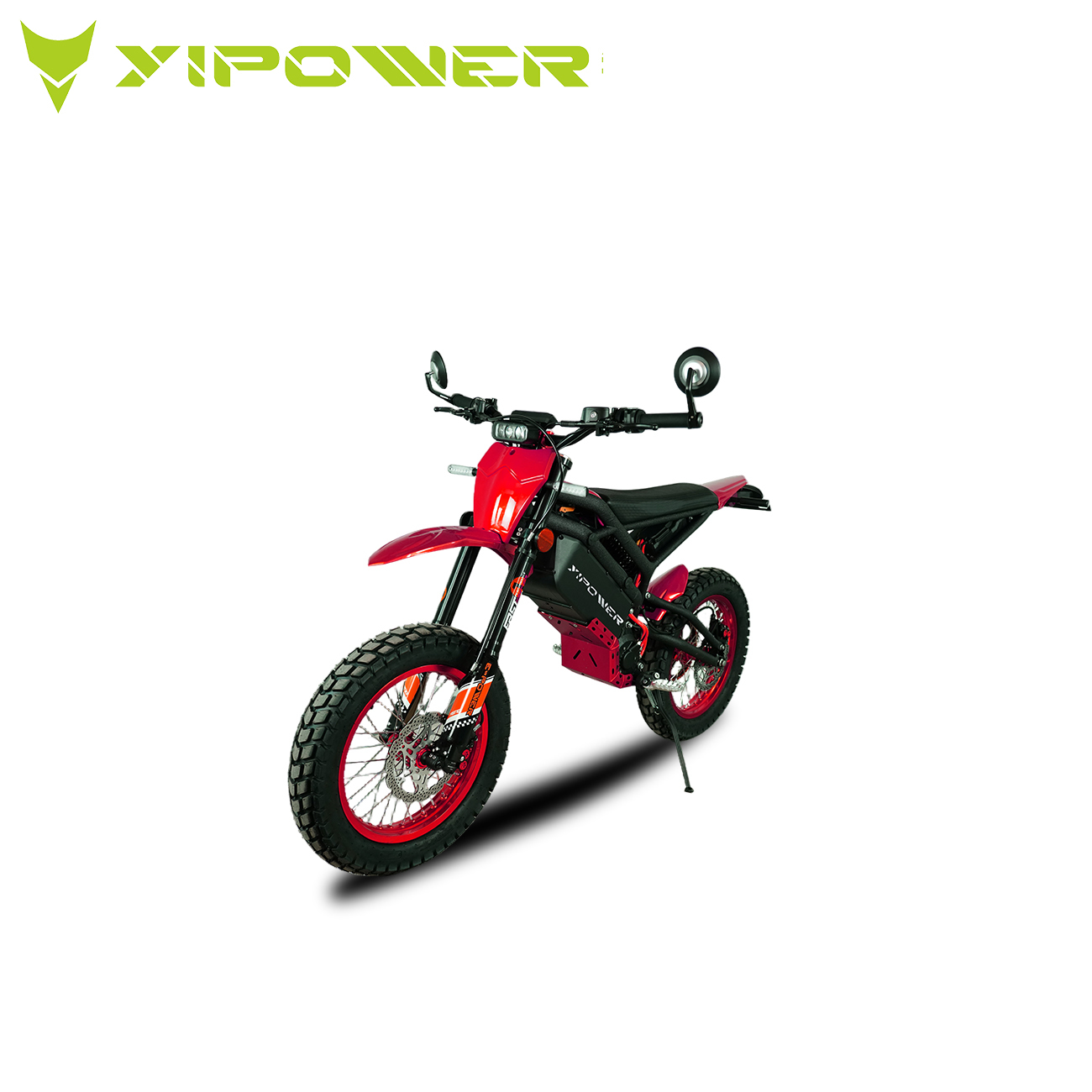

Full Adjustable Suspension Electric Motorcycle, Inverted Front & Gas-assisted Rear Shock, High Ground Clearance, Stable & Comfortable for All Terrains
Full Adjustable Suspension Electric Motorcycle, Inverted Front & Gas-assisted Rear Shock, High Ground Clearance, Stable & Comfortable for All Terrains
Full Adjustable Suspension Electric Motorcycle, Inverted Front & Gas-assisted Rear Shock, High Ground Clearance, Stable & Comfortable for All Terrains
Full Adjustable Suspension Electric Motorcycle, Inverted Front & Gas-assisted Rear Shock, High Ground Clearance, Stable & Comfortable for All Terrains
Full Adjustable Suspension Electric Motorcycle, Inverted Front & Gas-assisted Rear Shock, High Ground Clearance, Stable & Comfortable for All Terrains
Full Adjustable Suspension Electric Motorcycle, Inverted Front & Gas-assisted Rear Shock, High Ground Clearance, Stable & Comfortable for All Terrains
Specifications
Supply Ability :
1000Unit/Month
Delivery Time :
5-12 weeks
Model Number :
SKYLEAP
Price :
Price negotiable
Packaging Details :
CKD,SKD,CBU
Payment Terms :
L/C,T/T
Place of Origin :
CHINA
MOQ :
1Unit
Brand Name :
YIPOWER
Description

Adopting professional fully adjustable suspension system, the front custom inverted shock supports compression and rebound dual adjustment with 180mm ultra-long travel. The rear gas cylinder assisted spring shock with 76mm travel and dual adjustment provides excellent cushioning effect. With 290mm super high ground clearance, it avoids road bumps and obstacles effectively, ensuring stable riding on rough roads, greatly improving driving comfort and trafficability.

Frame Material: High-strength Carbon Steel Motor lype:AIF-cooled Permanent Magnet synchronous Motor
Controller Type:FOCVector Control Rated Voltage:72V(DC)
Rated Power:4000w Peak Power:15KW
Max Torque:378N·m Gear Ratio:1:8.68
1ST Transmission Mode:Belt 2ND Transmission Mode: Chain
Battery Specifications:72V/40Ah BatteryCells: LG 21700
Front Suspension: Custom/Inverted/Compression Adjustment/Rebound Adjustment/Travel180mm
RearSuspension: Spring with Gas CylinderAssist/Compression Adjustment/Rebound Adjustment/Travel76mm
Tire Specifications & Brand:CST FR80/100-19 RR80//100-18(other sizes optional)
Top Speed:100km/h(limited) Range:100km(45km/h)
Max Climbing Angle:≥45° Brakes: Fr.&Rr.,Dual Piston Disc Brake
Net Weight(kg):79(including battery) Max Load Capacity(kg):150
Vehicle Dimensions(mm):1850×780×1090 Wheelbase(mm):1225
Minimum Ground Clearance(mm):290 Seat Height(mm):870

Custom motorcycle orders accepted
