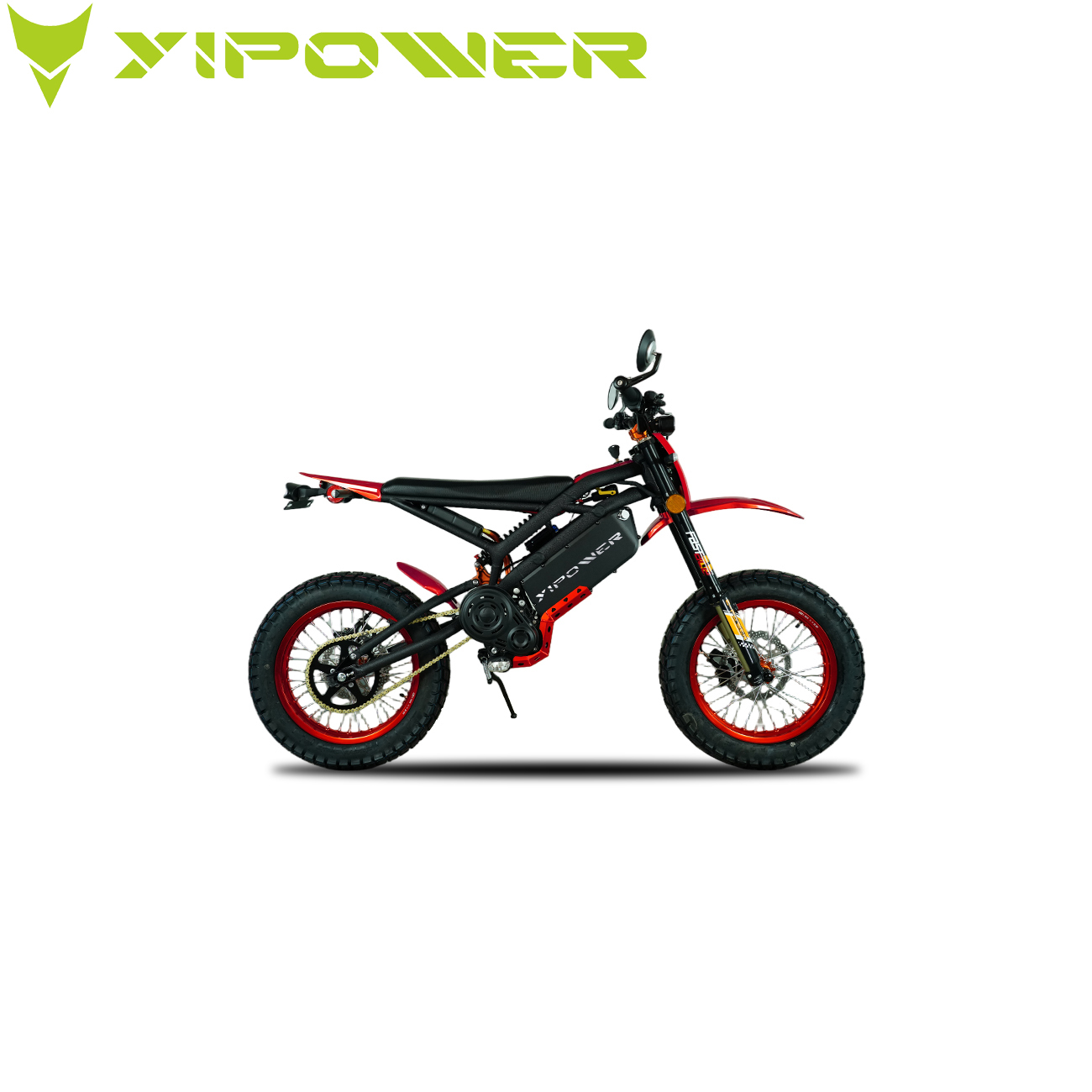

Air-cooled Permanent Magnet Synchronous Motor Electric Dirt Motorcycle with 72V/40Ah Battery and Adjustable Suspension
Air-cooled Permanent Magnet Synchronous Motor Electric Dirt Motorcycle with 72V/40Ah Battery and Adjustable Suspension
Air-cooled Permanent Magnet Synchronous Motor Electric Dirt Motorcycle with 72V/40Ah Battery and Adjustable Suspension
Air-cooled Permanent Magnet Synchronous Motor Electric Dirt Motorcycle with 72V/40Ah Battery and Adjustable Suspension
Air-cooled Permanent Magnet Synchronous Motor Electric Dirt Motorcycle with 72V/40Ah Battery and Adjustable Suspension
Air-cooled Permanent Magnet Synchronous Motor Electric Dirt Motorcycle with 72V/40Ah Battery and Adjustable Suspension
Specifications
Supply Ability :
1000Unit/Month
Delivery Time :
5-17 weeks
Model Number :
SKYLEAP
Payment Terms :
L/C,T/T
Price :
Price negotiable
Packaging Details :
CKD,SKD,CBU
Place of Origin :
CHINA
MOQ :
10Unit
Brand Name :
YIPOWER
Description

Adopting air-cooled permanent magnet synchronous motor, it runs with low noise and vibration and higher energy efficiency, saving more power than ordinary motors. Supported by precise FOC vector control technology, it realizes smooth speed regulation without stuttering. The 870mm ergonomic seat height and 1225mm long wheelbase ensure relaxed riding posture and excellent stability. The adjustable shock rebound allows customized riding feeling, balancing sports performance and comfortable driving experience.

Frame Material: High-strength Carbon Steel Motor lype:AIF-cooled Permanent Magnet synchronous Motor
Controller Type:FOCVector Control Rated Voltage:72V(DC)
Rated Power:4000w Peak Power:15KW
Max Torque:378N·m Gear Ratio:1:8.68
1ST Transmission Mode:Belt 2ND Transmission Mode: Chain
Battery Specifications:72V/40Ah BatteryCells: LG 21700
Front Suspension: Custom/Inverted/Compression Adjustment/Rebound Adjustment/Travel180mm
RearSuspension: Spring with Gas CylinderAssist/Compression Adjustment/Rebound Adjustment/Travel76mm
Tire Specifications & Brand:CST FR80/100-19 RR80//100-18(other sizes optional)
Top Speed:100km/h(limited) Range:100km(45km/h)
Max Climbing Angle:≥45° Brakes: Fr.&Rr.,Dual Piston Disc Brake
Net Weight(kg):79(including battery) Max Load Capacity(kg):150
Vehicle Dimensions(mm):1850×780×1090 Wheelbase(mm):1225
Minimum Ground Clearance(mm):290 Seat Height(mm):870

Custom motorcycle orders accepted
