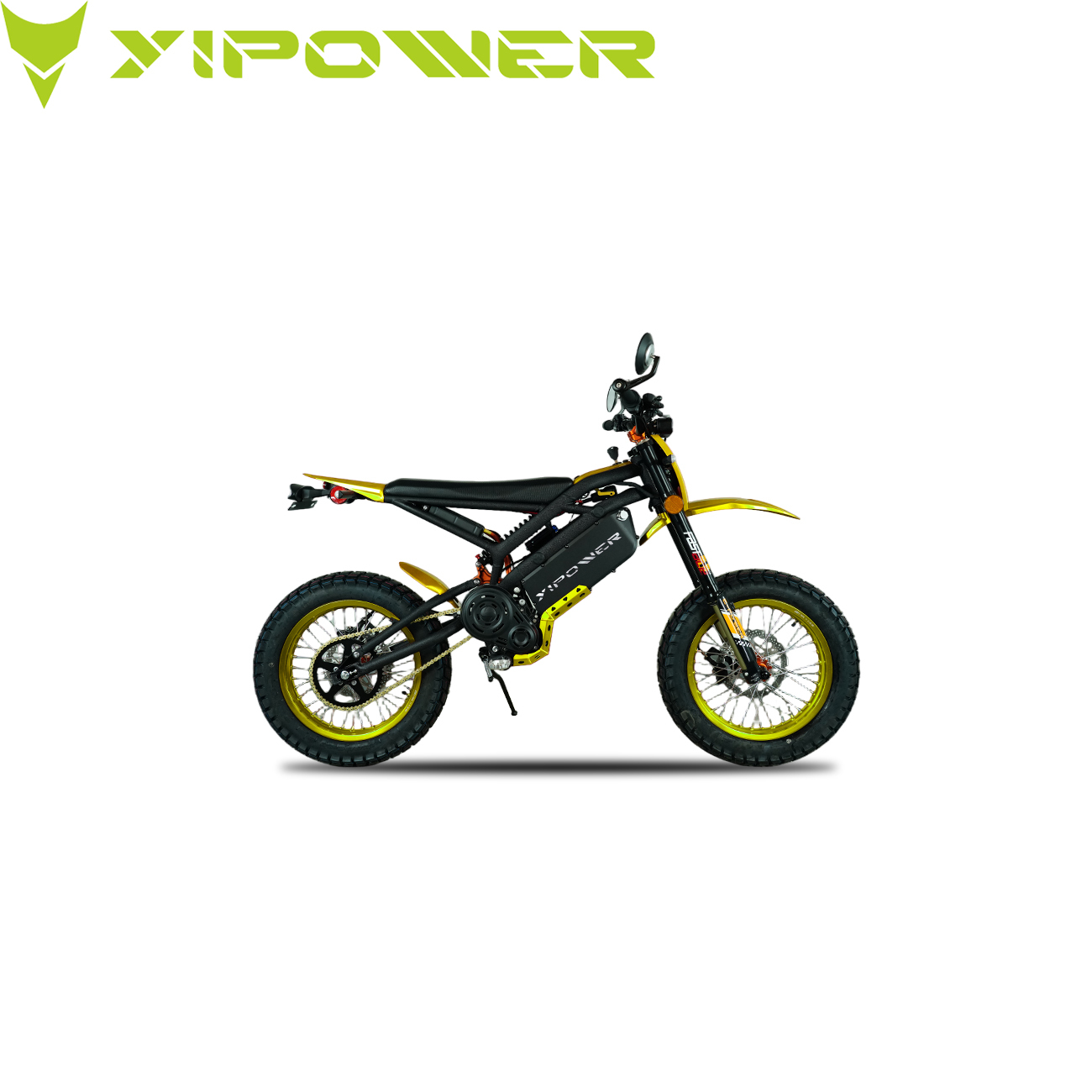

Belt & Chain Dual-drive Electric Dirt Motorcycle with Carbon Steel Frame and FOC Vector Control
Belt & Chain Dual-drive Electric Dirt Motorcycle with Carbon Steel Frame and FOC Vector Control
Belt & Chain Dual-drive Electric Dirt Motorcycle with Carbon Steel Frame and FOC Vector Control
Belt & Chain Dual-drive Electric Dirt Motorcycle with Carbon Steel Frame and FOC Vector Control
Belt & Chain Dual-drive Electric Dirt Motorcycle with Carbon Steel Frame and FOC Vector Control
Belt & Chain Dual-drive Electric Dirt Motorcycle with Carbon Steel Frame and FOC Vector Control
Specifications
Packaging Details :
CKD,SKD,CBU
Model Number :
SKYLEAP
Supply Ability :
100Unit/Month
Delivery Time :
5-18 weeks
Brand Name :
YIPOWER
Place of Origin :
CHINA
MOQ :
1Unit
Description

Adopting innovative belt and chain dual transmission, it combines the quiet smoothness of belt drive and high strength of chain drive with high efficiency and low loss. Built with high-strength carbon steel frame, the vehicle is sturdy and pressure-resistant. Weighing only 79kg, it supports 150kg super load capacity. Equipped with FOC vector controller and front & rear dual piston disc brakes, it delivers smooth power output and sensitive braking, durable for daily long-term use.

Frame Material: High-strength Carbon Steel Motor lype:AIF-cooled Permanent Magnet synchronous Motor
Controller Type:FOCVector Control Rated Voltage:72V(DC)
Rated Power:4000w Peak Power:15KW
Max Torque:378N·m Gear Ratio:1:8.68
1ST Transmission Mode:Belt 2ND Transmission Mode: Chain
Battery Specifications:72V/40Ah BatteryCells: LG 21700
Front Suspension: Custom/Inverted/Compression Adjustment/Rebound Adjustment/Travel180mm
RearSuspension: Spring with Gas CylinderAssist/Compression Adjustment/Rebound Adjustment/Travel76mm
Tire Specifications & Brand:CST FR80/100-19 RR80//100-18(other sizes optional)
Top Speed:100km/h(limited) Range:100km(45km/h)
Max Climbing Angle:≥45° Brakes: Fr.&Rr.,Dual Piston Disc Brake
Net Weight(kg):79(including battery) Max Load Capacity(kg):150
Vehicle Dimensions(mm):1850×780×1090 Wheelbase(mm):1225
Minimum Ground Clearance(mm):290 Seat Height(mm):870

Custom motorcycle orders accepted
