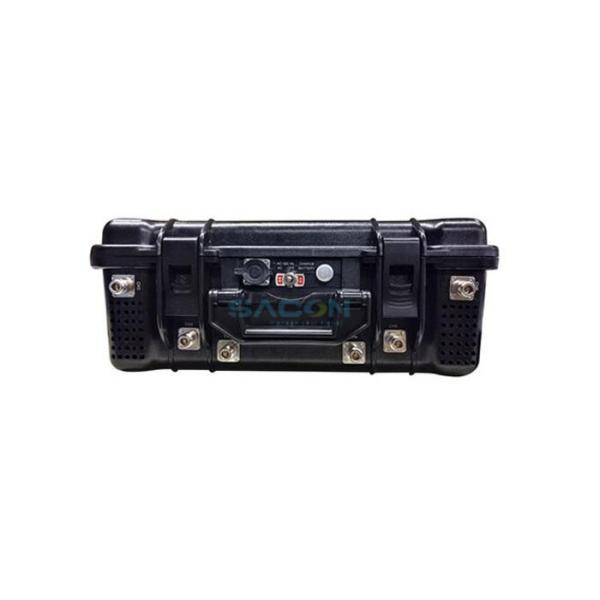

120m Long Distance Manpack Jammer with 90w Power and 6 High Gain Antennas for RCIED Jamming
120m Long Distance Manpack Jammer with 90w Power and 6 High Gain Antennas for RCIED Jamming
120m Long Distance Manpack Jammer with 90w Power and 6 High Gain Antennas for RCIED Jamming
120m Long Distance Manpack Jammer with 90w Power and 6 High Gain Antennas for RCIED Jamming
Specifications
Brand Name :
Sacontelecom
Model Number :
SA-006M-A
Certification :
ISO9001
Place of Origin :
China
MOQ :
5pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
100pcs/month
Delivery Time :
15 work days after receive payment
Packaging Details :
Wooden Case with PE Foam
Product Name :
90watts Effective Manpack Jammer
Application :
Forces, Anti Units, Riot Control Units
Shell :
Backpack Style
Jamming Range :
20 - 100meters, Depend On Signal Strength
Output Power :
90w
Weight :
15kg
Description
120m Long Distance Manpack Jammer 90w Power With 6 High Gain Antennas
Product Overview

The SA-006M-A is a state-of-the-art efficient cellular/satellite mobile phone jammer designed for bomb disposal security applications, troop marching, and field operations. This portable IED jammer is built into a backpack for deployment in hostile territory, providing defensive RF jamming of Radio Controlled Improvised Explosive Devices (RCIEDs) used by terrorists, insurgents, and criminals.

Key Features
  • High-power multi-band jammer with Frequency Scan technology
  • Modular construction for easy maintenance, repair, and upgrade
  • Jamming capability for up to 6 different jamming modules
  • Maximum 90 watts total RF output power
  • AC mains or DC power operation
  • Systematic Smart Cooling System
  • Independent frequency band control via individual switches
  • Power amplifiers protection design for reliable operation
  • Customizable frequencies including AM, FM Radio, VHF, UHF, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA, LTE bands, GPS, Galileo, Compass, Glonass, WIFI, WIMAX, UAV, drone, and more
Technical Specifications
Output Interface Description Shield Band Frequency RF Output Power (±1dBm)
Optional LOJACK 168-178 MHz 41.7dBm
CH2 WCDMA 3G 2110-2170 MHz 41.7dBm
CH3 GSM900 925-960 MHz 41.7dBm
CH4 GSM1800 / PCS 1900 1805-1880 MHz / 1930-1990 MHz 41.7dBm
CH5 WIFI, 2.4G 2400-2485 MHz 41.7dBm
Optional LTE800 790-821 MHz 41.7dBm
CH1 GPS L1 1570-1580 MHz 41.7dBm
CH6 LTE 2600 2620-2690 MHz 41.7dBm

Power Supply: AC220V, DC24V

Total Output Power: 90Watt

Power Consumption: 300Watt

Weight: 15Kg

Size (L×W×H): 320×120×430mm

Humidity: 30%-95%

Operating Temperature: -20℃ to +55℃

Jammer Module Number: 6

Cooling System: Systematic Smart Cooling System

System Protection: VSWR, Over-voltage

Jamming Source: Frequency Scan Technology

Antenna Type: High Gain Omni-directional Antennas

Number of Antennas: 6

Internal Battery: 24V DC, 2 hours runtime

Jamming Range: 20-120m (depending on mobile network signal density)

Applications
  • Prevent remote controlled improvised explosive devices from being activated and stop terrorist attacks
  • Protect explosives handling experts
  • Secure important locations such as bus/train stations, plazas, schools, mass gatherings, and stadiums
  • Risk mitigation and explosives removal in specified areas
  • VIP convoy protection, anti-riot control, and border control operations
