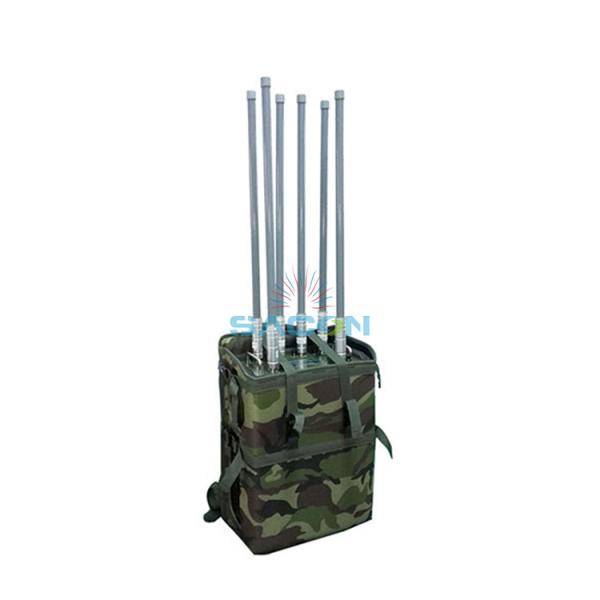

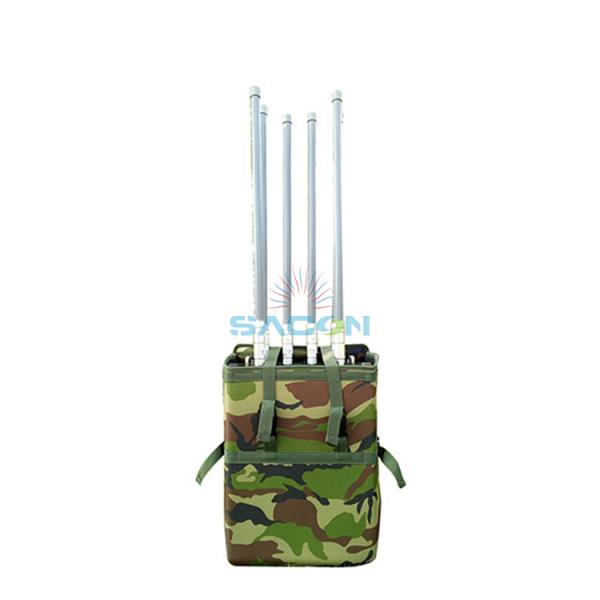

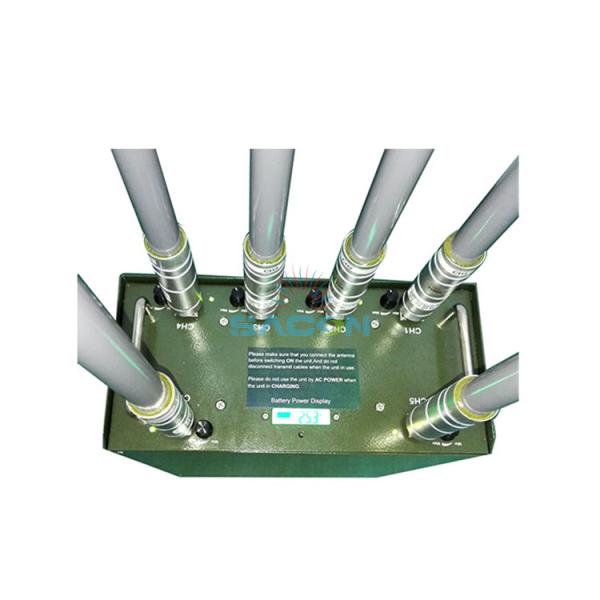

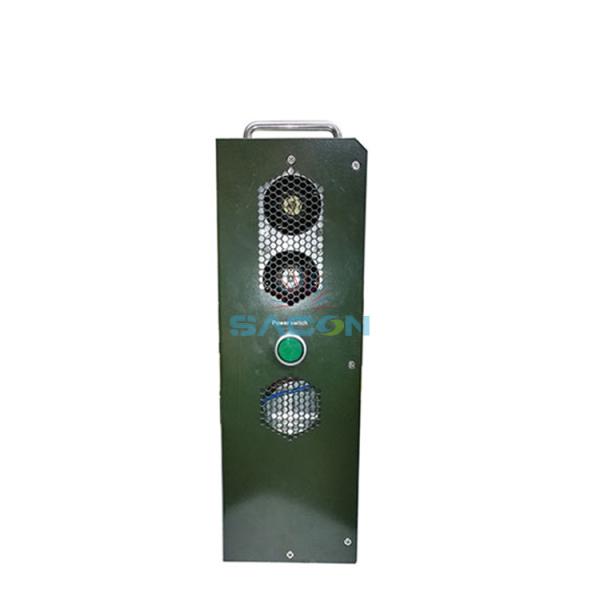

High Power Manpack Jammer Backpack 6 Antennas 120w Built-in Battery 100m Range

The SA-BMJ06 Backpack 4G signal jammer effectively blocks 2G, 3G, 4G, VHF, UHF, WiFi, and GPS signals. It provides 100% coverage against drones and UAVs, including DJI Phantom 4, Phantom 3 Professional, Advanced, Standard series, and Inspire Series.

This network jammer features 6 bands with 6 high-gain omnidirectional antennas. The built-in +24V/20AH LiFePO4 battery provides up to 1 hour of operation and also supports AC power. The power supply is compatible with AC adapter 50-60Hz (AC110 or 240V-DC27V), making it suitable for use in most countries. With high power output, the effective range extends up to 100 meters.

We offer various manpack phone signal jammers with 3, 6, or 8 antennas, and can design custom jammer devices according to specific requirements. Contact us for more details.

• 10-25W per band, 6 bands/antennas
• Built-in battery with operating time exceeding 60 minutes (additional battery options available)
• Battery power and charger status displayed via LED screen
• Stand-alone modular design with individual power control
• Adjustable output power for each band/channel
• VSWR over protection for each module
• Designed to cut off down-link only, preventing interference with base stations and repeaters

All 6 frequency modules can be flexibly mixed and configured for mobile phone signals including 2G, 3G, 4G, 700-800MHz (USA), and more.

• Optional Frequencies: CDMA (850-894MHz, 43dbm/20W), PCS (1920-1990MHz, 40dbm/10W), 3G (2110-2170MHz, 40dbm/10W), 4G LTE 2600 (2500-2690 MHz, 40dbm/10W), 4G LTE 700 (700-803 MHz, 43dbm/20W)
• Power Supply: AC adapter 50 to 60Hz (AC110 or 240V-DC27V)
• Dimensions: 400 x 290 x 135 mm (excluding antennas)
• Package Size: 550 x 450 x 300mm
• Net Weight: 16kg
• Gross Weight: 20kg (15kg + 3kg antennas)
• Working Temperature: -30°C to 60°C
• Total Power: 75W
• Shielding Radius: 20-500 meters at -75dBm (depending on signal strength in the area)
• Warranty: One year from delivery date

Anti-terror units, bomb squads, VIP protection, convoy protection, force protection, SWAT teams, anti-units, and riot control units.

• 1x Manpack Jammer
• 1x Manpack Bag
• 1x AC 110/220V DC 12V/27V Power Charger
• 6x Omnidirectional Antennas (500mm long)
