400W High Power 4 Bands Manpack Jammer with 200m Range for 2G 3G Signal Blocking
400W High Power 4 Bands Manpack Jammer with 200m Range for 2G 3G Signal Blocking
400W High Power 4 Bands Manpack Jammer with 200m Range for 2G 3G Signal Blocking
400W High Power 4 Bands Manpack Jammer with 200m Range for 2G 3G Signal Blocking
400W High Power 4 Bands Manpack Jammer with 200m Range for 2G 3G Signal Blocking
400W High Power 4 Bands Manpack Jammer with 200m Range for 2G 3G Signal Blocking
400W High Power 4 Bands Manpack Jammer with 200m Range for 2G 3G Signal Blocking
400W High Power 4 Bands Manpack Jammer with 200m Range for 2G 3G Signal Blocking
Specifications
Brand Name :
Sacontelecom
Model Number :
SA-MJ04
Certification :
ISO9001, CE
Place of Origin :
China
MOQ :
3pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
1000 sets per month
Delivery Time :
2 working week
Packaging Details :
Wooden packing
Product Name :
High Power Portable Jammer
Output Power :
400W
Jamming Range :
50-200m Depending On The Environment Signal Strength
Antenna Type :
High Gain Omni Antennas And High Gain Directional Panel Antennas
Dimension :
630 * 610 * 340 (mm)
Weight :
42kg
Description
4 Bands Backpack Jammer Block 2G 3G Signal 400 Watt High Gain Omni Antennas
Product Overview

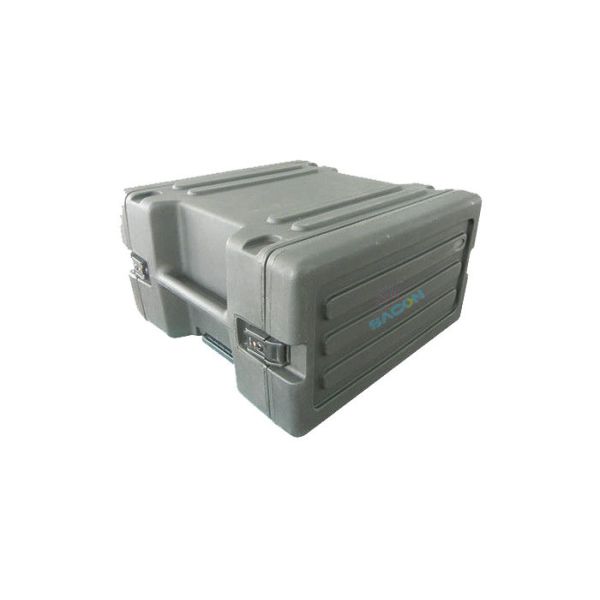

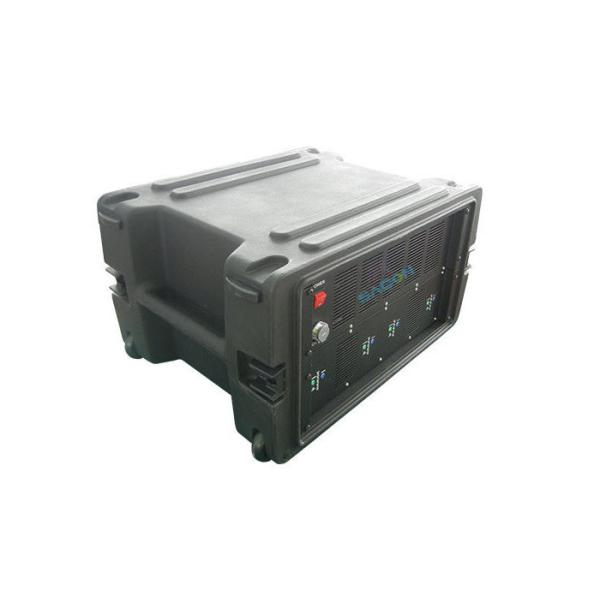

The SA-MJ04 is a Man-pack Portable Mobile Signal Jammer featuring state-of-the-art technology for maximum performance and reliability. With its robust mechanical design, this 400W high power portable jammer is ready for immediate use. The SA-MJ04 features 4 channels, each delivering 100W of power, with an effective jamming range of up to 200 meters.

Key Features
  • Frequency bands and output power selectable
  • Different frequency bands can be controlled independently by separate switches
  • AC or DC power supply options available
  • Power Amplifiers protection design ensures reliable device operation
Technical Specifications
Channel 1 CDMA: 850-895MHz 100W (50dBm)
Channel 2 GSM: 920-965MHz 100W (50dBm)
Channel 3 DCS: 1800-1880MHz 100W (50dBm)
Channel 4 3G: 2100-2170MHz 100W (50dBm)
Total RF Output Power 400W
Channel Output Power Error ±0.5dB
Power Consumption 1200W
Internal Modulation Analog
Effective Jamming Range 50-200m (depending on environment signal strength)
Jamming Target CDMA, GSM, DCS, 3G
Power Supply 220V AC
Continuous Working Hours Long time
Antennas Type High Gain Omni Antennas and High Gain Directional Panel Antennas
Main Equipment Dimension 630×610×340mm
Main Equipment Weight 42kg
Operating Temperature -20ºC to +50ºC
Humidity 5% to 95%
Antenna Specifications
Antenna Type High Gain Directional Antenna High Gain Omni Antenna
Frequency 920-965MHz & 1805-1880MHz, 850-895 & 2110-2170MHz 850-895 / 920-965MHz / 1805-1880MHz / 2110-2170MHz
Gain 12-15dBi 6dBi
Interface N-Female N-Male
Spare Parts
No. Description Quantity
1 Omni Antennas 4 pcs
2 High Gain Dual-band Directional Panel Antennas 2 pcs
3 Coaxial cables to install the Directional Antennas 4 pcs
4 Omni Antenna Container 1 pcs
5 Tripod for installing Omni Antennas 1 pcs
Applications

Bomb disposal squads, VIP protection, Special (S.W.A.T), security forces, bomb squads, anti-terror units, anti-units, Border control units, checkpoint personnel.
