Specifications
Brand Name :
Sacontelecom
Model Number :
SA-BJ06
Certification :
ISO9001, CE
Place of Origin :
China
MOQ :
5pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
5000pcs/month
Delivery Time :
10 Working Days After Received Payment
Packaging Details :
Wooden Case with PE Foam
Product Name :
Manpack Signal Blocker
Output Power :
60W
Jamming Range :
20-80m @ According To Signal Density Of Mobile Network
Power Supply :
AC220V, DC24V, 15A,
Size :
300×200×150 (mm)
Weight :
8kg
Description
6 Channels 60 Watt Manpack Jammer Block GSM CDMA DCS 3G WiFi Signals Up To 80m
Product Overview

The SA-BJ06 signal jammer is a portable system capable of jamming 6 different frequencies including GSM, CDMA, DCS, PCS, 3G, 4G, and WiFi. This high-power manpack mobile phone jammer delivers up to 10W per band (60W total) with a jamming range of up to 80 meters. Features include LCD display for battery monitoring and built-in battery providing approximately 2 hours of operation.

Key Features
  • High-power multi-band jammer with Frequency Scan technology
  • Modular construction for easy maintenance, repair and upgrade
  • Jamming capability for up to 6 different frequency modules
  • Maximum 60 watts total RF output power
  • AC mains or DC power operation
  • Systematic Smart Cooling System
  • Independent frequency band control via individual switches
  • Power Amplifiers protection design for reliable operation
  • Customizable frequencies including AM/FM Radio, VHF, UHF, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA, LTE bands, GPS, Galileo, Compass, Glonass, WiFi, WiMAX, UAV, drone frequencies
Technical Specifications
Output Interface Shield Band Frequency RF Output Power (±1dBm)
CH1 2110-2170 MHz 40 dBm
CH2 1805-1920 MHz 40 dBm
CH3 925-960 MHz 40 dBm
CH4 2400-2500 MHz 40 dBm
CH5 2110-2170 MHz 40 dBm
CH6 851-894 MHz 40 dBm
  • Power Supply: AC220V
  • Jamming Area: 20-80m (depending on mobile network signal density)
  • Power Consumption: 180W
  • Weight: 8Kg
  • Dimensions: 300×200×150mm (L×W×H)
  • DC24V, 15A internal battery with 2 hours operation time
  • Humidity: 30%-95%
  • Operating Temperature: -20 to +55°C
Applications
  • Prisons and Correctional Facilities
  • Recording Studios and Broadcasting Facilities
  • Banks and Financial Institutions
  • Contract Tendering Rooms
  • Churches and Religious Facilities
  • Classrooms and Educational Institutions
  • Testing Facilities and Research Centers
  • Security Services and Law Enforcement
  • Government Units and Secret Services
  • News Conference Rooms
  • Libraries and Museums
  • Courts and Legal Facilities
  • Border Patrol and Customs Enforcement

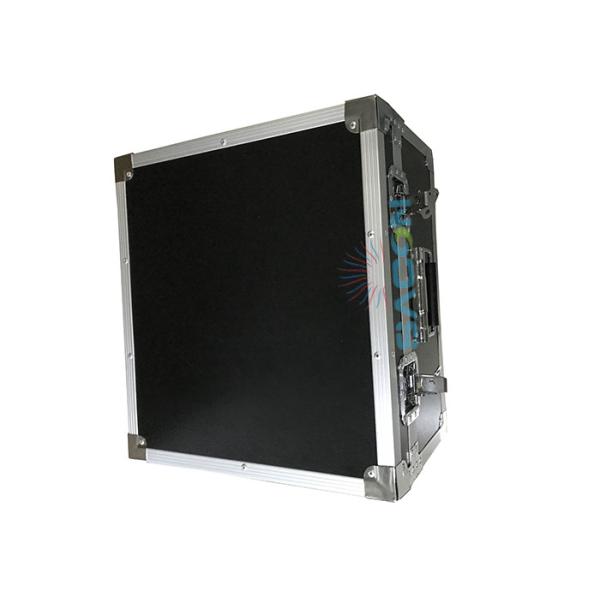

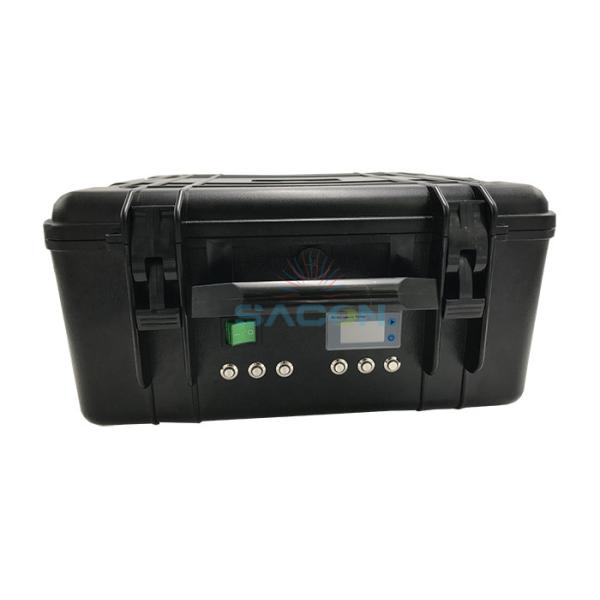

Product Images
60W Output Power 6 Channels Manpack Signal Blocker with 80m Jamming Range for GSM CDMA DCS 3G WiFi 60W Output Power 6 Channels Manpack Signal Blocker with 80m Jamming Range for GSM CDMA DCS 3G WiFi
Package Contents
  • Jammer Main Unit x 1pc
  • AC Power Cable x 1pc
  • Battery Charger x 1pc
  • Battery Charger Cable x 1pc
  • Case Belt x 1pc
60W Output Power 6 Channels Manpack Signal Blocker with 80m Jamming Range for GSM CDMA DCS 3G WiFi
