Three Phase Meter Use Mechanical Latching Relay , 90A 3 Sets of Contacts Mechanical Relay
Three Phase Meter Use Mechanical Latching Relay , 90A 3 Sets of Contacts Mechanical Relay
Specifications
Brand Name :
WSD
Model Number :
WSD-508FA3B-90A
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20000/day
Delivery Time :
14-21days
Packaging Details :
Cartons / Pallets
Outline dimensions :
(98 x 41 x 36) mm
Phase type :
3 phase
Core type :
single or double
Contact Form :
3B
Rated Load :
90A 250VAC
Max.Switching Voltage :
380V
Description

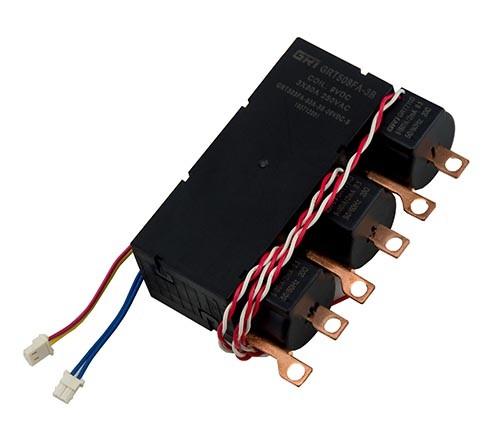

Mechanical Latching relay 3B 90A 3 sets of contacts for three phase meter

◇ 90A three sets of contacts switching capability

◇ Apply to State Grid three-phase mete

◇ Only impulse excitation needed, both for single and double coil.

◇ Low power consumption, small in size

◇ Custom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt

◇ 4KV dielectric strength between coil and contacts

◇ RoHS compliant

◇ IEC62055-31 UC2 compliant

◇ Outline dimensions: (98 x 41 x 36) mm
