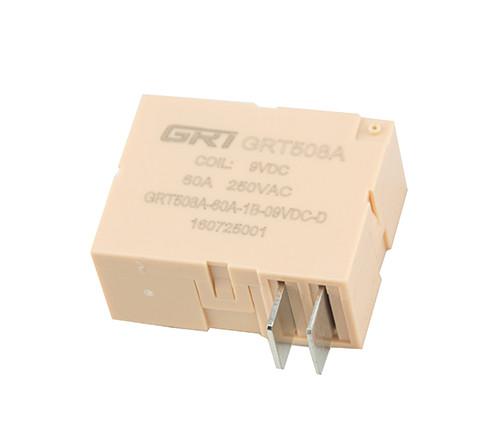

1B Contact Form Mechanical Latching Relay with 60A 250VAC Rated Load
1B Contact Form Mechanical Latching Relay with 60A 250VAC Rated Load
Specifications
Brand Name :
WSD
Model Number :
WSD-508A-60A
Place of Origin :
CHINA
MOQ :
500 pecs
Contact Form :
1B
Operate Time :
20ms Max.
Release Time :
20ms Max.
Contact Material :
AgSnO2
Rated Load(Resistive) :
60A 250VAC
Certification :
RoHS
Description

WSD-508A-60A Latching Relays Single Double 60A 250VAC Rated Load(Resistive)

◇ 60A contact switching capability

◇ Only impulse excitation needed, both for single and double coil.

◇ Low power consumption with great load capability, small in size

◇ Custom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt

◇ 4KV dielectric strength between coil and contacts

◇ PCB installation structure available

◇ RoHS compliant

◇ Outline dimensions: (39.1 x 30.9 x 17) mm


Coil Data (20℃)
Coil Voltage Coil Resistance (Ω) Coil Power (W) Operating Voltage Releasing Voltage Allowing Voltage Pulse Duration
(VDC) Single Double Single Double (VDC) (VDC) (VDC) (ms)
6 36 18/18 1.0 2.0 ≤4.2 ≤4.2 9 ≥50
9 81 40.5/40.5 ≤6.3 ≤6.3 13.5
12 144 72/72 ≤8.4 ≤8.4 18
24 576 288/288 ≤16.8 ≤16.8 36
Contact Data Characteristics
Contact Form 1B Operate Time 20ms Max.
Contact Material AgSnO2 Release Time 20ms Max.
Contact Resistance Max.1.5mΩ (1A 6VDC) Insulation Resistance (500VDC) 500MΩ Min.
Dielectric Strength (50/60Hz,1Min) Contact to Coil 4000VAC
Rated Load(Resistive) 60A 250VAC Across Open Contacts 1500VAC
Max.Switching Voltage 250VAC Contact to contact
Max.Switching Current 60A Surge Voltage (1.2/50μs) Contact to Coil
Max.Switching Power 15000VA
Service Life Mechnical Endurance 5×105OPS Dielectric Creepage
Electrical Endurance 1×104OPS Unit Weight About 36g
Max.Short-Circut Current 1500A/10ms Outline Dimension (without connecting parts) 39.1X30.9X17 (mm)
Environmental Data
Ambient Temperature -40℃～+70℃ Relative Humidity 5%-85% RH
Vibration 10-55Hz 1.5mm Shock 98m/s2
Dimension Drawings
1B Contact Form Mechanical Latching Relay with 60A 250VAC Rated Load
1B Contact Form Mechanical Latching Relay with 60A 250VAC Rated Load
Typical Terminal
1B Contact Form Mechanical Latching Relay with 60A 250VAC Rated Load
