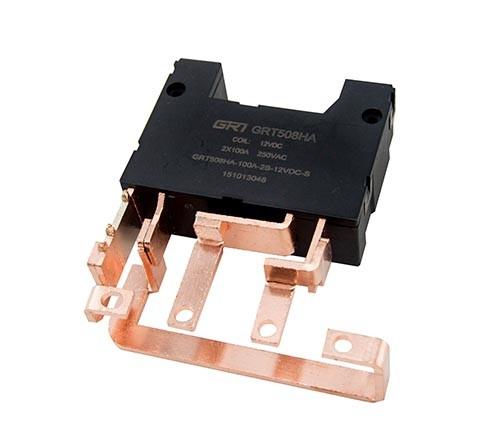

100A Mechanical Latching Relay Two Sets of Contact Switching Capability
100A Mechanical Latching Relay Two Sets of Contact Switching Capability
Specifications
Brand Name :
WSD
Model Number :
WSD-508HA-100A
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20000/day
Delivery Time :
14-21days
Packaging Details :
Cartons / Pallets
Contact Form :
2B
Contact Material :
AgSnO2
Operate Time :
40ms Max.
Release Time :
40ms Max.
Rated Load(Resistive) :
100A 250VAC
Outline Dimension :
70X52X22 (mm)
Description

Double coil latching relay 100A two sets of contacts switching capability

  • ◇ 100A two sets of contacts switching capability
  • ◇ Only impulse excitation needed, both for single and double coil.
  • ◇ Low power consumption, small in size
  • ◇ Custom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt
  • ◇ 4KV dielectric strength between coil and contacts
  • ◇ RoHS compliant
  • ◇ IEC62055-31 UC3 compliant
  • ◇ Outline dimensions: (70 x 52 x 22) mm

Coil Data (20℃)
Coil Voltage Coil Resistance (Ω) Coil Power (W) Operating Voltage Releasing Voltage Allowing Voltage Pulse Duration
(VDC) Single Double Single Double (VDC) (VDC) (VDC) (ms)
9 20.3 10.1/10.1 4.0 8.0 ≤6.3 ≤6.3 13.5 ≥120
12 36 18/18 ≤8.4 ≤8.4 18
24 144 72/72 ≤16.8 ≤16.8 36
48 576 288/288 ≤33.6 ≤33.6 72
Contact Data Characteristics
Contact Form 2B Operate Time 40ms Max.
Contact Material AgSnO2 Release Time 40ms Max.
Contact Resistance Max.1.0mΩ (1A 6VDC) Insulation Resistance (500VDC) 500MΩ Min.
Dielectric Strength (50/60Hz,1Min) Contact to Coil 4000VAC
Rated Load(Resistive) 100A 250VAC Across Open Contacts 2000VAC
Max.Switching Voltage 250VAC Contact to contact 4000VAC
Max.Switching Current 100A Surge Voltage (1.2/50μs) Contact to Coil 20KVAC
Max.Switching Power 25000VA
Service Life Mechnical Endurance 1×105OPS Dielectric Creepage 8mm
Electrical Endurance 6×103OPS Unit Weight About 170g
Max.Short-Circut Current 3000A/10ms 6000A/10ms(no explosion) Outline Dimension (without connecting parts) 70X52X22 (mm)
Environmental Data
Ambient Temperature -40℃～+85℃ Relative Humidity 5%-85% RH
Vibration 10-55Hz 1.5mm Shock 98m/s2
