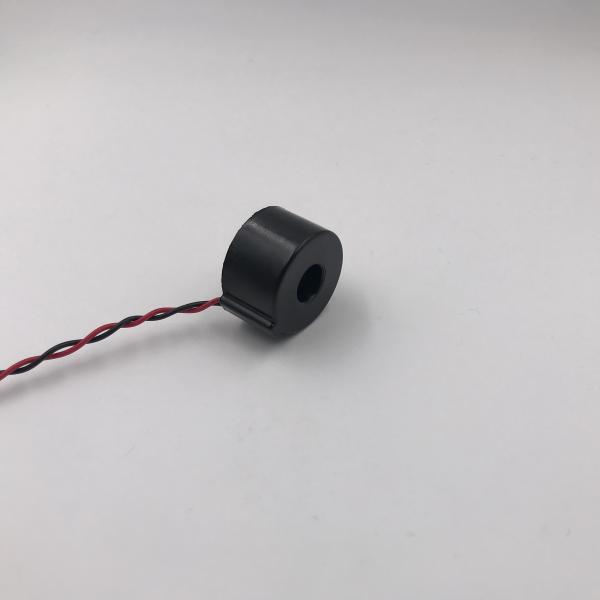

Round Single Phase Current Transformer , 90A Customized Turns Ratio 1 Phase Transformer
Round Single Phase Current Transformer , 90A Customized Turns Ratio 1 Phase Transformer
Specifications
Brand Name :
WSD
Model Number :
WSD-737
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20000/day
Delivery Time :
14-21days
Packaging Details :
Cartons / Pallets
Max current :
60-100A
Turns ratio :
Customized
Primary current :
5-10A
Secondary current :
2-5mA
Accuracy class :
0.1
DC immunity :
Not Available
Description

Single phase current transformer Roundness shape CT 90A 1500 : 1 turns ratio

Suitable for single-phase electricity meter as well as anti-tempering electricity meter
Compact and delicate appearance
Linear output current, high precision
Encapsulated with epoxy resion,with high insulation ability
It accords with IEC60044-1 0.05 class, 0.1 class, 0.2 class


Parameters:

Rated primary currentMax primary currentRated secondary currentTurn ratioAccuracy classDC componentShiledingLoad resistance
I p(A)I max(A)I s(mA)N(%)(%)(T)Rb
5602.51:20000.1/0.2unavailableunavailable5Ω,10Ω,20Ω
106051:20000.1/0.2
1060101:10000.1/0.2
108051:20000.1/0.2
1010051:20000.1/0.2
10100101:10000.1/0.2
　　　　　
　　　　　
　　　　　
　　　　　
Working temperature−40℃~ 85℃
Isolation voltage4000Vrms, 1 Min, No breakdown, No arcing
Insulation resistance≥1000MΩ
Operating temperature50~60Hz

Dimension:

Round Single Phase Current Transformer , 90A Customized Turns Ratio 1 Phase Transformer
About Us:

JiaXing Wisdom Electronic Tech Co., Ltd was founded in 2012, Located in Jiashan county Zhejiang province. We specialized in researching and developing miniature current transformer and miniature voltage transformer. Now we have more than 50 series of products and over hundred of specifications.

We have Independent R/ D design and manufacturing capability. As initiator of Built-in shielded magnetic interference miniature transformer, we are also the main Drafting Committee of industry standards JB/10665< Meter’ Miniature Current Transformers> and JB/T10667< Meter’ Miniature Voltage Transformers >.

Our Company follows strict in ISO9001: 2000 quality system certification. All products have passed the test of National Electric Instruments inspection Center. Raw materials are in conformity with the European ROHS (Environmental protection) standard.
