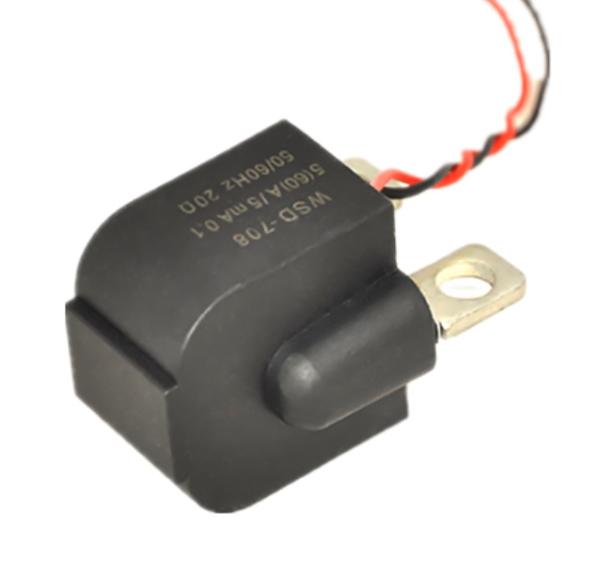

D Type Ferrite Core Single Phase Current Transformer Black Case with Fixed Joint
D Type Ferrite Core Single Phase Current Transformer Black Case with Fixed Joint
Specifications
Brand Name :
WSD
Model Number :
WSD-708
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200000/day
Delivery Time :
14-21days
Packaging Details :
Cartons / Pallets
Max current :
100A
DC immunity :
yes
Color :
black
Accuracy class :
0.1
Application :
electricity meter
Product name :
one phase transformer
Description

Single phase current transformer D-type Ferrite Core Fixed joint CT 5A 1000T Imax 100A black case current transfromer

Suitable for single-phase electricity meter as well as anti-tempering electricity meter

Compact and delicate appearance

Linear output current, high precision

Encapsulated with epoxy resion,with high insulation ability

It accords with IEC60044-1 0.05 class, 0.1 class, 0.2 class

Rated primary current Max primary current Rated secondary current Turn ratio Accuracy class DC component Shileding Load resistance
I p(A) I max(A) I s(mA) N (%) (%) (T) Rb
5 60 2.5 1:2000 0.1/0.2 unavailable unavailable 5Ω,10Ω,20Ω
5 60 5 1:1000 0.1/0.2
10 80 5 1:2000 0.1/0.2
10 100 5 1:2000 0.1/0.2
　 　 　 　 　
　 　 　 　 　
　 　 　 　 　
　 　 　 　 　
　 　 　 　 　
　 　 　 　 　
Working temperature −40℃~ 85℃
Isolation voltage 4000Vrms, 1 Min, No breakdown, No arcing
Insulation resistance ≥1000MΩ
Operating temperature 50~60Hz
D Type Ferrite Core Single Phase Current Transformer Black Case with Fixed Joint
