Blue Case Single Phase Transformer DC Component for Electric Energy Meters
Blue Case Single Phase Transformer DC Component for Electric Energy Meters
Specifications
Brand Name :
WSD
Model Number :
WSD-703P
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200000/day
Delivery Time :
14-25days
Packaging Details :
Cartons / Pallets
out case :
blue
lead wire :
red & white
max current :
120A
DC :
yes
Application :
electric energy meters
Product name :
one phase transformer
Description

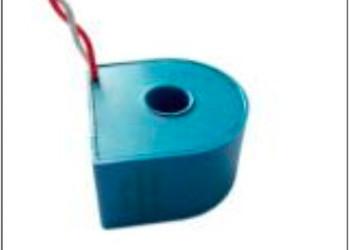

Single phase current transformer Blue case CT DC component Max current 120A

Suitable for high precision, small phase error requirments of three-phase electric energy meters
More space in the meter can be saved with combined current transformer
Linear output current, high precision
Encapsulated with epoxy resion,with high insulation ability
It accords with IEC60044-1 0.05 class, 0.1 class, 0.2 class

Rated primary currentMax primary currentRated secondary currentTurn ratioAccuracy classDC componentShiledingLoad resistance
I p(A)I max(A)I s(mA)N(%)(%)(T)Rb
56021:25000.05/0.1/0.2±3%unavailable5Ω,10Ω,20Ω
5602.51:20000.05/0.1/0.2　
106041:25000.05/0.1/0.2±3%
106051:20000.05/0.1/0.2　
1060101:10000.1/0.2　
58021:25000.1/0.2±3%
1010041:25000.1/0.2±3%
2010081:25000.1/0.2±3%
20100101:20000.1/0.2　
20100201:10000.1/0.2　
Working temperature−40℃~ 85℃
Isolation voltage4000Vrms, 1 Min, No breakdown, No arcing
Insulation resistance≥1000MΩ
Operating temperature50Hz~60Hz
