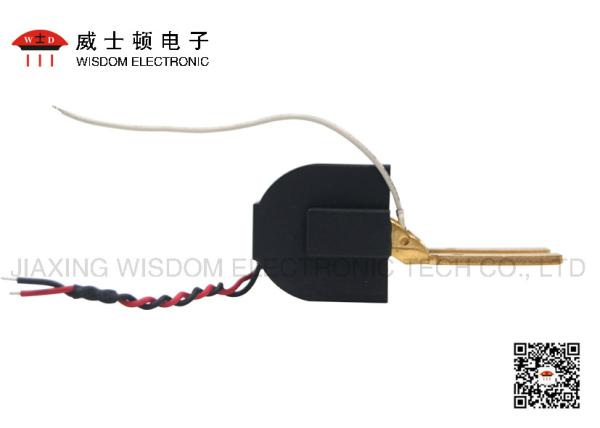

0.05 Accuracy Class One Phase Transformer , Busbar Connector Irregular Shape CT
0.05 Accuracy Class One Phase Transformer , Busbar Connector Irregular Shape CT
Specifications
Brand Name :
WSD
Model Number :
WSD-708D-U
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200000/day
Delivery Time :
14-21days
Packaging Details :
Cartons / Pallets
Max current :
40-100A
primary current :
5-10A
secondary current :
2-10mA
Accuracy class :
0.1
Application :
electricity meter
Product name :
1 phase transformer
Description

Single phase current transformer 0.05 accuracy class irregular shape CT with busbar connector CTs

Suitable for single-phase electricity meter as well as anti-tempering electricity meter

Compact and delicate appearance

Linear output current, high precision

Encapsulated with epoxy resion,with high insulation ability

It accords with IEC60044-1 0.05 class, 0.1 class, 0.2 class

Rated primary current Max primary current Rated secondary current Turn ratio Accuracy class DC component Shileding Load resistance
I p(A) I max(A) I s(mA) N (%) (%) (T) Rb
5 60 2 1:2500 0.05/0.1/0.2 ±3% unavailable 5Ω,10Ω,20Ω
5 60 2.5 1:2000 0.05/0.1/0.2 　
10 60 4 1:2500 0.05/0.1/0.2 ±3%
10 60 5 1:2000 0.05/0.1/0.2 　
10 60 10 1:1000 0.1/0.2 　
5 80 2 1:2500 0.1/0.2 ±3%
10 100 4 1:2500 0.1/0.2 ±3%
20 100 8 1:2500 0.1/0.2 ±3%
20 100 10 1:2000 0.1/0.2 　
　 　 　 　 　 　

Working temperature −40℃~ 85℃
Isolation voltage 4000Vrms, 1 Min, No breakdown, No arcing
Insulation resistance ≥1000MΩ
Operating temperature 50~60Hz
