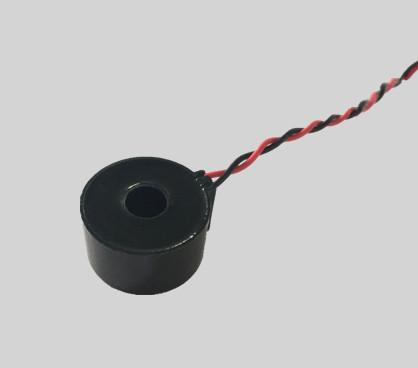

Waterproof Single Phase Current Transformer with Shrink Tube Lead Wire
Waterproof Single Phase Current Transformer with Shrink Tube Lead Wire
Specifications
Brand Name :
WSD
Model Number :
WSD-734
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200000/day
Delivery Time :
14-21days
Packaging Details :
Cartons / Pallets
Max current :
60-80A
Primary current :
5-10A
Secondary current :
2-5mA
Turns ratio :
Customized
Application :
electricity meter
Product name :
one phase transformer
Description

Single phase current transfromer waterproof CT 1 - phase typ current transformer with shrink tube lead wire

Suitable for single-phase electricity meter as well as anti-tempering electricity meter

Compact and delicate appearance

Linear output current, high precision

Encapsulated with epoxy resion,with high insulation ability

It accords with IEC60044-1 0.05 class, 0.1 class, 0.2 class

Parameters:

Rated primary current Max primary current Rated secondary current Turn ratio Accuracy class DC component Shileding Load resistance
I p(A) I max(A) I s(mA) N (%) (%) (T) Rb
5 60 2.5 1:2000 0.1/0.2 unavailable unavailable 5Ω,10Ω,20Ω
10 60 5 1:2000 0.1/0.2
10 60 10 1:1000 0.1/0.2
5 80 2.5 1:2000 0.1/0.2
10 80 5 1:2000 0.1/0.2
　 　 　 　 　
　 　 　 　 　
　 　 　 　 　
　 　 　 　 　
　 　 　 　 　
Working temperature −40℃~ 85℃
Isolation voltage 4000Vrms, 1 Min, No breakdown, No arcing
Insulation resistance ≥1000MΩ
Operating temperature 50~60Hz

Dimension:

Waterproof Single Phase Current Transformer with Shrink Tube Lead Wire
