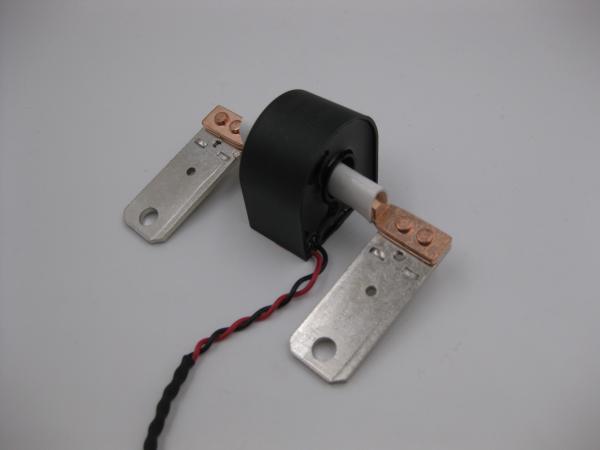

Compact Structure Single Phase CT High Current 200A Max with Shielding Case
Compact Structure Single Phase CT High Current 200A Max with Shielding Case
Specifications
Brand Name :
WSD
Model Number :
WSD-727-U
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200000/day
Delivery Time :
14-21days
Packaging Details :
Cartons / Pallets
Max current :
80-200A
Primary current :
10-30A
Secondary current :
5-15mA
Accuracy class :
0.1
Anti-magnetic :
Available
DC immunity :
Available
Description

Single phase current transfromer high current 200A Imax DCT with shielding case mini current trasnfromer

Suitable for single-phase electricity meter as well as anti-tempering electricity meter
Compact and delicate appearance
Linear output current, high precision
Encapsulated with epoxy resion,with high insulation ability
It accords with IEC60044-1 0.05 class, 0.1 class, 0.2 class

Rated primary current Max primary current Rated secondary current Turn ratio Accuracy class DC component Shileding Load resistance
I p(A) I max(A) I s(mA) N (%) (%) (T) Rb
5 60 2 1:2500 0.05/0.1/0.2 ±3% 300~500mT 5Ω,10Ω,20Ω
5 60 2.5 1:2000 0.05/0.1/0.2 　
10 60 4 1:2500 0.05/0.1/0.2 ±3%
10 60 5 1:2000 0.05/0.1/0.2 　
10 60 10 1:1000 0.1/0.2 　
15 200 5 1:3000 0.05/0.1/0.2 　
5 80 2 1:2500 0.1/0.2 ±3% unavailable
10 80 4 1:2500 0.1/0.2 ±3%
10 100 4 1:2500 0.1/0.2 ±3%
10 120 4 1:2500 0.1/0.2 ±4%
Working temperature −40℃~ 85℃
Isolation voltage 4000Vrms, 1 Min, No breakdown, No arcing
Insulation resistance ≥1000MΩ
Operating temperature 50~60Hz

Dimension:
Compact Structure Single Phase CT High Current 200A Max with Shielding Case
