Specifications
Brand Name :
WEIGU
Model Number :
35BYGH-TR
Certification :
RoHS
Place of Origin :
China
MOQ :
1unit
Price :
$45~65/unit
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000Units/month
Delivery Time :
7-30 work days
Packaging Details :
Standard export package, or can be customized
Type :
Linear Stepper Motor
Rated Voltage :
5-24V
Screw :
TR6 - TR8
Leads :
4
Step Angle :
1.8°
Insulation Resistance :
100MΩ (MIN.)
Dielectric Strength :
600VAC 1mA 1S
Description

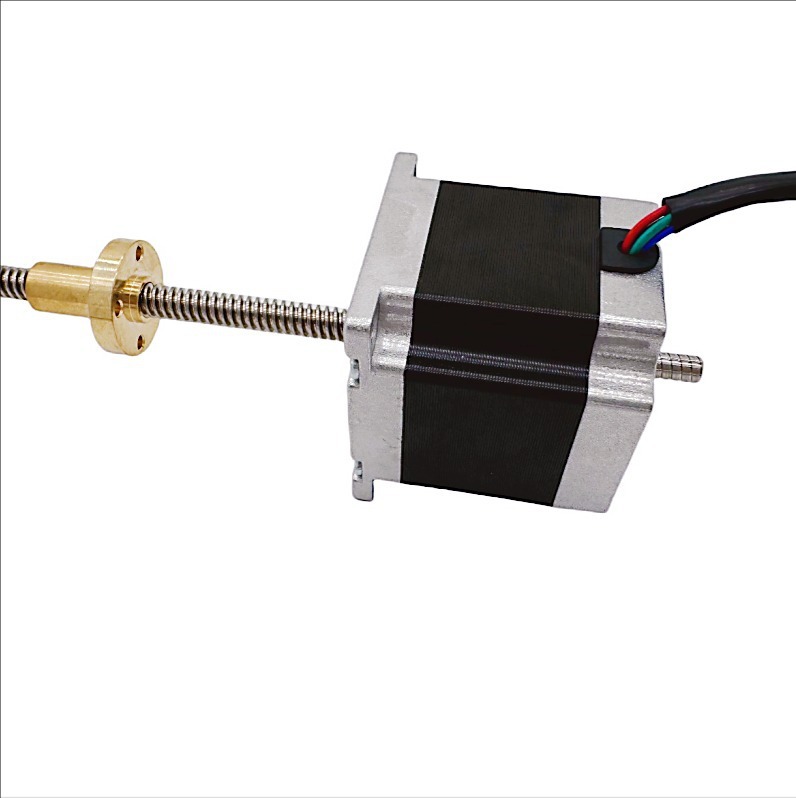

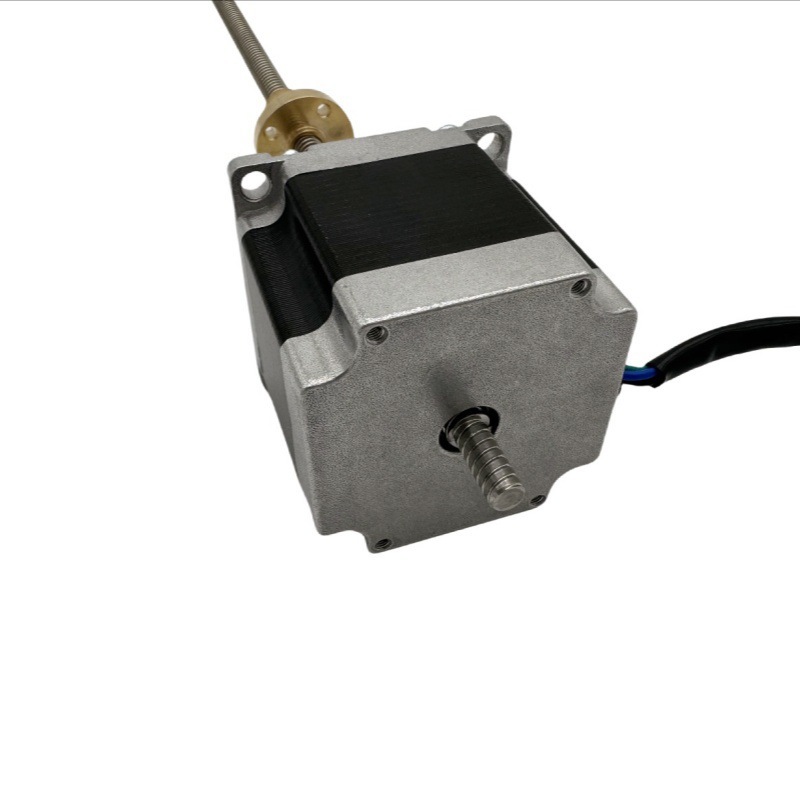

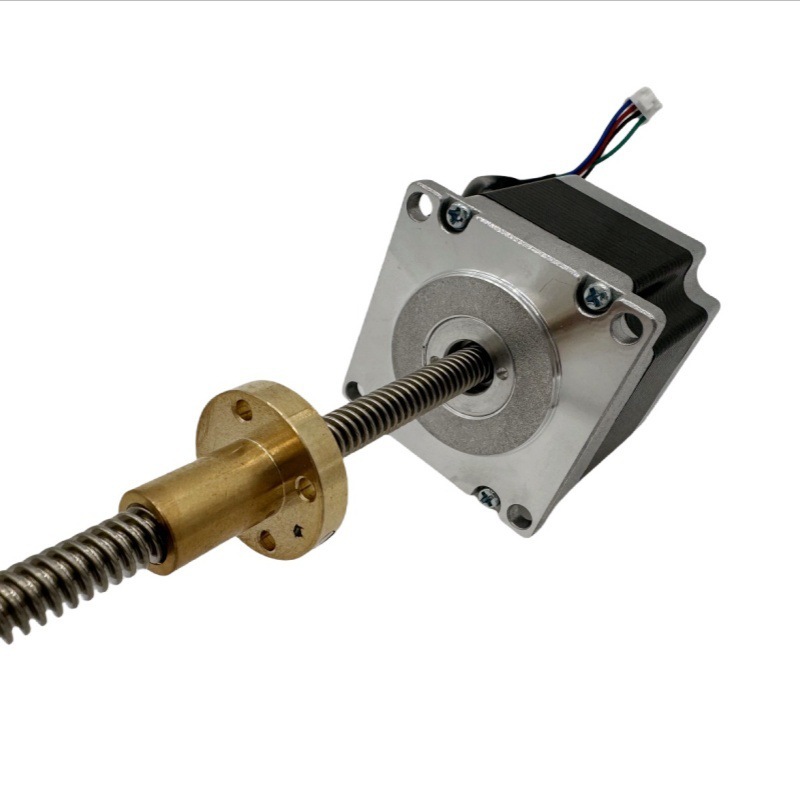

1.8° Step Angle NEMA14 – 35mm Linear Stepper with 0.6096mm Pitch Lead Screw for CNC Micro-Machining

The 1.8° Step Angle NEMA14 linear stepper motor, measuring 35mm, is engineered to excel in CNC micro-machining applications, paired with a high-precision 0.6096mm pitch lead screw. Its hybrid design merges the reliability of stepper technology with linear motion efficiency, ensuring ultra-fine positioning control critical for intricate machining tasks—from engraving tiny components to cutting precision parts.​
With a 1.8° step angle, it delivers exceptional angular resolution, translated by the 0.6096mm pitch lead screw into smooth, incremental linear movement—ideal for maintaining tight tolerances in micro-machining setups. The compact 35mm frame fits seamlessly into space-constrained CNC systems, while its robust construction ensures consistent performance under the demands of continuous operation.​
Whether used in small-scale CNC routers, micro-lathes, or precision cutting equipment, this motor balances power and precision, making it a go-to choice for manufacturers and hobbyists seeking reliable linear motion in CNC micro-machining workflows.​

Parameter sheet:

Motor type Hybrid stepper motor
Motor size 35mm (NEMA14)
Step angle 1.8°/step
Step length 0.003mm/step
Phase No. 2 phases
Phase resistance 1.8Ω±10%
Lead screw type P0.6096*1N
Lead scew length 55mm (Adjustable)

Screw rod Specification of lead screw:

Lead screw diameter(mm) Screw Lead (mm) Screw pitch(mm) Travel per step(mm) Lead Screw Diameter(mm) Screw Lead(mm) Screw Pitch(mm) Travel per step(mm)

TR8

 1 1 0.005

Tr6

2

1

0.01
2 2 0.1

4

1

0.02
3 1.5 0.015

6

1

0.03
4 2 0.02

12

2

0.06
8 2 0.04

10 2 0.05
12 2 0.06
