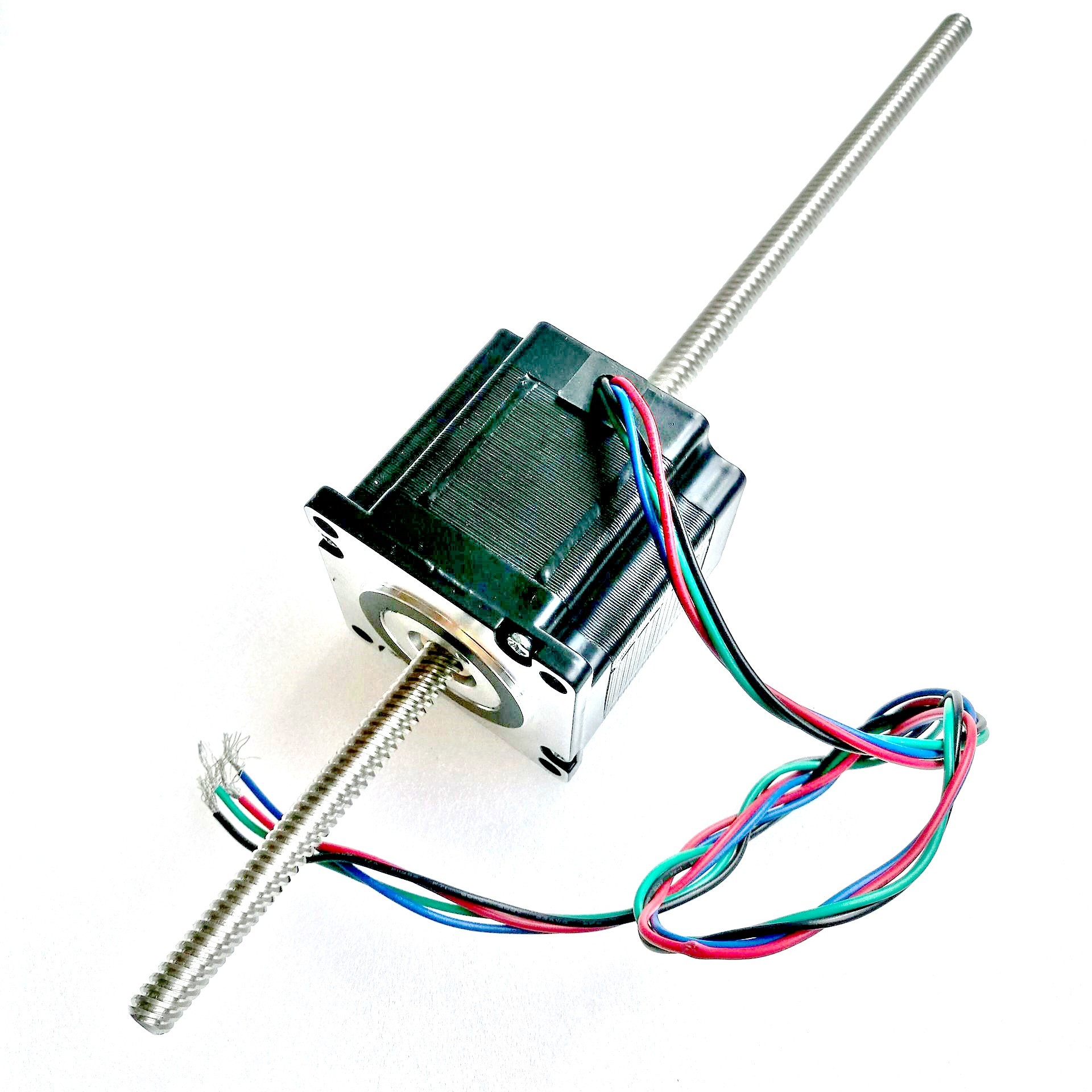

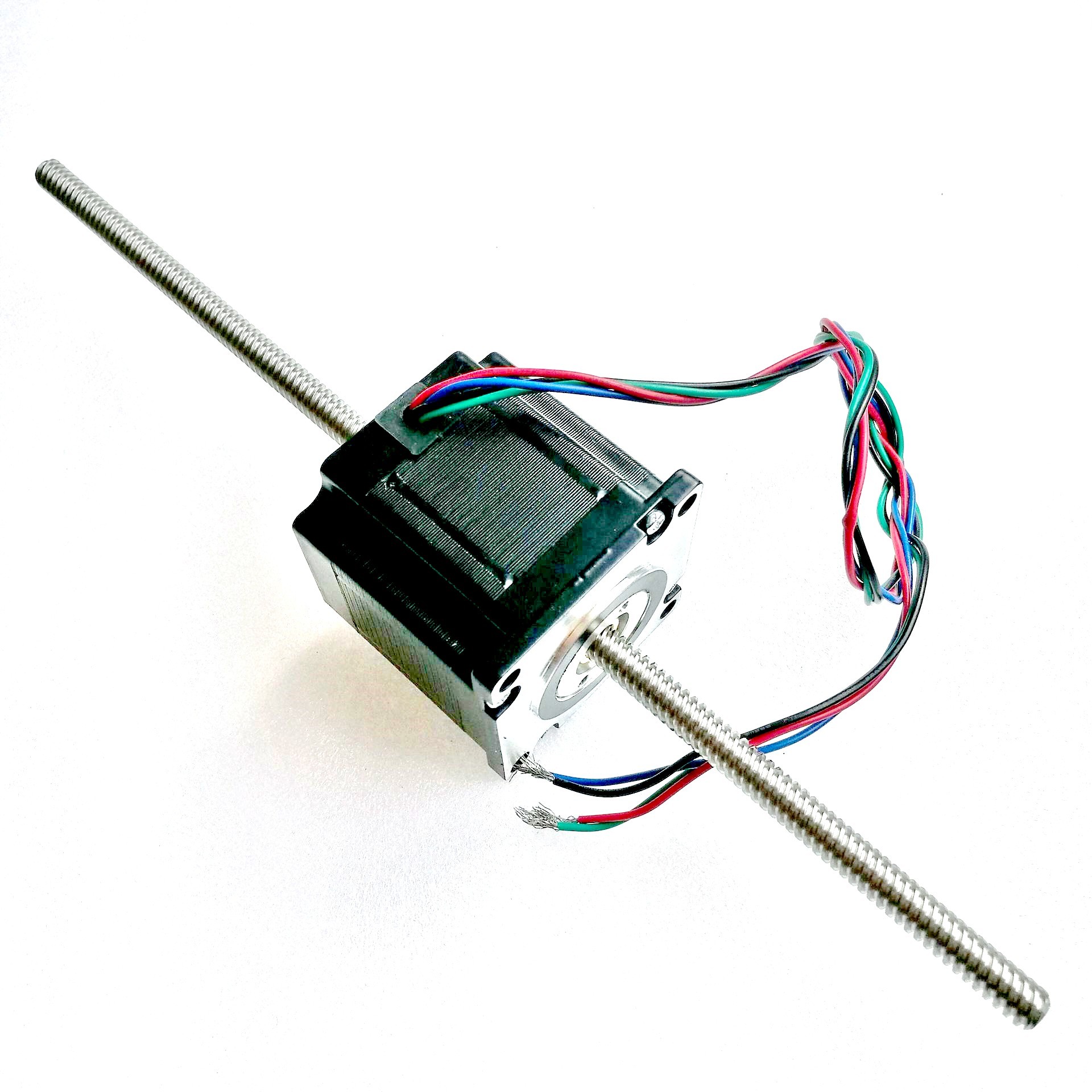

NEMA23 57mm Linear Stepper Motor Lead Screw Motor 1.8° Through Type For Industrial Automation
NEMA23 57mm Linear Stepper Motor Lead Screw Motor 1.8° Through Type For Industrial Automation
NEMA23 57mm Linear Stepper Motor Lead Screw Motor 1.8° Through Type For Industrial Automation
NEMA23 57mm Linear Stepper Motor Lead Screw Motor 1.8° Through Type For Industrial Automation
Specifications
Brand Name :
WEIGU
Model Number :
57BYGH-TR
Certification :
RoHS
Place of Origin :
China
MOQ :
1unit
Price :
$50~80/unit
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000Units/month
Delivery Time :
7-30 work days
Packaging Details :
Standard export package, or can be customized
Type :
Linear Stepper Motor
Rated Voltage :
5-24V
Screw :
TR8 - TR10
Leads :
4
Insulation Resistance :
100MΩ (MIN.)
Dielectric Strength :
600VAC 1mA 1S
Description

NEMA23 57mm Hybrid Linear Stepper - 1.8° Through Type Lead Screw Motor for Industrial Automation

This 57mm NEMA23 hybrid stepper motor features a through type lead screw, great for precise linear motion in industrial and automated setups like CNC machines or assembly lines.​
The screw lead controls linear speed, so you can get the right motion rate—fast or slow. It has a 41mm height for solid torque, and a taller motor means even more torque for heavy jobs.​
Not sure what you need? Tell us your required linear speed and thrust before ordering samples, and we’ll recommend the perfect setup. No guesswork, just a motor that fits your workflow.​
Ideal for robotics, material handling, and precision automation—reliable, adaptable, and built for accuracy.

Electrical Specification of nema 23 linear stepper motor:

Model No. Step Angle Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

 Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH N.m No. g.cm g.cm Kg
57BYGH41-2804 1.8 41 2.8 0.7 1.4 0.55 4 250 150 0.47
57BYGH51-2804 1.8 51 2.8 0.83 2.2 1.01 4 300 230 0.59
57BYGH56-2804 1.8 56 2.8 0.9 2.5 1.2 4 350 280 0.68
57BYGH64-2804 1.8 64 2.8 0.8 2.3 1 4 400 300 0.75
57BYGH76-2804 1.8 76 2.8 1.1 3.6 1.89 4 600 440 1.1

Screw rod Specification of lead screw:

Screw Diameter(mm) Screw Lead(mm) Screw Pitch(mm) Travel per step(mm) Screw Diameter(mm) Screw Lead(mm) Screw Pitch(mm) Travel per step(mm)
Tr8 1 1 0.005 Tr8 10 2 0.05
2 2 0.01 12 2 0.06
3 1.5 0.015 14 2 0.07
4 2 0.02
8 2 0.04
Tr10 2 2 0.01 Tr12 2 2 0.01
3 1.5 0.015 3 3 0.015
4 2 0.02 8 2 0.04
8 2 0.04 10 2 0.05
10 2 0.05
12 2 0.06

Mechanical Dimension:MM
