Specifications
Brand Name :
WEIGU
Model Number :
57BYGH-TR
Certification :
RoHS
Place of Origin :
China
MOQ :
1unit
Price :
$50~80/unit
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000Units/month
Delivery Time :
7-30 work days
Packaging Details :
Standard export package, or can be customized
Type :
Linear Stepper Motor
Rated Voltage :
5-24V
Screw :
TR8 - TR10
Leads :
4
Insulation Resistance :
100MΩ (MIN.)
Dielectric Strength :
600VAC 1mA 1S
Description

NEMA23 57mm Hybrid Linear Lead Screw Stepper Motor 1.8° Through Type Stepping Motor

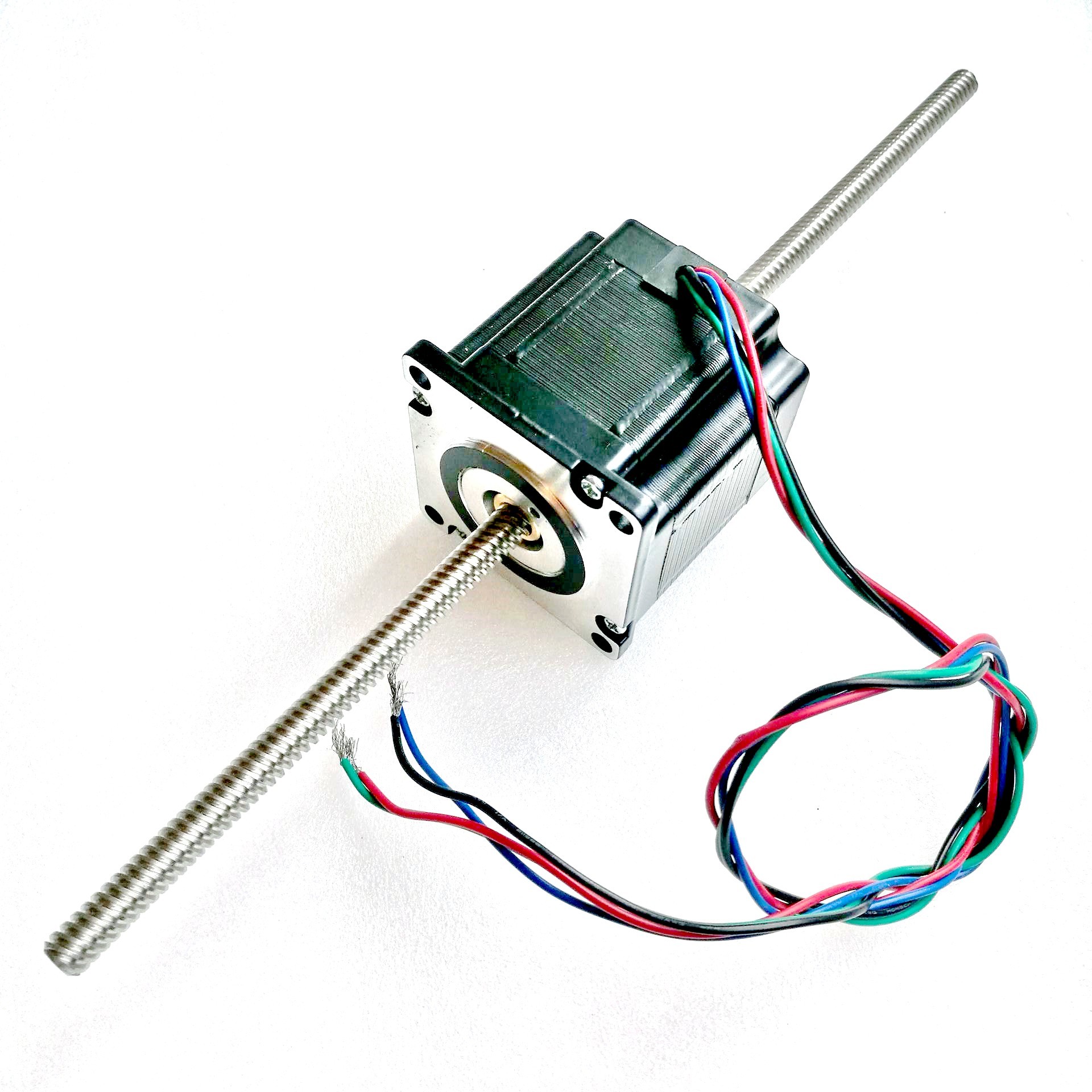

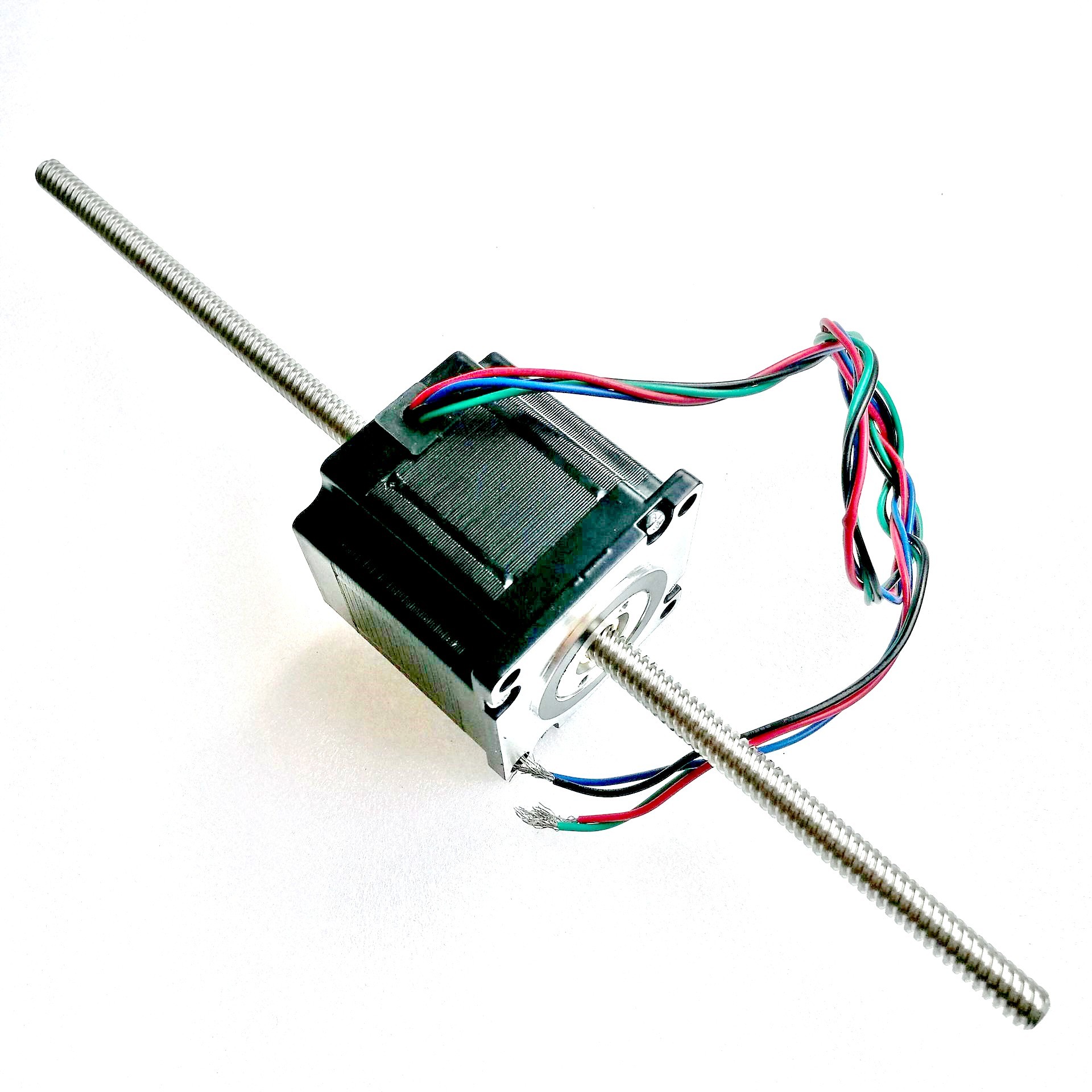

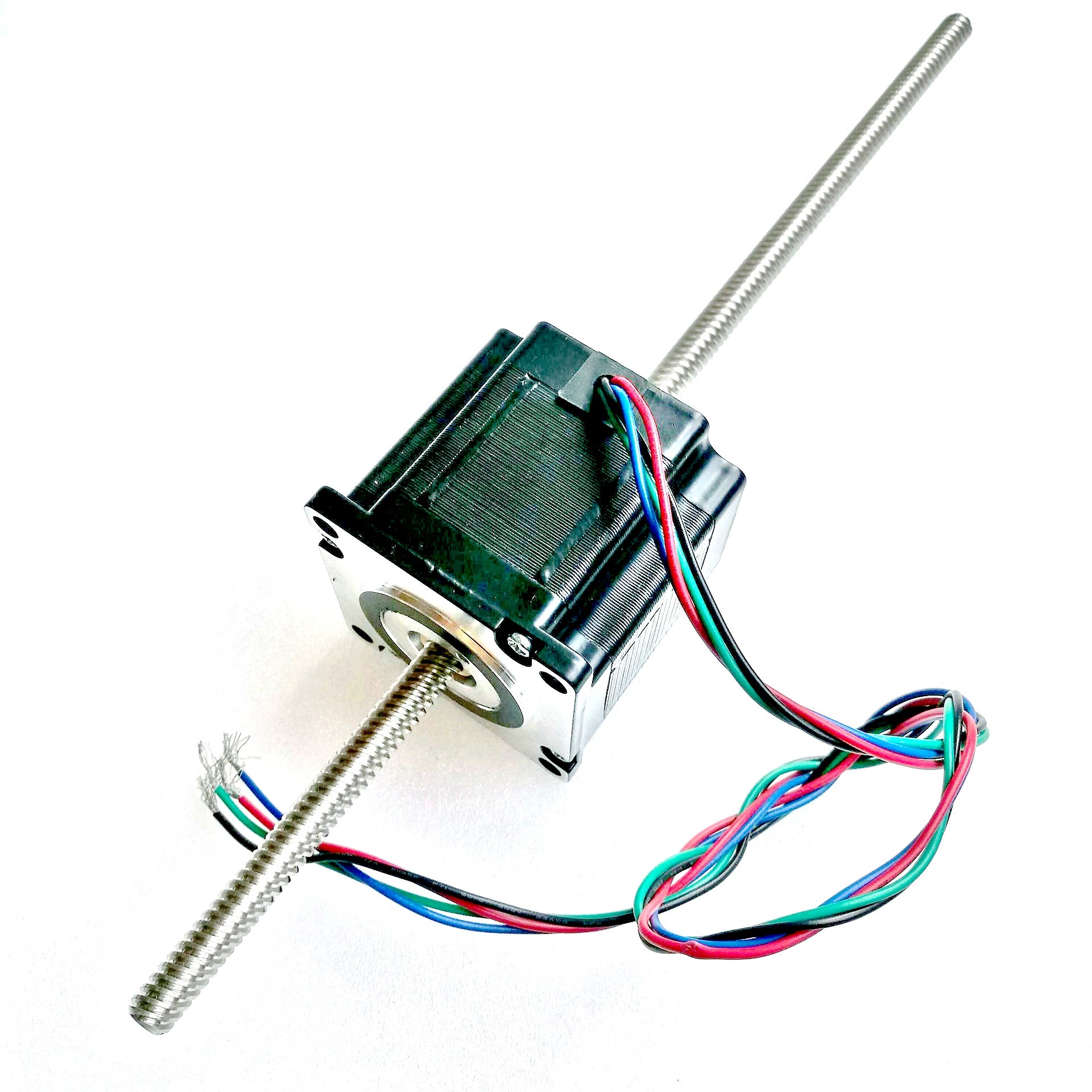

This is a 57mm size (NEMA23) hybrid stepper motor with through type lead screw .

Screw lead is related to motor’s linear speed.

Motor’s height is 41mm, and it’s related to motor’s torque, with bigger height, motor’s torque is higher.

Please confirm your required linear speed and thrust, before you order motor samples, we will recommend suitable motors with suitable lead screw type based on your requirement.

Electrical Specification of nema 23 linear stepper motor:

Model No. Step Angle Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

 Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH N.m No. g.cm g.cm Kg
57BYGH41-2804 1.8 41 2.8 0.7 1.4 0.55 4 250 150 0.47
57BYGH51-2804 1.8 51 2.8 0.83 2.2 1.01 4 300 230 0.59
57BYGH56-2804 1.8 56 2.8 0.9 2.5 1.2 4 350 280 0.68
57BYGH64-2804 1.8 64 2.8 0.8 2.3 1 4 400 300 0.75
57BYGH76-2804 1.8 76 2.8 1.1 3.6 1.89 4 600 440 1.1

Screw rod Specification of lead screw:

Screw Diameter(mm) Screw Lead(mm) Screw Pitch(mm) Travel per step(mm) Screw Diameter(mm) Screw Lead(mm) Screw Pitch(mm) Travel per step(mm)
Tr8 1 1 0.005 Tr8 10 2 0.05
2 2 0.01 12 2 0.06
3 1.5 0.015 14 2 0.07
4 2 0.02
8 2 0.04
Tr10 2 2 0.01 Tr12 2 2 0.01
3 1.5 0.015 3 3 0.015
4 2 0.02 8 2 0.04
8 2 0.04 10 2 0.05
10 2 0.05
12 2 0.06

Mechanical Dimension:MM
