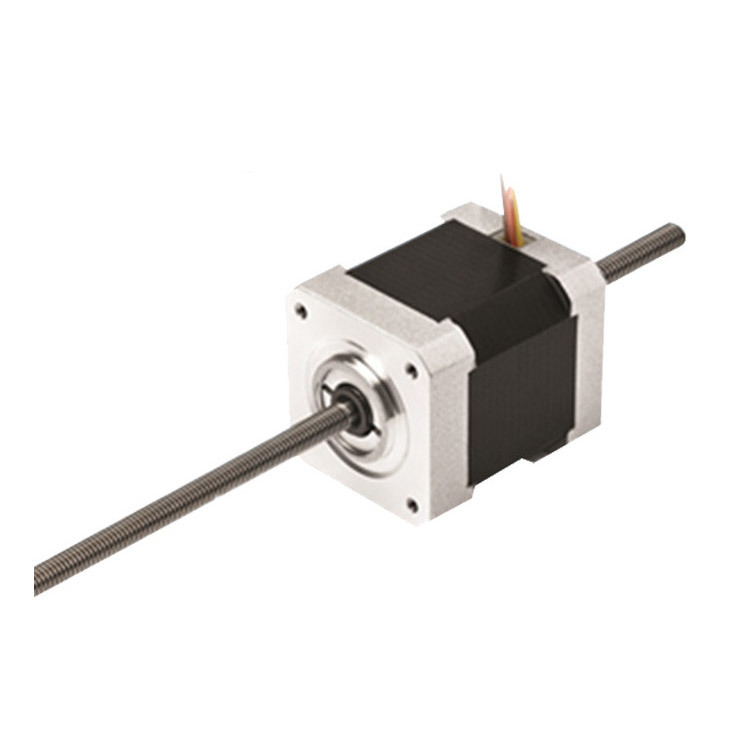

NEMA17 42mm 1.8° Linea Stepper Motor High Torque Tr6 Or Tr8 Hybrid Stepper Motor
NEMA17 42mm 1.8° Linea Stepper Motor High Torque Tr6 Or Tr8 Hybrid Stepper Motor
NEMA17 42mm 1.8° Linea Stepper Motor High Torque Tr6 Or Tr8 Hybrid Stepper Motor
NEMA17 42mm 1.8° Linea Stepper Motor High Torque Tr6 Or Tr8 Hybrid Stepper Motor
Specifications
Brand Name :
WEIGU
Model Number :
42BYGH
Certification :
RoHS
Place of Origin :
China
MOQ :
1Unit
Price :
$20~50/unit
Payment Terms :
T/T,D/P,Western Union,MoneyGram
Supply Ability :
100000 Units/year
Delivery Time :
15-30 work days
Packaging Details :
Standard export package in corrugated carton (Mass production).
Type :
Hybrid Linear Stepper Motor
Step Angle :
1.8°
Shaft Type :
Tr5,Tr6,Tr8,Tr10
Motor thickness :
34/40/48mm
Insulation Resistance :
100MΩ (MIN.)
Dielectric Strength :
600VAC 1mA 1S
Description

NEMA17 42mm 1.8° Linea Stepper Motor High Torque Tr6 or Tr8

This high-torque hybrid linear stepper motor is built to tackle demanding applications, combining the reliability of a NEMA17 frame with a compact 42mm design. Its 1.8° step angle ensures precise linear motion, making it ideal for tasks requiring accurate positioning—from industrial automation to heavy-duty DIY projects.​
What sets it apart is its high torque output, delivering the power needed to drive heavy loads or overcome resistance in rigorous workflows. Whether you’re operating conveyor systems, precision lifts, or automated machining tools, this motor maintains consistent performance under pressure.​
Choose between Tr6 (6mm diameter) and Tr8 (8mm diameter) trapezoidal lead screws to match your specific needs: Tr6 offers a streamlined profile for space-constrained setups, while Tr8 provides enhanced durability for high-stress applications. Both options ensure smooth, low-friction operation, reducing wear and extending service life.​
Perfect for users seeking a balance of power, precision, and flexibility, this linear stepper motor adapts seamlessly to diverse environments—from factory floors to custom robotics. Upgrade your system with a motor that delivers high torque without compromising on accuracy.

Design Layout (Unit:mm)

NEMA17 42mm 1.8° Linea Stepper Motor High Torque Tr6 Or Tr8 Hybrid Stepper Motor

Electrical Specification:

Model No.
Step Angle
Motor Length
Current/Phase
Resistance/Phase
Inductance/Phase
Holding Torque
Number of leads
Detent Torque
Rotor Inertia
(°)
(mm)
(A)
(Ω)
(mH)
(kg.cm)
(No.)
(g.cm)
g.cm2
42BYGH34-1334
0.9
34
1.33
2.1
2.5
2.2
4
120
34
42BYGH34-0406
0.9
34
0.4
24
15
1.6
6
120
34
42BYGH34-0956
0.9
34
0.95
4.2
2.5
1.6
6
120
34
42BYGH40-0406
0.9
40
0.4
30
30
2.6
6
150
54
42BYGH40-1684
0.9
40
1.68
1.65
3.2
3.6
4
150
54
42BYGH40-1206
0.9
40
1.2
3
2.7
2.9
6
150
54
42BYGH48-0406
0.9
48
0.4
30
25
3.1
6
260
68
42BYGH48-1684
0.9
48
1.68
1.65
2.8
4.4
4
260
68
42BYGH48-1206
0.9
48
1.2
3.3
2.8
3.17
6
260
68

Screw rod Specification:

Screw Diameter(mm)

Screw Lead(mm)

Screw Pitch(mm)

Travel per step(mm)

Screw Diameter(mm)

Screw Lead(mm)

Screw Pitch(mm)

Travel per step(mm)
Tr5 1 1 0.005 Tr8 8 2 0.04
2 1 0.01 10 2 0.05
Tr6 2 1 0.01 12 2 0.06
4 1 0.02 14 2 0.07
6 1 0.03 Tr10 2 2 0.01
12 2 0.06 3 1.5 0.015
Tr8 1 1 0.005 4 2 0.02
2 2 0.01 8 2 0.04
3 1.5 0.015 10 2 0.05
4 2 0.02 12 2 0.06
