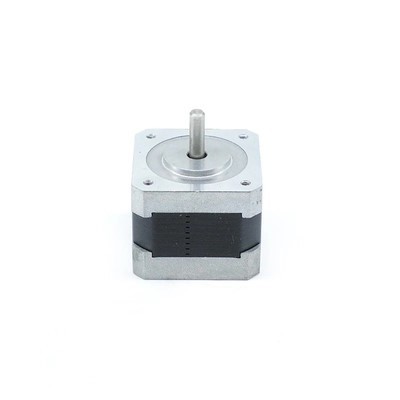

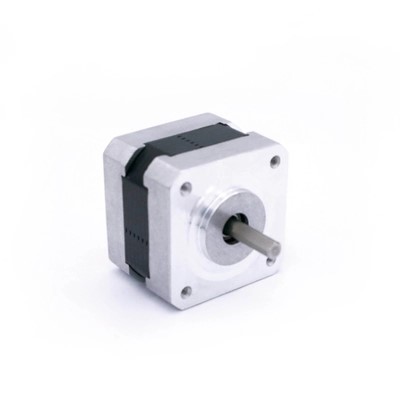

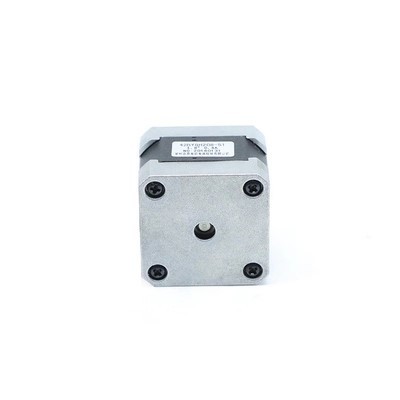

Customized 42mm 1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 Stepper Motor
Customized 42mm 1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 Stepper Motor
Customized 42mm 1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 Stepper Motor
Customized 42mm 1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 Stepper Motor
Customized 42mm 1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 Stepper Motor
Customized 42mm 1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 Stepper Motor
Specifications
Brand Name :
WEIGU
Model Number :
42BYGH
Certification :
RoHS
Place of Origin :
China
MOQ :
1unit
Price :
$5~10/unit
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10000Units/month
Delivery Time :
7-30 work days
Packaging Details :
Standard export package, or can be customized
Motor Type :
Stepper Motor Bipolar
Step Angle :
1.8deg
Wire :
4-Lead/6-Lead
Body Size :
34mm/40mm/48mm/60mm
Insulation Resistance :
100MΩ (MIN.)
Dielectric Strength :
600VAC 1mA 1S
Description

Nema 17 42mm 1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires

Hybrid stepper motor is a combination of variable reluctance and permanent magnet motor. The stator is electromagnetically stimulated like variable reluctance stepper motor, and the rotor of the stepper motor is axially magnetized like permanent magnet stepper motor. This stepper motor is an actuator that converts electrical pulses into angular displacement.

Genaral Specification:

Item

Specifications

Step Angle

1.8°

Step Angle Accuracy

±5%(full step,no load)

Resistance Accuracy

±10%

Inductance Accuracy

±20%

Temperature Rise

80℃max

Ambient Temperature

-20℃~+50℃

Insulation Resistance

100 MΩ Min. ,500VDC

Dielectric Strength

500VAC for 1minute

Shaft Radial Play

0.02Max. (450g-load)

Shaft Axial Play

0.08Max. (450g-load)

Max. radial force

28N (20mm from the flange)

Max. axial force

10N

Electrical Specification:

Model No.
Step Angle
Motor Length
Current/Phase
Resistance/Phase
Inductance/Phase
Holding Torque
Number of leads
Detent Torque
Rotor Inertia
(°)
(mm)
(A)
(Ω)
(mH)
(kg.cm)
(No.)
(g.cm)
g.cm2
42BYGH25-0404
1.8
25
0.4
24
36
1.8
4
75
20
42BYGH28-0504
1.8
28
0.5
20
21
1.5
4
85
24
42BYGH34-1334
1.8
34
1.33
2.1
2.5
2.2
4
120
34
42BYGH34-0406
1.8
34
0.4
24
15
1.6
6
120
34
42BYGH34-0956
1.8
34
0.95
4.2
2.5
1.6
6
120
34
42BYGH40-0406
1.8
40
0.4
30
30
2.6
6
150
54
42BYGH40-1684
1.8
40
1.68
1.65
3.2
3.6
4
150
54
42BYGH40-1206
1.8
40
1.2
3
2.7
2.9
6
150
54
42BYGH48-0406
1.8
48
0.4
30
25
3.1
6
260
68
42BYGH48-1684
1.8
48
1.68
1.65
2.8
4.4
4
260
68
42BYGH48-1206
1.8
48
1.2
3.3
2.8
3.17
6
260
68
42BYGH60-0406
1.8
60
0.4
30
39
6.5
6
280
102
42BYGH60-1704
1.8
60
1.7
3
6.2
7.3
4
280
102
42BYGH60-1206
1.8
60
1.2
6
7
5.6
6
280
102
Above only for representative products, products of special request can be made according to the customer request.

Mechanical Dimension:MM

Customized 42mm 1.8 Degree Hybrid Stepper Motor 4 Leads 6 Wires Nema 17 Stepper Motor

Stepper Motor Applications

  • As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
  • They are used in numeric control of machine tools.
  • Used in tape drives, floppy disc drives, printers and electric watches.
  • The stepper motor also use in X-Y plotter and robotics.
  • It has wide application in textile industries and integrated circuit fabrications.
  • The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
  • These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
  • Stepper motors of microwatts are used in the wrist watches.
  • In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.
