Nema 23 57mm Hybrid Stepping Motor 6 Lead 1.2 Degree 0.68 NM Dc 5V

Hybrid stepper motor is a combination of variable reluctance and permanent magnet motor. The stator is electromagnetically stimulated like variable reluctance stepper motor, and the rotor of the stepper motor is axially magnetized like permanent magnet stepper motor. This stepper motor is an actuator that converts electrical pulses into angular displacement.

57BYGH series is a type of 3 phase stepper motor, the step angle can be made as 0.6°or 1.2°. The lead wire number is 6. It has a high torque output of 0.68 Nm

Genaral Specification:

Item

Specifications

Step Angle

1.2°

Step Angle Accuracy

±5%(full step,no load)

Resistance Accuracy

±10%

Inductance Accuracy

±20%

Temperature Rise

80℃max

Ambient Temperature

-20℃~+50℃

Insulation Resistance

100 MΩ Min. ,500VDC

Dielectric Strength

500VAC for 1minute

Shaft Radial Play

0.02Max. (450g-load)

Shaft Axial Play

0.08Max. (450g-load)

Holding Torque (N.m)

0.68N.m

Electrical Specification:

Model No. Step Angle
(°)		 # of Leads Voltage
(V)

Current

/Phas

Resistance

/Phase

Inductance

mH/Phase

Holding Torque

(Kg.cm)

Motor Length

(mm)

 Mass
(KG)
57BYGH41-001 1.2 6 3.12 2.4 3.4 4.0 4.0 41 0.45
57BYGH56-002 1.2 6 5.28 2.4 2.2 2 7.0 56 0.75

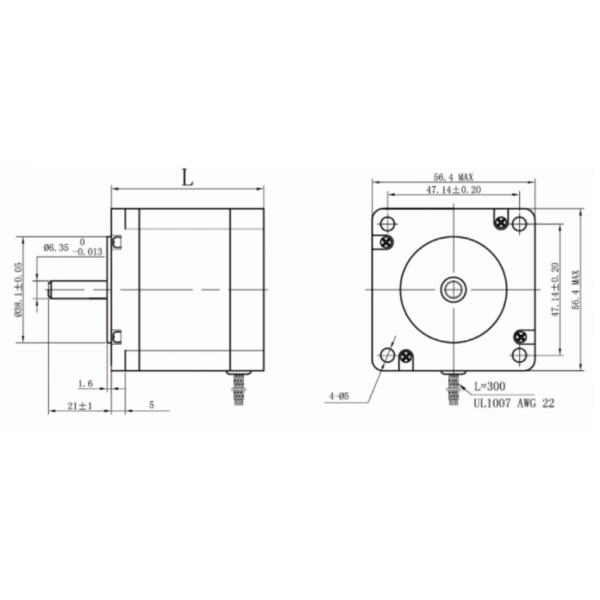

Drawing of 57BYGH56 stepper motor:

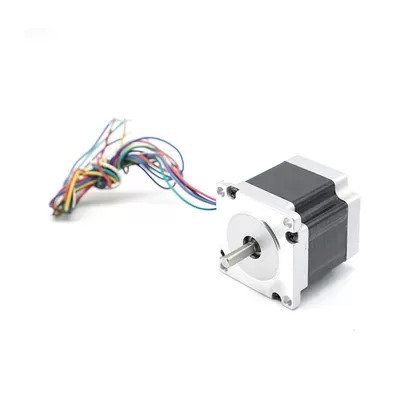

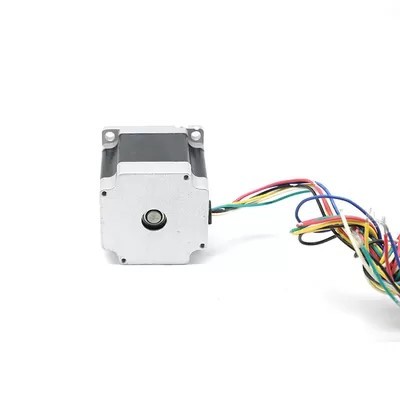

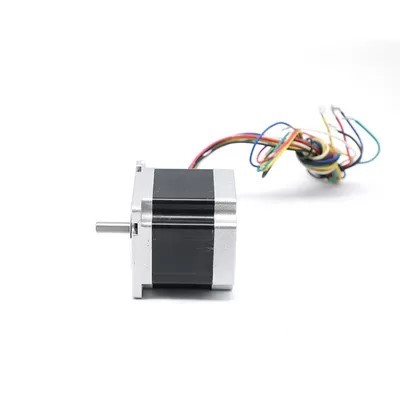

Nema 23 57mm Stepper Motor Hybrid 6 Lead 1.2 Degree 0.68 NM 5V DC Stepper Motor

Stepper Motor Applications

  • As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
  • They are used in numeric control of machine tools.
  • Used in tape drives, floppy disc drives, printers and electric watches.
  • The stepper motor also use in X-Y plotter and robotics.
  • It has wide application in textile industries and integrated circuit fabrications.
  • The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
  • These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
  • Stepper motors of microwatts are used in the wrist watches.
  • In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.
