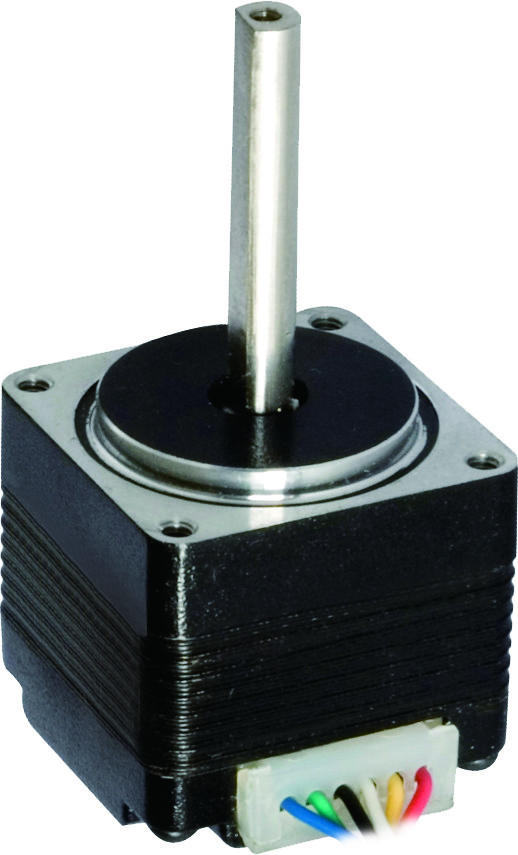

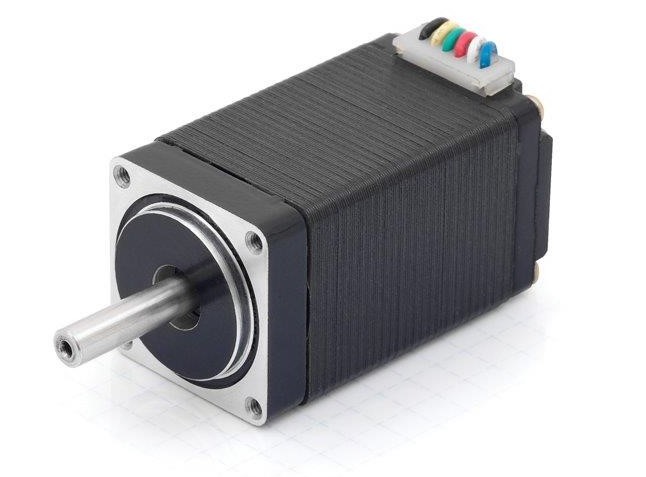

Nema11 28mm DC Small Hybrid Servo Motor 1.8° Step Angle In High Working Efficiency
Nema11 28mm DC Small Hybrid Servo Motor 1.8° Step Angle In High Working Efficiency
Nema11 28mm DC Small Hybrid Servo Motor 1.8° Step Angle In High Working Efficiency
Nema11 28mm DC Small Hybrid Servo Motor 1.8° Step Angle In High Working Efficiency
Specifications
Brand Name :
WEIGU
Model Number :
28BYGH
Certification :
RoHS
Place of Origin :
China
MOQ :
1unit
Price :
US$10~US$15
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10000pcs/month
Delivery Time :
7-30 work days
Packaging Details :
Standard export package, or can be customized
Insulation Resistance :
100MΩ (MIN.)
Dielectric Strength :
600VAC 1mA 1S
Description

Hybrid stepper motor is a combination of variable reluctance and permanent magnet motor. The stator is electromagnetically stimulated like variable reluctance stepper motor, and the rotor of the stepper motor is axially magnetized like permanent magnet stepper motor. This stepper motor is an actuator that converts electrical pulses into angular displacement.

Genaral Specification:

Item Specifications
Step Angle 1.8°
Step Angle Accuracy ±5%(full step,no load)
Resistance Accuracy ±10%
Inductance Accuracy ±20%
Temperature Rise 80℃max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100 MΩ Min. ,500VDC
Dielectric Strength 500VAC for 1minute
Shaft Radial Play 0.02Max. (450g-load)
Shaft Axial Play 0.08Max. (450g-load)
Max. radial force 28N (20mm from the flange)
Max. axial force 10N

Electrical Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Rotor Inertia

Motor

Weight
( °) (L)mm A Ω mH g.cm No. g.cm Kg
28BYGH32-0674 1.8 32 0.67 5.6 3.4 600 4 9 0.11
28BYGH32-0956 1.8 32 0.95 2.8 0.8 430 6 9 0.11
28BYGH45-0956 1.8 45 0.95 3.4 1.2 750 6 12 0.14
28BYGH45-0674 1.8 45 0.67 6.8 4.9 950 4 12 0.14
28BYGH51-0956 1.8 51 0.95 4.6 1.8 900 6 18 0.2
28BYGH51-0674 1.8 51 0.67 9.2 7.2 1200 4 18 0.2

Dimensions:(mm)

Nema11 28mm DC Small Hybrid Servo Motor 1.8° Step Angle In High Working Efficiency

Stepper Motor Applications

  • As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
  • They are used in numeric control of machine tools.
  • Used in tape drives, floppy disc drives, printers and electric watches.
  • The stepper motor also use in X-Y plotter and robotics.
  • It has wide application in textile industries and integrated circuit fabrications.
  • The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
  • These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
  • Stepper motors of microwatts are used in the wrist watches.
  • In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.
